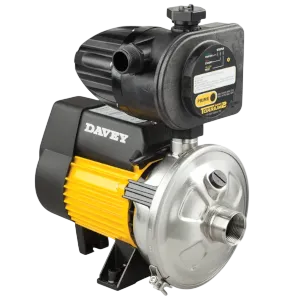

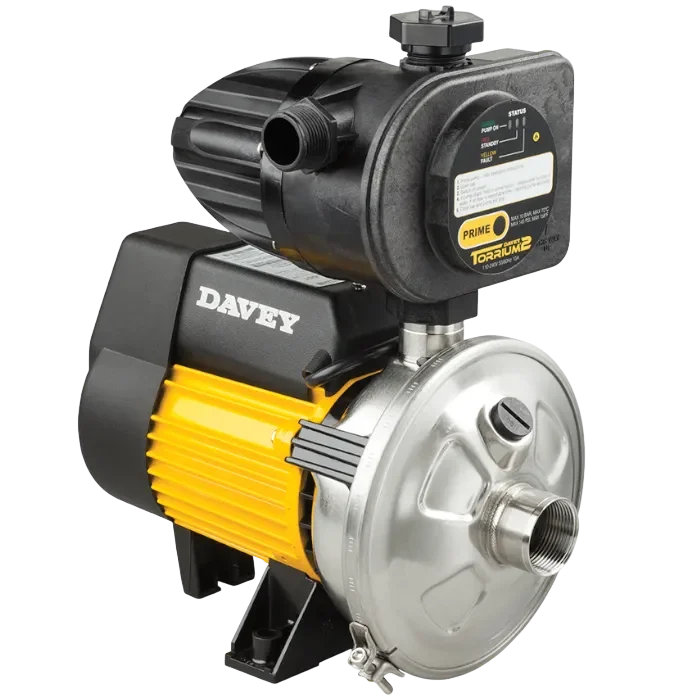

Davey's HP65-06T Horizontal Pressure Water Pump With Torrium2 Controller
Key features:
- Standard automatic pressure system type.
- Maximum flow up to 100 lpm.
- Suitable for smaller households (2-4 shower heads with 4-7 pipes).
- For showering, running taps, & garden use.
- 12 months warranty for pump, motor & controller.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classification:
Overview of Davey's HP65-06T Horizontal Pressure Water Pump With Torrium2 Controller
There is nothing more frustrating than turning on the shower only to find the water pressure fading away, or opening a tap to little more than a disappointing trickle. Designed to keep water moving with the pressure your household needs, Davey’s HP65-06T Horizontal Pressure water pump delivers reliable water pressure whenever you need it. Twin-stage impellers power the HP pump, providing a consistent flow of pressurised water across everyday household applications. From a morning shower or kitchen tap to outdoor sprinklers, water can be efficiently supplied throughout a home, townhouse or two-storey residence.
Reliable water pressure is about more than performance; it helps make everyday life more comfortable. The HP name stands for Horizontal Pressure, reflecting the pump’s space-conscious horizontal design and its ability to boost water pressure efficiently. With its compact footprint, the HP65-06T is well suited to residential plumbing installations, while robust construction helps ensure dependable performance over time.
Built with stainless-steel construction and corrosion-resistant materials, the pump is designed to withstand demanding water-supply environments. Whether water is supplied from the mains, a rainwater tank or a rural supply, the HP series is designed to provide reliable pressure when household demand calls for it. The technology works hard, but it does not need to be heard. Quiet operation is delivered by the centrifugal pump, allowing it to blend naturally into the home while the water flow required for showers, taps and other household fixtures is maintained.
Model Range And Specification Differences
| Water Pump Model: | Output Power (kW) | Optimum Flow Rate (LPM) |
|---|---|---|
| HP45-05T | 0.55 | 45 |
| HP65-06T | 0.6 | 65 |
| HP85-08T | 0.8 | 85 |
Davey’s HP65-06T Horizontal Pressure electropump range has been developed in multiple configurations, giving homeowners the flexibility to select a model that aligns with their specific water supply requirements and performance expectations.
While every model is built around the same robust engineering principles, each pump is distinguished by its motor power and impeller configuration. These variations enable the range to deliver different levels of flow and pressure, making it easier for homeowners to select the right pumping solution for their home’s specific demands.
Whether you need reliable pressure for everyday household use or greater water delivery across multiple outlets, there is a Horizontal Pressure model engineered to meet the requirements of your application.

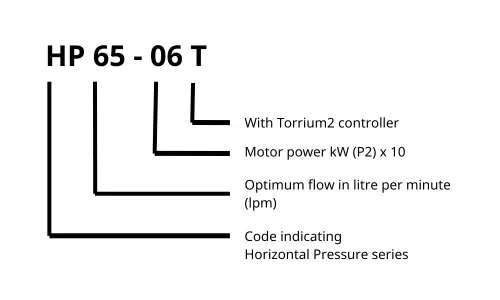

Method of Identification
Davey Water Products uses a structured identification code across its pump ranges, enabling each product to be accurately identified and documented throughout its supply, installation, servicing and replacement-parts lifecycle.
For the HP Horizontal Pressure water pump series, this coding system communicates key information about the pump’s technical performance and system configuration. By decoding the identification sequence, engineers, distributors, service technicians and end-users can quickly identify the specifications and configuration of a particular model, helping ensure the correct product, components and service requirements are selected.
For the HP65-06T, the identification code begins with:
1. An acronym for the pump family, represented by HP, which stands for Horizontal Pressure.
2. 65 represents the optimum flow rate of 65 litres per minute (lpm).
3. “06” indicates the motor’s output stage of 0.6 kW.
4. The final alphabetical suffix, T, refers to the Torrium2 controller, which provides constant pressure performance and includes dry-run protection.
As an example, the code HP65-06T identifies a Horizontal Pressure pump with an optimum flow rate of 100 lpm, a 0.6 kW motor output, and Torrium2 integration.
Attachment
Pressure Controller
Every Davey HP Horizontal Pressure water pump is equipped with a Torrium2 controller, enhancing the system beyond the capabilities of a conventional electropump. By intelligently responding to changing household water demand, Torrium2 helps maintain consistent pressure and dependable water flow throughout the home.
When a tap or shower is turned on, the controller responds quickly to provide the required water pressure. Water hammer is also minimised, while potential leaks within the domestic plumbing system can be detected. In addition, dry-run protection is provided to help safeguard both the pump and the household water supply system.
Designed with simplicity in mind, Torrium2 uses LED indicators to make the system status easy to monitor at a glance. Intelligent operation, system protection and everyday convenience are brought together in one integrated pressure-control solution.
With Torrium2 working behind the scenes, the Davey HP series delivers more than pressurised water. Smarter control is built into the system, while dependable performance helps provide the consistent water pressure and flow needed for the modern home.
Pressure Tank
The Davey HP Horizontal Pressure pump is supplied ready to operate with its Torrium2 controller, while system performance can be further enhanced by adding a pressure tank.
A pressure tank provides a stored reserve of pressurised water within the plumbing system. Inside the tank, an air pocket works alongside the stored water to help maintain system pressure and deliver a more stable water supply as household demand changes.
By reducing how frequently the pump needs to start and stop, a pressure tank can help minimise pump cycling and reduce unnecessary mechanical wear. This can contribute to an extended pump service life while helping maintain smoother, more consistent water pressure throughout the household.
The result is a pressure system that combines reliable pump performance with greater pressure stability and improved operating efficiency, providing an ideal solution for homes where consistent water delivery is essential.
Mechanical Pressure Switch
The Davey HP Horizontal Pressure Pump can also be configured with a conventional pressure switch system as an alternative to Torrium2 control. A pressure switch continuously monitors the water pressure within the pipeline and automatically controls pump operation. When system pressure drops below the preset cut-in pressure, the pump is activated. Once pressure rises to the designated cut-out pressure, the pump switches off.
This straightforward control method has been used for decades across residential, agricultural and water-supply applications, offering a familiar and proven approach to automatic pump operation. For installations where simple, pressure-based control is preferred, a pressure switch provides a practical alternative for managing the HP pump’s operation.
Certification
The Davey HP Horizontal Pressure water pump carries recognised certification that reflects Davey’s commitment to product quality, safety and engineering standards. More than technical credentials, these certifications give customers, installers and distributors added confidence that the pump has been assessed against established safety and performance requirements.
For international markets, certification also plays an important role in regulatory compliance. By meeting applicable standards, the HP Horizontal Pressure pump can be supplied and installed across regions where those standards are recognised or accepted. This supports Davey’s position as a manufacturer of dependable water-management solutions for residential applications.
TÜV SÜD: The HP Horizontal Pressure water pump is TÜV SÜD certified, providing independent verification against applicable requirements for electrical safety, mechanical performance and material characteristics.
Key components, including the TEFC motor and stainless-steel pump construction, are assessed as part of the certification process to verify that they meet the relevant safety requirements for their intended application.
With TÜV SÜD certification, the Davey HP Horizontal Pressure pump combines efficient water-pressure performance with independently assessed safety and quality standards, giving homeowners, installers and distributors greater confidence in the system they choose.
Volute
The Davey HP Horizontal Pressure pump is built with a stainless-steel housing, delivering strong corrosion resistance and helping protect the pump in demanding household water-supply environments. This durable construction supports reliable performance while helping the pump withstand the conditions associated with everyday water use.
Inside the pump, carefully engineered components work together to optimise water movement and support dependable performance. Each component is designed to contribute to efficient operation, helping ensure consistent water delivery when household demand calls for it.
TEFC Motor
The Davey HP Horizontal Pressure pump is supplied ready to operate with its Torrium2 controller, while performance can be further enhanced by adding a pressure tank to the system.
A pressure tank provides a stored reserve of pressurised water within the plumbing system. A pocket of air inside the tank works with the stored water to help maintain system pressure, providing a more stable water supply as household demand changes.
By reducing the frequency at which the pump starts and stops, the pressure tank can help minimise pump cycling and reduce unnecessary mechanical wear. This can contribute to a longer pump service life while delivering smoother, more stable pressure throughout the household.
Proven Flow And Pressure For Everyday Use
Performance is at the heart of the Davey HP Horizontal Pressure water pump. With a maximum flow rate of up to 140 litres per minute, the pump is engineered to meet demanding household applications, including multiple showers, taps and garden irrigation outlets operating simultaneously.
With a maximum head of 33 metres, the HP series can deliver pressurised water across multi-level residential properties, including double-storey homes. A maximum system pressure of 450 kPa provides the pressure capacity required to support consistent water delivery throughout the household.
The horizontal-pressure centrifugal pump is designed to handle water temperatures of up to 50°C, making it suitable for a range of domestic water-supply applications, including bathrooms and warm tank water systems. It can also operate in ambient temperatures of up to 50°C, making it well suited to installations in warmer climates when operated within the specified operating conditions.
A suction lift of up to 6 metres provides greater flexibility when household plumbing layouts are designed, while the pump’s suction-side performance is engineered to help minimise cavitation and support efficient, reliable operation.
Together, these capabilities give the HP Horizontal Pressure pump the versatility needed to address a broad range of residential water-pressure requirements.
The real value of the HP series can be experienced throughout the home.
In the bathroom, stronger and more consistent water flow can enhance the shower experience. In the kitchen, reliable pressure helps deliver water efficiently to taps and appliances. Outdoors, the pump provides the water delivery required for garden hoses, sprinklers and irrigation systems.
Its capabilities extend beyond conventional residential applications. Depending on the specific model and installation requirements, the HP series can also support rural water supply and small-scale agricultural applications, providing a versatile pumping solution for locations where dependable water pressure is essential.
From everyday household use to more demanding water-supply applications, the Davey HP Horizontal Pressure pump is engineered to deliver reliable flow, strong pressure and dependable performance where it matters most.
Included In The Box
HP Horizontal Pressure Water Pump – HP65-06T
Torrium2
User Manual
Proof of Purchase
12 Months of Manufacturer Warranty
