Best-Selling Household Pumps
The residential collection of water pumps arranged specifically to the number of storeys available, this is to prevent water hammer (hydraulic shock) from occuring and damaging your housing’s piping system.
Water Pump For House In Grouped Product View
Water Pump For House In Individual Product View
DynaDrive Inverter Water Pump

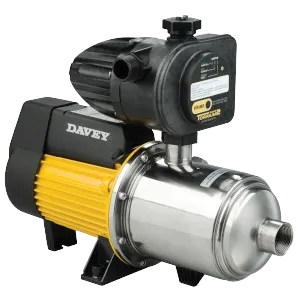

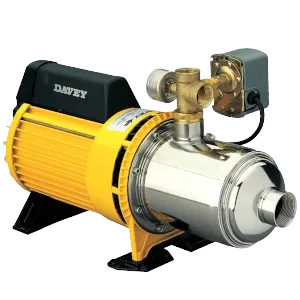

HM Horizontal Multistage Water Pump
HP Horizontal Pressure Water Pump
DynaJet Single Stage Water Pump With Torrium2
DynaJet Single Stage Water Jet Pump With Pressure Switch

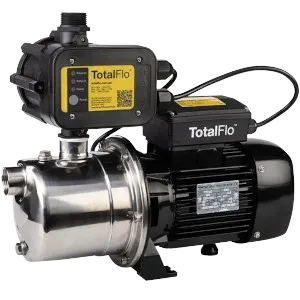

TotalFlo Water Pump
Garden System Water Pump
Water Pump For House by Davey
The whole nine yards of household water pumps are found assorted here, and Davey Malaysia meant the full-range of it. Categorised accordingly for distributors, merchant dealers and end consumers alike, by hindsight every water pump for house arrangement is the most sought-after inventory found regardless of the manufacturer. This is because each household water pumps (and sometimes, in multiples) are needed to pressurise every single homes, and each accommodation will have their existing and old housing pump be replaced over time. Whether through wear and tear, or running the centrifugal pump into obsolete through the numerous cycles, every family unit are eventually bound to give way for a brand-new pump.
The varieties stated are prepared and sorted out by Davey Malaysia’s mechanical engineers. With our specific centrifugal pumps for houses, you can now select the right pressurisation system so your place of residence becomes filled with the accurate hydration output, or, expand your retail line of water pump inventories by becoming a part of Davey Malaysia’s list of authorised dealers! Whichever is the case, we’re prepared to fulfill our mission by empowering healthy, safe water environment for all levels of pump consumption.
Housing Hydration For All Sizes
As Davey Malaysia breaks down each water pump for houses into individual grouping, this is tended towards observable sizes of the local estates found. Because of that, very specialised development of housing pump becomes introduced – having different horsepower from 0.5 HP or even higher, and from there, each specific product are fitted to the number of floors available. The outcome for Davey’s range of water pump for house diversity is that it fits up to 4 storey – depending on the pick.
- Single Storey: Davey’s smaller range of TotalFlo centrifugal pump is designed to be both economical while being capable of providing the required force needed for the gush. This is the sole model in all of the specialised water pump for house that is built for the single deck.
- Water Pump For 2 Storey House: The mid range in all of Davey’s housing pumps are probably the most readily abundant that’s ever bought by our regional distributors and also end consumers. This is because the average terrace housing across Malaysia itself mainly comprise of double storey design, and this requires a moderately powerful centrifugal pump to necessitate the dampening. Among the range currently accessible, Davey’s signature DynaDrive inverter water pump, to our HM series of the Horizontal Multistage pump, to the higher end of TotalFlo, and even the HP water pump series or DynaJet can be used for the most designed habitation.
- Water Pump For 3-4 Storey House: With a property structure going as high as 3 floors and up to 4, this spells an immediate requirement towards using the larger introduction of water pump for houses. For the premium variant, the DynaDrive centrifugal pump with a built-in variable-frequency drive (VFD), the larger HM270 type of the Horizontal Multistage pump, HP85 and also X90 DynaJet is capable of supporting this intensity of infrastructure.
- Other Household Water Pumps: Despite it being a section compiling all water pumps for the house, it must be mentioned that the small backyard or garden, and even basements (although rare in Malaysia) can be a part of the household architecture. Hence, for such a unique circumstance, Davey Water Products Pty Ltd have featured the Garden System to irrigate grasses and shrubs, as well as having the Sump Pump variation of TotalFlo to be drawing up liquids trapped in one’s basement.
Electric-based
All Davey’s water pump for house assortment are electrically-powered. This is because the modern form of engineering has been mechanised by voltaic principles and introduction, replacing that of traditional house pump that requires actionable force in order to run. The electricity sent through will be converted from electrical to mechanical energy, and subsequently into centrifugal force in any household water pump, and because of this, the modern adaptation of such pressure system is also known as ‘electropumps‘.
The circuitry is initiated from a connection point of a plug, which is then placed onto the socket, where current will first enter the water pump for house’s engine. Also known as the TEFC motor compartment, this is where energy transitioning interchanges from galvanic essence to mechanical energy state. As the shaft is the only component found that links from the engine to the rest of the home-specialised pump (where it would go through the gasket and backplate), the shaft would spin which rotates other machinery parts.
Automatic Pump By Design
Whenever a hydration is needed, the moment the tap becomes run, all of Davey’s water pump for house would automatically activate on its own in order to create pressure. It is automated because of each pump’s ability to detect a drop in demand levels within the hydraulic circuit. When it does, the centrifugal pump for house would re-enable the take-in of water supply by the Malaysian state provider such as Air Selangor (also known as SYABAS), Ranhill SAJ, Penang Water Supply Corporation or others, the same way as water is being flushed out of the discharge outlet to ensure the continuum of hydration flow. This is also to retain the dynamics of net positive suction head (NPSHr), otherwise, plain air would enter the piping which can cause unnecessary cavitation upon the pump.
In the same note, the ability to detect pressure drop and functioning on its own is also what defines these as an automatic water pump for house. While monitoring for a fall in hydration levels, Davey’s electropumps may become reactive and this is detriment whenever there lies a leak in any faucets, causing an unnecessary yet continuous running of centrifugal pumps. To apprehend this situation, a pressure tank, digital controller, or even a pressure switch can be attached which allows the water pump to release dampening off the storage instead, or even lower the pressure further by setting to reduce unnecessary pump cycling. This also prevents water hammer from occurence.
Centrifugal Pumps With More Than 200 Starts Per Hour
Davey’s flagship models of homestead pumps are built with a product value proposition of engine start-stopping specialty. These include the DynaDrive inverter pump, as well as the HM series of the Horizontal Multistage water pump. The thoughtful implication into the residential dwelling assortment was considered due to multiple open faucet uses that can run simultaneously by various people. Because of that, the specialisation into kickstarting the TEFC motor was considered, and up to 200 starts can be done within an hour is doable without breaking the actual electropump itself.
Doubling Our Pump Competitors In Performance
To put into spotlight of Davey’s start-stop engine performance versus with that of our competitors, our water pump for house category effectively doubled any of other centrifugal pumps found in the current marketplace.
In hindsight, it would be better said that the focus towards the protection of Davey’s TEFC motor in every flagship housing water pump models are meant to fit for the medium to large-sized households, ensuring greater long-term shelf-life at the same affordable price value.
Simultaneous Use with Davey's House Pump
As proper water pumps for house become installed, adequate flow rate would fulfill the necessary drench for each individual household. This must be within the parameter of the centrifugal pump recommended so opening multiple faucets, shower heads, and/or toilet use concurrently has the necessary pressure output. The calculation for this is achieved by Davey’s engineers assessing the litres per minute (LPM) produced by the housing pump, and it’s cross-measured towards the number of piping where liquids can be flowed out.
- Inverter Water Pump: Currently, this gadget invention has the best energy-efficiency among all of Davey’s water pump for house catalogue. The reason behind it is because the inverter electropump is designed to activate even more impellers depending on the number of open use. Hence, with only a singular tap running, Davey’s DynaDrive inverter water pump built for the home would cater specifically for that solo soddening application. This requires less electricity than having a centrifugal pump wetting down in full and complete force.
The inverter water pump for house is also known as the ‘Constant Pressure System.’ As the name suggest, these are electropumps that are giving off consistent aquatic ration by adjusting the speed higher to match with the requirement, and this in turn maintains the pressure in fixed kPa, psi, and/or bar found.
- Fixed Speed Pump: Every water pump for house outside of the inverter variation can be classified as a fixed speed. With no additional power options found, the output will always remain in one state regardless of your usage. This would also mean a uniform consumption of power supply, but on the flip side of things, water pump for house under the classification of fixed system are initially cost-saving.
Overall, all of Davey’s water pump for house category features a definitive name which are recognised in-house globally, through our distributors as well as Davey’s very own retailers, and we call these centrifugal pumps the ‘Home Pressure System‘ catalogue.
Standby Phase
For each of Davey’s domestic pressure pump, whenever water is unused, each and every one of them would remain in an idle status. During this period, both electrical energy consumption and water wastage is reduced to bare minimum, and this levels the public’s expectation on Davey’s electric pumps to fulfill its environmentalism duties.
The standby phase is denoted with the pressure pump having the most minuscule of utility consumption, and this is because of its benchmark that is kept to maintain standard pressure. Likewise, the inclusion of pressure switch aids to hasten the process of starting and/or stopping the pump’s motor with the addition of a sensor.
Quiet Operation With House Pumps
Silent running is also another advantage that was explored with Davey’s household pump. This is synonymous with living quarters being a place of solace and peace, signifying to bring down the pump’s generated sounds as much as possible so that it would not perturb the occupying folks. The noises from water pumps are generated off the engine (motor), or when hydration runs through the impellers within the volute itself, and long-term exposure to recurring sound affliction leads to irritation and uneasiness.
Measured in the form of Decibel (or dB in symbol) for sound intensity in an logarithmic scale, Davey’s product engineers overseeing all house-classified water pumps would have its noise benchmark built to be as minimal as possible. This is idealised from the usage of lubricants / gels, cover, structural housing, and even materials science to reduce the decibel rating.
Graded Stainless Steel
Most water pressure booster pump for housing implementation by Davey uses a higher grading of stainless steel alloy for all of its parts, as well as the shell. This is because of its rust-resistant action that is especially important as centrifugal pumps are always exposed and is in contact with h2o. Generally found among the mid-range to premium models of household pump, some of the economical-savvy smaller machine would feature plastic parts instead. These parts are equally CNC machined in Davey Water Products’ manufacturing facility to have a strong and consistent production for the housing water pump.
The evenly distributed SS304 composite metal would be found on the volute, to the impellers, circlip, spacers, mechanical seal, and even the backplate for these water pumps for houses, while the rotating shaft, in most instances, are made in 316 stainless steel. The SS316 version is used solely for the centrifugal pump’s shaft because it is the only constituent piece that must be durable to hold every other components in its arranged sections.
Water Pump For House Installment
For the installing construction of Davey’s household pumps, it is advisable to contact our authorised retail merchants to help you do so. Each and every merchant-dealers are properly trained and is assessed by Davey Malaysia ourselves, following the schematic protocols set-out for plumbing and water pump work for residence living here. The electropump installation by retailers is dependent on the region, as Davey have appointed a few to have oversight on each Malaysian states.
Replacement Parts Availability
It should be said that Davey Malaysia may readily have spare parts available in order to substitute existing pump replacement bits that have broken off amid operation. However, these are subjected to the availability of stock within Davey Malaysia’s warehouse, and also according to our technical engineering team as they assess the model for the water pump’s part. The later cue of engineers’ evaluation must be done because each of the house pump may feature different sizes and shapes, and this can even include the gasket, the tube for venturi effect, and also the O-ring.
House Pump with Warranty
Davey Malaysia features a full warranty for certain products under the water pump for house jumble, and it covers any form of manufacturing defect within the warranted duration. As such, depending on a case-by-case basis, a spare part change or a full house pump replacement can be conducted. This is also inspected and evaluated by Davey’s in-house engineers to determine if the full warranty can be used.
Still Made In Australia
Davey Water Products Pty Ltd would still manufacture pumps and water treatment merchandises, as well as build insulated elements right from the heart of Australia.
During the process of pump manufacturing, qualitative assurance will be enforced every step of the way to ensure that the end products are with fairly minimal margin of error. Alongside this, mass assembly in automation enables laser precision robotics to have reduced mishaps throughout the pump building.
Once the goods are produced, these are packaged properly into cartons, and also pallets before it becomes exported into 20ft or 40ft containers, where it’s shipped towards Davey Malaysia for the local distribution.
Water Pump For House Frequently Asked Questions (FAQs)
How do I select the right pump horsepower (HP) for my house?
To select the right pump horsepower, this addresses the concepts of flow capacity, static pressure, and head height.
What is the difference between a submersible pump and a jet pump?
The difference lie in its bodily construct. One of the key features of a submersible pump is their single channel design which allows debris / suspended solids to be transferred away through an open / semi-open impeller.
An open impeller has unblocked vanes to reduce the risk of blockages during its operation.
Some of our sump pumps are equipped with cutter or grinder models to move water containing laundry materials, or even raw sewerage containing sanitary products.
We also have a vortex model targeted to move medium volumes of solids such as hairs, abattoir or animal washings away, by utilising a series of recessed impeller vanes to reduce the direct contact with liquid to prevent blockages. It would spin to create a vortex / vacuum underneath that pushes water containing sediments out.
Although this method is less efficient compare to other designs, the trade off is that the submersible pump is more reliable for clogging prevention, as the impeller doesnt directly drives the movement of water.
A Jet pump, on the other hand, is commonly used for garden application.
A venturi tube and a diffuser design is built into the pump body, allowing the very pump itself to be self-priming and with the increased suction lift. This venturi effect driven pump is actually inspired by the Bernoulli’s principle to increase liquid velocity without complicated components.
How does a booster pump improve water pressure in my home?
A booster pump, or also known as a pressure pump, usually improves one’s home water pressure through its multiple impellers. This is further defined as multiple stages, or multistage.
With more added, the velocity and pressure of liquid can be increased, therefore transferring water through distributing pipes all over the house.
This is usually sought to fulfill better showering experience and faster water transfer rate.
To reduce energy consumption and prolong equipment lifespan, some booster pumps are equipped with a pressure tank (also known as diaphragm tank) that fills up h2o through the activation of a pump, in which the reservoir can be serve as water source for the next usage.
How does good pump design determine water efficiency?
A good pump design must encompass a durable impeller, great hydrodynamics component, incredibly energy-efficient motor, a well-structured pump construction and many more.
It is also crucial to also use the right materials such as ceramic mechanical seals to reduce friction losses, stainless steel component for longer lifespan without rusting, and also a uniform assembly of components to ease replacement and maintenance of pumps.
What causes cavitation in a water pump, and how can it be avoided?
Cavitation occurs when the absolute pressure around the center of impellers drops below the vapor pressure of water.
When these conditions are met, little bubbles will form and would travel towards the higher pressure area, in which it would implode violently to return back into its liquid form. This causes damage to the impellers and other pump components internally, shortening the lifespan and causes premature water pump for house failures.
To avoid all that, a water pump for house is installed right beside the water tank, and this installation location is crucial as it would increase the source liquid level around the pump. With the correct processing following our guidelines, ordinary household pumps would have very little risks of cavitation to happen.
Be advised that the pump isn’t lower than the NPSH (Net Positive Suction Head) value stated by your pump manufacturer.
This includes:
- Temperature and vapor pressure of water.
- Atmospheric pressure of the house water tank
- Sizes, lengths, friction losses of the suction piping and fittings is within requirement of pump manufacturer.
- The position of water sources (is it higher or lower than the pump suction).
Please consult Davey Malaysia’s customer support team for more information.
Can a solar water pump meet the needs of a modern household?
A solar water pump, or also known as a DC pump, is not a commonly used household pump as it deploys PV (Photovoltaic) cell to harness solar radiation as its power source.
While solar energy is a good renewable energy that preserves the environment and reduces green house effect, it is still not as reliable as electricity.
A solar water pump requires a battery to store the generated DC power for night time use, or an inverter to convert into AC current to power up the conventional pump.
How to prevent premature pump failure and prolong the lifespan of a pump?
To prolong the lifespan of water pump for houses, preventive maintenance as a safe yardage is important because there are wear and tear moving parts present within in a pump, such as mechanical seals.
In certain cases, there exists household without a proper filter which brought the aftermath of sediment buildings, thus increasing the risk of clogging and reduced pump efficiency.
A well-ventilated pump room also important to prevent motor from overheating during long and/or frequent operation periods.
What is a water pump in a house?
A water pump in a house is a very generic question that can expand into many sorts of centrifugal pumps available. For example:
- This can be a submersible pump if it’s used for a medium to large-sized koi aquarium tank.
- It may be used in a swimming pool, which can be a self-priming pump in this case.
- If there is a well in your home, a water pump in a house can be a well pump too.
But for general context, Davey would like to think that Malaysians are referring to water pressure booster pumps available.
How long does it take to fix a house pump?
Fixing a water pump in a house depends on the availability and scheduling of the technicians being hired.
As a water pump manufacturer and supplier in Malaysia, Davey does not engage directly with end consumers as we hold high esteem with our authorised dealers’ partnership in the supply chain.
Hence, we are not able to give a concrete advice on how long it would take to fix the pump demanded.
However, what Davey Malaysia can do for you is to contact any available and permitted dealers to install it as soon as possible.
Where is the water pump located in a house?
The pumping station or the place where the water pump is located within the house is almost always at the rooftop or the attic.
It should also be said that the household pump is always near the water tank, or simply just slightly below it.
This is done so that the centrifugal pump is in self-priming state and that it has continuous sufficient water supply.
How do I wire a house water pump?
To wire a house water pump, you must firstly:
- Disconnect the main power supply for safety reasons.
- Next, check the capacity of the eletropump available to select the right cable with the appropriate amperage rating in order to match the pump’s motor kilowatt (kW).
- Once this is done, the electrician-technician would have to connect the live, earth, and neutral wires based off the manufacturer’s advice as found in Davey Malaysia’s manual for your water pump for house.
- A test must be conducted after to make sure that everything runs smoothly and without error.
For safety reasons, it must be said that installation shouldn’t be done DIY.
It is preferred to have Davey MY’s official traders to have it put in place and functional for you.
What size of a water pump is needed for a house?
The size of a water pump needed for a house is dependent on the piping infrastructure for both the showerheads and the faucets available within, as well as the number of storey built.
As a rule of thumb, it can also be said that the larger a house is, the bigger the home water pump that is needed.
It is from here on out that homeowners may choose to get inverter pumps or a regular one instead.
For illustration reasons, Davey Malaysia have also created an infographic centered to our home pressure system to aid fellow homeowners in choosing the right water pump for his/her house.
How do I fix the water pump in my house?
To fix the water pump in your house, it is advisable to have technicians from our authorised dealers to come over for a quick survey and inspection instead of repairing things yourself.
This is because these professionals are trained with Davey Malaysia to diagnose the problems found based on the standard operating procedures given.
The experts sent would then determine if your water pump is repairable or not, in which you can further utilise the warranty that comes upon purchase, if any is given.
How long can a house water pump run continuously?
How long can a house water pump run continuously is a subjective question.
This is because every pressure boosting pump found is entirely dependent on you and your family’s lifestyle and frequency of use.
How long does a water pump last in a house?
How long a water pump last inside a house is dependent on its cycle of use.
Simply put, a direct relationship can be seen where the more a centrifugal pump is being run, the faster its wear and tear and the loss of its shelf-life.
The durability of a water pump for house use is also determined if it is installed correctly and without cavitation or any other damages found.
In the latter case, the householder may contact us to see if the existing water pump can be claimed from Davey Malaysia’s warranty, if it is given.
Why does a water pump make noise in the house when it's running?
A water pump in the house would make noise while it’s running is due to its internal mechanism being functional.
This is the feedback of its motor to swirl water in a centrifugal force to quicken up the release of h2o within.
This process is also known as water transfer, and because of its high flowing rate under the aftermath of rampant turning, pressure is then increased for a stronger water use.
Of course, to kickstart the pump, this is supported by electrical energy which is converted to mechanical after.
It should also be said a proper motor and a good insulation must be chosen; this ensures a silent environment despite having the homely water pump being activated.
How do I install a water pump in a house?
To install a water pump in a house, Davey Malaysia advises to have trained and approved professionals from our merchants end to aid you with the installation, in order to prevent unnecessary mishaps from happening.
For Davey to approve them, these experts are both trained and are in continuous communication with us to ensure every installation runs smoothly and without fail.
How do I choose a water pump for houses in Malaysia?
To choose the proper water pump for houses locally, the conventional rule of thumb is that the larger a house is, the bigger the water pump must be. An infographic water pump chart by Davey Malaysia is attached here to help you navigate for the correct electronic available.
How does a house water pump work?
A house water pump begins by creating a suction to draw in h2o, and this is achieved through its impeller or the piston found.
As liquid becomes sucked into the plumbing system, the pump forces water into the pipes using the electricity supplied to increase the pressure.
This stated pressure forces the clean water out just so we are all about to enjoy on a daily basis.
To prevent electrocution, the mechanical seal and impeller is installed tightly to capture the water so it can be thrown out.
How do I clean a house water pump?
To clean your housing water pump, it is also suggested to hire one of our trained executives to help you do so.
This is because cleaning any centrifugal pumps involve taking apart the whole compartments and parts available, which may be intricate and requires technical knowledge to piece everything back altogether, as well as ensuring that the water pump for dwelling is in stringent conditioning to remain in proper operation.
Fortunately, Davey Malaysia’s series of home pressure system is designed to be treated in harsh conditions and is built with the sole purpose of running on clean water only.
Hence, cleaning is very likely not needed.
What is the best water pump for a house?
There are no true definitive answers found when it comes to having the best water pump for a house.
Yet, the best remedy in choosing one is dependent on the piping architecture (connecting to toilets and the number of faucets found), to ensure that the water pump runs in efficient capacity that it would supply clean h2o everywhere without fail.
How do I turn off a water pump in a house?
To turn off a water pump in a house manually, simply trace back the plug found, close the switch, and then remove it from the socket.
On the contrary, every Davey’s water pump for house is regulated by a digital controller.
This would mean that our water pumps will remain inactive unless pressure is tilted through tap usage.
How much is a new water pump for household use?
The price of a new water pump for household use is dependent on its features and existing specifications chosen.
As the pricing varies from one electric pump to another, it is advisable to contact Davey Malaysia’s local dealers to enquire further.
How can I tell if my house water pump becomes bad?
If your house water pump becomes bad, you can tell almost indefinitely as it is very apparent.
Two simple signs hinting the failure causation are:
- If the water pump for households do not make any sounds despite the fact that it is on and plugged-into the socket.
- Running taps, showering and any water use do not exhibit pressure at all.
Under these observation, it is advisable to call technicians from Davey Malaysia’s authorised traders for technical troubleshooting.
If your housing water pump is under the period of warranty, our specialists can assess if it is deemed replaceable.
How do I pump water from my storage tank to the house?
In Malaysia, to pump water from your storage tank and into the house is only possible as an emergency provisioning on the event if our raw water supply from Air Selangor (or other regional service provider) becomes cut-off.
This release from your storage tank is to ensure that your water pump doesn’t gets into dry running.
How do I increase house water pressure without a pump?
One cannot increase the pressure without a pump regardless of the brand and products being used, which is why Malaysians sought for a water pump to begin with. Hence, it is completely impossible to do so without a pump.
