Davey's TotalFlo water pump - TF117MS-18
Key features:
- Standard automatic pressure system type.
- Suitable for smaller households (2-4 shower heads with 4-7 pipes).
- For housing and garden use.
- 24 months warranty for pump, motor & controller.
(24 + 6 additional months with e-Warranty scheme) - Fixed pressure setting on every usage.
- Easy installation, no setting required.
Overview of Davey's TotalFlo TF117MS-18 water pump
A lack of water pressure is a common issue in homes, especially in multi-outlet systems or when drawing from rainwater tanks. The TotalFlo water pump range by Davey is specifically designed to solve this problem. Whether it’s around the home or garden, installing a TotalFlo water pump can significantly improve water delivery and performance.
Some additional key benefits of the TotalFlo water pump series include:
- Automatic pressure boosting for consistent flow at all outlets
- Loss of prime protection, so your pump won’t burn out if your tank runs dry
- Built to handle harsh weather conditions, suitable for both tank and mains water
- Backed by a two-year warranty on all pressure and sump pumps for peace of mind
For larger-scale applications or irrigation systems, the DynaDrive and HMSeries from Davey can be considered for higher flow rates and more demanding performance needs.
If you’re considering the TotalFlo water pump for your home or garden, and want to ensure it fits your specific setup, we’re here to help. The TF117MS-18 is just one of many options available in the range — and selecting the right model can make all the difference in long-term performance.
When consistent water pressure and reliability matter, Davey’s TotalFlo water pump series delivers the performance you can trust. Whether you’re boosting pressure for a household or improving water delivery to a garden, the TotalFlo water pump offers a robust and efficient solution. Compact yet powerful, this line of centrifugal pumps is designed for local conditions, combining intelligent design with long-lasting durability. Ideal for both tank and mains supply, the TF117MS-18 model in particular is a standout choice for medium to larger homes, thanks to its smart pressure-boosting capabilities and low-noise operation.
For those seeking a dependable electropump that can handle variable pressure needs, this TotalFlo water pump offers exceptional value — built for performance, peace of mind, and backed by Davey’s solid reputation.
Here are some of the key features and benefits of our TF117MS-18 variant:
- Model number: TF117MS-18
- Designed for pressure boosting in gardens and small homes
- Enhances pressure from mains or tank water
- Suitable for both suction lift and flooded suction configurations
- Built-in loss of prime protection to prevent dry running
- Low-noise performance for quiet operation around the home
- Durable stainless-steel wet end casing (304SS) ensures long service life
Other varieties of TotalFlo
| Pump Model | Product Code (SKU) |
|---|---|
| Jet Pumps – Compact and Efficient for Small Households | Models: TF40J-18, TF50J-18 Application: These jet pumps are ideal for smaller homes, garden irrigation systems, or low-demand indoor usage. Compact in build yet powerful enough for day-to-day water pressure needs, they represent a cost-effective solution for basic residential setups. Jet pumps are single-stage centrifugal pumps that use an ejector to increase suction capacity, making them suitable for shallow water sources or where suction lift is a concern. |
| TotalFlo Multistage Pump Version | Model: TF117MS-18 Application: Designed for medium to large homes, this multistage centrifugal pump delivers high-pressure output, making it perfect for multiple bathrooms, showers, and simultaneous water use points. It also suits properties with upper floors or rooftop storage tanks. Multistage pumps like the TF117MS-18 are constructed with multiple impellers, each contributing to higher overall pressure while maintaining stable and efficient flow. This allows for more consistent water delivery across wider household plumbing systems. |
| TotalFlo Sump Pump Version | Models: TF180S, TF230S Application: Tailored for flood-prone areas, basements, or external drainage systems, these sump pumps are designed to move large volumes of water efficiently. They are especially useful during monsoon seasons or emergency water removal situations. Sump pumps are typically installed in sump pits and activated automatically when water levels rise, ensuring quick evacuation of unwanted water from the premises. |
Other varieties of TotalFlo
Davey Water Products has implemented a distinct and systematic product identification method across its entire range, including centrifugal pumps and water treatment systems, refined over more than 90 years of operational excellence. This structured approach not only streamlines the supply chain but also simplifies product tracking, servicing, and part replacement for distributors, retailers, and end-users alike.

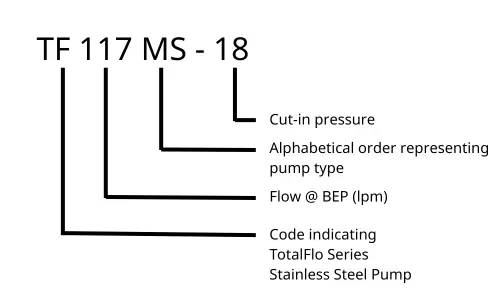

Every TotalFlo water pump, including the TF117MS-18, carries a unique model number constructed using a consistent format that encapsulates key product specifications:
- Product Series Abbreviation – The code begins with “TF”, denoting the TotalFlo series.
- Flow Rate Indicator – The following number (e.g., 117) represents the pump’s maximum flow rate in litres per minute (L/min).
- Pump Type Code – Next is a letter or group of letters that identifies the pump type. In this case, “MS” indicates a multistage configuration, while “J” is used for jet pumps and “S” for sump pump variants.
- Cut-in Pressure Value – The final digits refer to the cut-in pressure, expressed as bar multiplied by 10. For example, “18” denotes a cut-in pressure of 1.8 bar (180 kPa).
Therefore, for model TF117MS-18:
- TF = TotalFlo series
- 117 = Delivers up to 117 litres per minute
- MS = Multistage pump design
- 18 = Cut-in pressure of 180 kPa (1.8 bar)
This fixed sequencing not only distinguishes each pump within the TotalFlo lineup but also ensures rapid identification when performing maintenance or ordering replacement parts. Davey Malaysia’s service technicians and retail partners rely on this nomenclature to retrieve the exact specifications or internal components required for each unit.
Beyond servicing, the identification system is also critical for inventory control and supply chain logistics. Each model’s unique SKU enables seamless tracking from the factory floor to retail shelves and customer installations. Internally, it also supports efficient inventory sorting and allocation across Davey’s regional warehouses, all of which maintain extensive in-house records tied to the serialised model numbers.
By adhering to this comprehensive product coding structure, Davey ensures that every pump, whether it’s a compact jet model or a high-performance multistage system like the TF117MS-18, can be quickly and accurately identified for any operational, maintenance, or logistical requirement.
Pressure tank as an attachment
While the TF117MS-18 is fully capable of operating on its own, pairing it with a pressure tank offers several practical advantages, especially for households with varying water usage patterns.
Reduces Pump Cycling: The pressure tank acts as a water reserve, storing pressurised water and reducing how often the pump needs to start and stop. This helps minimise wear and tear on the pump, extending its operational life while also preventing water hammer, a surge of pressure that can damage plumbing and pump components.
Maintains Consistent Water Pressure: By using a diaphragm or bladder inside the tank to maintain pressure, users experience smoother and more consistent water flow even during peak demand. This is particularly useful for multi-outlet homes or properties with multiple bathrooms.
Improves Energy Efficiency: With fewer pump activations, the system consumes less electricity. This not only saves energy bills but also reduces the carbon footprint over time, supporting a more environmentally friendly household operation.
Tank Capacity: Davey allows a pressure tank size of up to 8 litres (2.11 gallons) to be integrated with the TF117MS-18. The tank stores water and releases it as needed without activating the pump each time, ensuring smooth and efficient operation.
Certifications
The TotalFlo TF117MS-18 is backed by a range of internationally recognised certifications that affirm its safety, performance, and manufacturing quality. These endorsements reflect Davey Water Products’ commitment to excellence, user protection, and global distribution compliance.
SGS Certification: Tested and approved by Société Générale de Surveillance (SGS), the TF117MS-18 has undergone stringent safety checks, particularly on its electrical insulation. This ensures the pump is safe for home use, preventing risks such as electric shock or overheating. The certification serves as an assurance that Davey’s components meet globally accepted safety benchmarks.
ISO Certifications
ISO 9001: Recognises Davey’s quality management system across its manufacturing process. This ensures consistency, reliability, and continuous improvement throughout production.
ISO 14001: Highlights Davey’s commitment to environmental responsibility. The certification confirms sustainable practices in the pump’s manufacturing, including efficient use of resources and waste reduction.
IEC Compliance: Certified by the International Electrotechnical Commission (IEC), the TF117MS-18 meets global electrical safety and performance standards. This makes it compatible for use across international markets and ensures safe operation under varying electrical environments.
European Standards & CE Mark: Davey’s TotalFlo pump conforms to European Standards (EN) and bears the CE marking, verifying its compliance with EU health, safety, and environmental protection requirements. This also guarantees technical compatibility with other EU-compliant systems, allowing integration with accessories like third-party pressure switches or timers.
Australian Standards: Designed and manufactured in Australia, the TF117MS-18 aligns with Standards Australia, a benchmark for safety and operational reliability under demanding conditions. This ensures that the pump performs well not only in Australian households but also in similar climates like Malaysia.
- AS/NZS 4020:2005: Confirms the pump is safe for contact with drinking water. All wetted parts, including fittings, seals, and coatings, are tested to ensure they don’t compromise water quality or pose health risks.
Standards New Zealand: Mirroring the Australian guidelines, Standards New Zealand certification extends recognition of the pump’s safety and mechanical integrity for agricultural, domestic, and industrial water applications in the region.
Pump motor
At the core of the TF117MS-18 is a robust and reliable TEFC motor (or totally-enclosed, fan-cooled engine), purpose-built to provide consistent water pressure for residential use.
Motor Output: 0.75 kW (1.0 HP)
Voltage Supply: 240V single-phase
Built-in Safety: Equipped with thermal overload protection to prevent overheating, extending the motor’s life and ensuring safe daily operation.
This motor delivers stable performance, making it suitable for medium to large households that require steady water flow across multiple outlets.
Easy Setup: Installation is as simple as plugging the unit into a standard wall socket using a 3-pin plug. Once switched on, the pump is ready for immediate use, no complex wiring required.
Self-Priming Capability: Designed to automatically remove air trapped in the suction line, the motor can gradually build pressure as it fills with water. This feature is particularly effective when installed below a water tank, enabling better suction performance and smoother operation.
Especially designed for domestic environments, the motor operates with minimal noise while still providing the necessary pressure for household needs. It’s a practical solution for those looking for performance without unnecessary sound disruptions.
Davey’s TotalFlo motor employs a tried-and-tested centrifugal mechanism to generate water pressure efficiently. Rather than overcomplicating the design with experimental technologies, Davey focuses on proven engineering that maximises reliability and output.
Infographic
Choosing the right electropump depends on your household water demands and usage points. Key factors include the number of outlets (like showers and faucets), water pressure requirements, and temperature conditions.
The TotalFlo TF117MS-18 model is ideal for typical household needs. It comfortably supports up to 3 shower sprinklers and 5 faucets and can handle a maximum of 4 showers and 7 faucets, making it a reliable choice for medium to large homes that require consistent water pressure across multiple usage points.
Refer to the infographic below to guide your selection of Davey electropumps based on your home’s water usage:
Suction inlet
The TF117MS-18 features a 1.25-inch (31.75 mm) BSP female suction inlet, specifically selected for larger-capacity pumps to support higher flow rates and faster priming. It is constructed from SUS304 stainless steel which offers a strong resistance to corrosion caused by prolonged exposure to clean or slightly contaminated water sources. The polished surface also resists rust and enhances durability.
The enlarged inlet allows efficient intake from overhead tanks or mains. Its size supports quicker self-priming, reducing downtime during startup. A plastic cap is pre-installed to keep out dust and debris during delivery and installation. The inlet is designed to draw in clean water smoothly and without air gaps. P
Positioned below the water tank, the pump benefits from a naturally supported Net Positive Suction Head (NPSHr), which improves suction reliability and reduces cavitation risk. Proper suction line installation is essential to maintain high efficiency and ensure uninterrupted water delivery to the impellers.
The TF117MS-18 features a 1.25-inch (31.75 mm) BSP female suction inlet, specifically selected for larger-capacity pumps to support higher flow rates and faster priming. It is constructed from SUS304 stainless steel which offers a strong resistance to corrosion caused by prolonged exposure to clean or slightly contaminated water sources. The polished surface also resists rust and enhances durability.
The enlarged inlet allows efficient intake from overhead tanks or mains. Its size supports quicker self-priming, reducing downtime during startup. A plastic cap is pre-installed to keep out dust and debris during delivery and installation. The inlet is designed to draw in clean water smoothly and without air gaps. P
Positioned below the water tank, the pump benefits from a naturally supported Net Positive Suction Head (NPSHr), which improves suction reliability and reduces cavitation risk. Proper suction line installation is essential to maintain high efficiency and ensure uninterrupted water delivery to the impellers.
| Inlet And Outlet Information | |
|---|---|
| Inlet Size | 1.25 inch (31.75mm) BSP F |
| Outlet Size | For all home pressure systems: 1 inch BSP M |
| Max. head | 41m (134.51 ft) |
Volute construction
The volute in the TF117MS-18 is a critical component, engineered to guide water efficiently from the impellers to the outlet while protecting internal parts. Built using SUS304 stainless steel, the volute offers excellent corrosion resistance and strength. This is important for homes that draw water from different municipal sources, such as SYABAS or Penang Water Supply, which may contain mineral traces.
The internal spiral casing shape is optimised to allow water to swirl centrifugally. As water travels along the volute’s curved path, its velocity is converted into pressure with minimal turbulence. The volute casing also acts as a shield against external impact, sand, or debris that could compromise the pump’s internal mechanics. A clean, reflective finish offers both visual appeal and easy maintenance.
This construction ensures long-lasting use and consistent performance, even in environments exposed to moisture, grit, or physical wear.
Impellers and diffusers
The TF117MS-18 pump is equipped with a four-stage pumping system, each featuring stainless steel impellers and diffusers designed to multiply water pressure progressively, making it ideal for users seeking stable pressure with low maintenance.
Impellers: Enclosed (closed-type) stainless steel impellers are precision-machined for optimal centrifugal action. These create high water velocity with minimal energy loss, even during continuous operation.
Diffusers: Positioned after each impeller, diffusers efficiently convert water velocity into pressure. Their staged placement ensures that each cycle builds on the previous one, resulting in a strong, steady outlet pressure.
Performance: The multi-impeller design enables the pump to meet the demands of multi-storey homes, garden irrigation, or simultaneous water usage across multiple outlets.
Durability & Flow: Stainless steel construction resists wear from friction and water exposure, while the smooth surface finish reduces internal drag and supports a quiet, energy-efficient operation.
Gasket, backplate and mechanical seal uses
To protect the motor and internal workings of the TF117MS-18, high-quality sealing components are built in to prevent leaks and maintain structural integrity.
Mechanical Seal: Installed along the shaft near the motor housing, this seal keeps water from entering the motor chamber, ensuring safe electrical operation and reducing the risk of failure due to moisture intrusion.
Rubber Gasket: Positioned between major pump components such as the volute, backplate, and motor, the gasket maintains a tight seal and absorbs vibration, by reducing mechanical stress on the pump during operation. Minimises noise by limiting direct metal-to-metal contact, making the pump quieter.
Backplate: Acts as the final defence against backflow or splashes reaching the motor. It supports all mechanical parts and contributes to the pump’s structural stability.
The diagram below shows several key internal parts of the TF117MS-18 centrifugal pump, including the suction inlet, volute casing mechanical seals and gasket, designed for optimal household water pressure performance.
O-ring uses
The TotalFlo TF117MS-18 water pump is engineered with precision sealing components to maintain watertight integrity and mechanical durability. Among the most critical of these are the O-rings, which are strategically fitted at various connection points throughout the pump.
These O-rings are crafted from EPDM (ethylene propylene diene monomer), a high-performance synthetic rubber known for its excellent resistance to heat, wear, and chemical exposure. EPDM is preferred over other materials like neoprene due to its superior temperature tolerance, an important factor in scenarios involving prolonged pump operation or the handling of viscous, slurry-like liquids. Such conditions can generate significant internal heat, and EPDM maintains its elasticity and sealing strength even under those demanding circumstances.
By forming airtight and watertight seals, these O-rings help prevent internal leaks, reduce pressure loss, and maintain overall system efficiency. Regular inspection and timely replacement of worn O-rings are essential to preserving the pump’s long-term performance and reliability.
Electrical data and operating limits
The TotalFlo TF117MS-18 water pump is engineered with precision sealing components to maintain watertight integrity and mechanical durability. Among the most critical of these are the O-rings, which are strategically fitted at various connection points throughout the pump.
These O-rings are crafted from EPDM (ethylene propylene diene monomer), a high-performance synthetic rubber known for its excellent resistance to heat, wear, and chemical exposure. EPDM is preferred over other materials like neoprene due to its superior temperature tolerance, an important factor in scenarios involving prolonged pump operation or the handling of viscous, slurry-like liquids. Such conditions can generate significant internal heat, and EPDM maintains its elasticity and sealing strength even under those demanding circumstances.
By forming airtight and watertight seals, these O-rings help prevent internal leaks, reduce pressure loss, and maintain overall system efficiency. Regular inspection and timely replacement of worn O-rings are essential to preserving the pump’s long-term performance and reliability.
Category | Specification |
Motor size | 750W |
Voltage | 220-240V |
Frequency | 50Hz |
Current | 4.0A |
Phase | Single |
Insulation | Class F |
IP Rating | IP 45 |
Power lead | 1.8m with C38 3-pin plug |
Nominal speed | 2,860 rpm |
Inlet size | 1¼” BSP (F) |
Outlet size | 1″ BSP (M) |
Max. head | 41m |
Max. flow | 117 lpm |
Max. water temp. | 35°C (41°F) |
Max. ambient temp. | 40°C (104°F) |
Cut-in pressure | 180kPa (1.8Bar) |
Wet end casing | 304SS |
Noise rating | 67.8dB |
*The W in motor size is referred to Watt consumed.
*V is the abbreviation of voltage.
*Hz is the hertz used in frequency.
*The ‘A’ alphabet means Ampere.
*In nominal speed, rpm refers to revolution per minute.
*BSP F stands for British Standard Pipe Female. BSP M stands for British Standard Pipe Male.
*Maximum head is in metres, where ft appears for foot in measurement.
*Maximum flow in lpm is defined as Litre per minute.
*The ambience temperature of °C is degree Celsius.
*°F is degree Fahrenheit.
*kPa refers to kilopascal, a unit of pressure. Bar is another pressure measurement commonly used in pump systems. 1 Bar ≈ 100kPa.
*dB is the reference to Decibel.
Compared to a standard centrifugal pump, the TotalFlo range is engineered for quiet and stable performance, offering household-friendly solutions without the complexity of commercial setups.
Electrical data and operating limits
Understanding hydraulic performance is essential when selecting the right TotalFlo water pump for your home. The graph below illustrates the performance curve of Davey’s TotalFlo TF117MS-18 model, showing the relationship between head (the pump’s ability to generate pressure) and flow (the volume of water delivered).
As seen in the chart, there’s an inverse relationship between head and flow. The higher the head (measured in metres), the lower the flow rate (litres per minute), and vice versa. This helps determine how the pump will perform under different usage conditions, such as operating multiple showers or faucets simultaneously.
The TotalFlo water pump series is designed to maintain optimal balance between pressure and flow, ensuring reliable performance for household water systems. Whether you’re using tank water or mains supply, the TF117MS-18 — part of the wider TotalFlo water pump range — delivers consistent output without compromising efficiency.
This electropump is ideal for medium-to-large homes that require a stable water supply across multiple outlets.
Included In The Box
TotalFlo Water Pump
User Manual
Proof of Purchase
24 Months of Manufacturer Warranty (Increased by Another 6 Months with e-Warranty Scheme)
