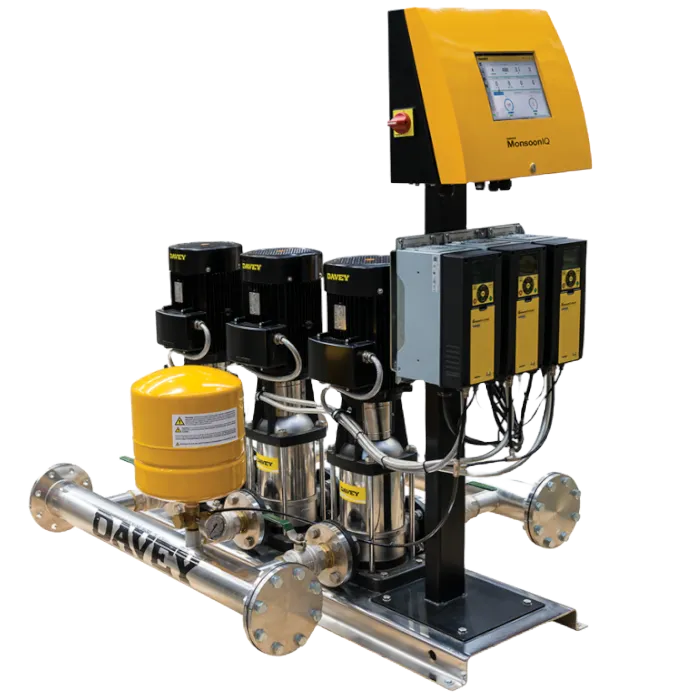

Davey Triple VM Vertical Multistage water pump skid with inverter - three phase
Key features:
- Inverter pump (variable frequency drive) type.
- Suitable for apartment, condominium, offices, and industrial applications.
- 12 months warranty for pump set.
- Adjustable pressure setting based on usage.
VM Vertical Multistage pump set overview
Water systems are pivotal for agriculture irrigation, industries, and commercial building services. When these systems fail, the impact is immediate, which includes crops at risk of under-irrigation, building occupants experiencing poor water pressure, and industrial processes facing costly downtime. Davey’s Triple VM Vertical Multistage water pump skid with an inverter under three-phase solves the problem with a unique blend of advanced engineering and practical reliability.
Designed as a constant-pressure pump set, this Davey water pump automatically adapts to demand. Irrespective of whether the application is an irrigation water pump, an agriculture water pump, or a pump for commercial building services, the outcome is a consistent, smooth, long-term, and durable operation. Integrating a variable speed drive, robust totally enclosed fan-cooled (TEFC) motor, and a stainless-steel base ensures that the Davey pump set delivers a reliable water supply but provides energy efficiency and reduced cycling.
With a reputation built on decades of trusted performance, the Davey Triple VM Vertical Multistage water pump offers a more innovative way to move water.
Selecting the pump set that fit your needs
Every installation is unique, and the Davey Triple VM Vertical Multistage water pump with a three-phase variable speed drive set is designed with that flexibility in mind. The pump can be programmed in duty standby or duty assist mode, which depends on whether reliability or increased flow is required. In this case, the same Davey water pump can suit both seasonal irrigation water pump applications and high-demand commercial building services pump systems.
| Model No. | Motor, P2 (kW) | Manifold Connections | Pressure Tank |
| 3MLV3-8M3-18 | 3 × 0.75 | 2″ BSP | 18L 10bar |
| 3MLV3-12M3-18 | 3 × 1.10 | ||
| 3MLV3-15M3-18 | 3 × 1.50 | 18L 16bar | |
| 3MLV3-17M3-18 | 3 × 2.20 | ||
| 3MLV3-19M3-18 | 3 × 2.20 | ||
| 3MLV3-23M3-18 | 3 × 2.20 | ||
| 3MLV5-5M3-18 | 3 × 0.75 | 2″ BSP | 18L 10bar |
| 3MLV5-7M3-18 | 3 × 1.10 | ||
| 3MLV5-8M3-18 | 3 × 1.10 | ||
| 3MLV5-10M3-18 | 3 × 1.50 | ||
| 3MLV5-12M3-18 | 3 × 2.20 | 18L 16bar | |
| 3MLV5-14M3-18 | 3 × 2.20 | ||
| 3MLV10-4M3-18 | 3 × 1.50 | Flanged 80mm Table E | 18L 10bar |
| 3MLV10-5M3-18 | 3 × 2.20 | ||
| 3MLV10-6M3-18 | 3 × 2.20 | ||
| 3MLV10-7M3-18 | 3 × 3.00 | ||
| 3MLV10-8M3-18 | 3 × 3.00 | 18L 16bar | |
| 3MLV10-9M3-18 | 3 × 4.00 | ||
| 3MLV10-10M3-18 | 3 × 4.00 | ||
| 3MLV15-3M3-18 | 3 × 3.00 | Flanged 100mm Table E | 18L 10bar |
| 3MLV15-4M3-18 | 3 × 4.00 | ||
| 3MLV15-5M3-18 | 3 × 4.00 | ||
| 3MLV15-6M3-18 | 3 × 5.50 | ||
| 3MLV15-8M3-18 | 3 × 7.50 | 18L 16bar | |
| 3MLV20-3M3-18 | 3 × 4.00 | Flanged 125mm Table E | 18L 10bar |
| 3MLV20-4M3-18 | 3 × 5.50 | ||
| 3MLV20-5M3-18 | 3 × 5.50 | ||
| 3MLV20-6M3-18 | 3 × 7.50 | ||
| 3MLV20-7M3-18 | 3 × 7.50 | 18L 16bar | |
| 3MLV32-3AM3-18 | 3 × 3.00 | Flanged 125mm Table E | 18L 10bar |
| 3MLV32-3M3-18 | 3 × 5.50 | ||
| 3MLV32-4M3-18 | 3 × 7.50 | ||
| 3MLV32-5M3-18HP | 3 × 11.00 | 18L 16bar | |
| 3MLV32-6M3-18HP | 3 × 11.00 |
The complete Davey pump set includes a suction manifold, discharge manifold, isolating valves, non-return valves, a pressure transducer, and a pressure tank. All mounted on a corrosion-resistant stainless-steel base. This compact yet robust design makes it installer-friendly while ensuring long-term durability.

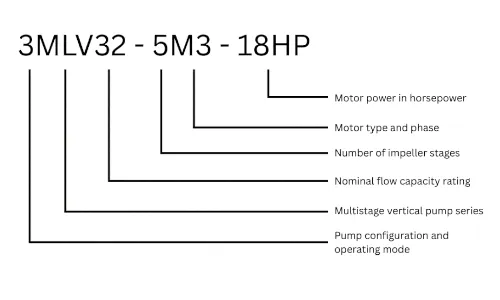

Pump skid product identification
Understanding the model structure enhances the selection and arrangement of the correct Davey Triple VM Vertical Multistage water pump. Each Davey water pump code provides details such as flow rate, pressure capability, and the number of pump stages. This coding system ensures consultants, distributors, and end-users can quickly identify the pump configuration required.
- The initial number indicates the pump configuration, which is a three-pump set designed for duty standby or duty assist operation.
- The acronym “MLV” refers to the Multistage Vertical pump series, identifying the pump as part of the VM Vertical Multistage family.
- The nominal capacity of the pump in cubic metres per hour.
- The number of impeller stages, which directly determines the head or pressure capability.
- “M” denotes motor-driven, and the number indicates whether it is a single-phase or three-phase motor.
- The final section specifies the motor power in HP, giving clarity on performance capacity.
For example, model 3MLV32-5M3-18HP describes a triple pump set from the VM Vertical Multistage series, rated for 32 nominal flow, with five stages, driven by a three-phase motor, and powered by an 18HP motor.
Attachments
Pressure tanks for stability and a consistent supply
The pressure tank with two different pressures, which are 18L 10bar and 18L 16bar, is a vital add-on to help ensure stability within the Davey Triple VM Vertical Multistage water pump with a three-phase variable speed drive.
By storing pressurized water, these tanks reduce cycling frequency, extend component life, and maintain steady water pressure under variable demand. Choosing between 10bar or 16bar options allows system designers to match the application, giving flexibility without compromising the long-term durability of the Davey pump set.
RainBank for intelligent water source management
The RainBank system is a brilliant addition to the Davey triple VM Vertical Multistage water pump with a three-phase variable speed drive set, designed for sustainable water use. It uses rainwater as the primary source for non-potable use, such as garden irrigation, toilet flushing, or laundry, switching to the mains supply only when necessary.
This secures energy efficiency operation, cost-effectiveness, and reduced reliance on mains water. By combining technology with sustainability, RainBank enhances the versatility and overall system reliability of the Davey pump set.
Smart manifold integration for seamless operation
The Davey Triple VM Vertical Multistage water pump with a three-phase variable speed drive set incorporates a precision-engineered suction manifold and discharge manifold, designed to simplify installation and optimize hydraulic performance. Integrated isolating and non-return valves streamline maintenance and protect against backflow, while the stainless-steel base provides strength and compactness. This hydraulic design reduces turbulence, improves reliability, and ensures a stable supply in demanding applications.
Adaptive control through variable speed drive
Equipped with advanced variable speed drive technology, the Davey Triple VM Vertical Multistage water pump adapts output to real-time demand via its integrated pressure transducer. By adjusting motor speed, it maintains constant pressure, reduces pump cycling, and enhances energy efficiency. Pumps can operate in duty standby or duty assist mode, ensuring both redundancy and performance.
Triple VM Vertical Multistage pump set certifications
The Davey Triple VM Vertical Multistage water pump with a three-phase variable speed drive set complies with AS/NZS 4020 drinking water guidelines. This certification asserts that Davey water pumps are approved for use in drinking water systems, enabling use in agricultural water pumps, irrigation systems, and commercial building service pump installations.
TEFC motor for reliable operation
The Davey Triple VM Vertical Multistage water pump with a three-phase variable speed drive set is powered by the TEFC motor to deliver stability and energy-efficient work.
Its enclosed, fan-cooled design protects against dust, moisture, and environmental exposure, making it highly reliable in demanding conditions. By coordinating with the variable speed drive, the motor reduces unnecessary consumption, maintains constant water pressure, and prolongs the service life of components.
Quiet, robust, and reliable, the TEFC motor ensures the long-term performance of the Davey water pump in irrigation, agriculture, and commercial building services.
Included In The Box
Triple VM Vertical Multistage Water Pump Skid With Inverter – Three Phase
User Manual
Proof of Purchase
12 Months of Manufacturer Warranty
