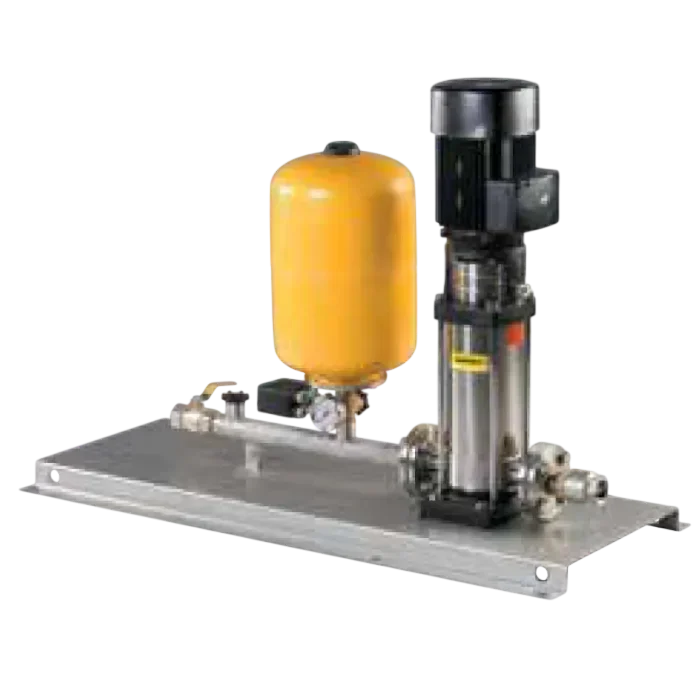

Set Pam Air Davey VM Vertical Multistage Dengan Suis Tekanan
Ciri-ciri utama:
- Jenis sistem tekanan automatik standard.
- Sesuai untuk pengairan berskala kecil, pertanian, bekalan air, proses industri, dan perkhidmatan bangunan komersial.
- 12 bulan waranti untuk pam, motor & pengawal.
- Tekanan tetap untuk setiap penggunaan.
Pengelasan:
Varian Produk:
Gambaran Keseluruhan Set Pam Air Davey VM Vertical Multistage Dengan Suis Tekanan
Sistem tekanan berbungkus fasa tunggal berkelajuan tetap yang terdiri daripada pam multistage menegak keluli tahan karat Davey dengan tangki tekanan (sama ada 18L atau 100L), suis tekanan boleh laras, tolok tekanan berisi cecair, serta injap pengasingan dan injap tak balik pada plat asas keluli tahan karat yang sama.
- Pengairan berskala kecil, pertanian dan bekalan air.
- Proses industri dan perkhidmatan bangunan komersial.
| Nombor Modal | Keterangan | kW (P2) | Salur Masuk / Keluar | Aliran Maksimum |
|---|---|---|---|---|
| Single Pump single phase (3* or 4* denotes 3kW or 4kW motor is 480V single phase) | ||||
| VM3-8M1-18 | VM3-8 with 18P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-8M1-100 | VM3-8 with 100P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-12M1-18 | VM3-12 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-12M1-100 | VM3-12 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-15M1-18 | VM3-15 with 18P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-15M1-100 | VM3-15 with 100P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-17M1-18 | VM3-17 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-17M1-100 | VM3-17 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-19M1-18 | VM3-19 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-19M1-100 | VM3-19 with 100P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM5-5M1-18 | VM5-5 with 18P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-5M1-100 | VM5-5 with 100P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-7M1-18 | VM5-7 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-7M1-100 | VM5-7 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-8M1-18 | VM5-8 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-8M1-100 | VM5-8 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-10M1-18 | VM5-10 with 18P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-10M1-100 | VM5-10 with 100P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM10-4M1-18 | VM10-4 with 180P tank | 1.5 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-4M1-100 | VM10-4 with 180P tank | 1.5 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-5M1-18 | VM10-5 with 18P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-5M1-100 | VM10-5 with 100P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-6M1-18 | VM10-6 with 18P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-6M1-100 | VM10-6 with 100P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
Saiz lain dan sistem tersuai boleh didapati atas permintaan.
Dalam Kotak
Set Pam Air Davey VM Vertical Multistage Dengan Suis Tekanan
Manual Pengguna
Bukti Pembelian
12 Bulan Waranti Pengeluar
Borang Perhubungan
