Davey's VM Vertical Multistage Pump Skid With Pressure Switch
Key features:
- Standard automatic pressure system type.
- Suitable for small-scale irrigation, agriculture, water supply, industrial process, and commercial building services.
- 12 months warranty for pump set.
- Adjustable pressure setting based on usage.
Classified As:
Product Variant:
Overview of Davey's VM Vertical Multistage Pump Skid With Pressure Switch

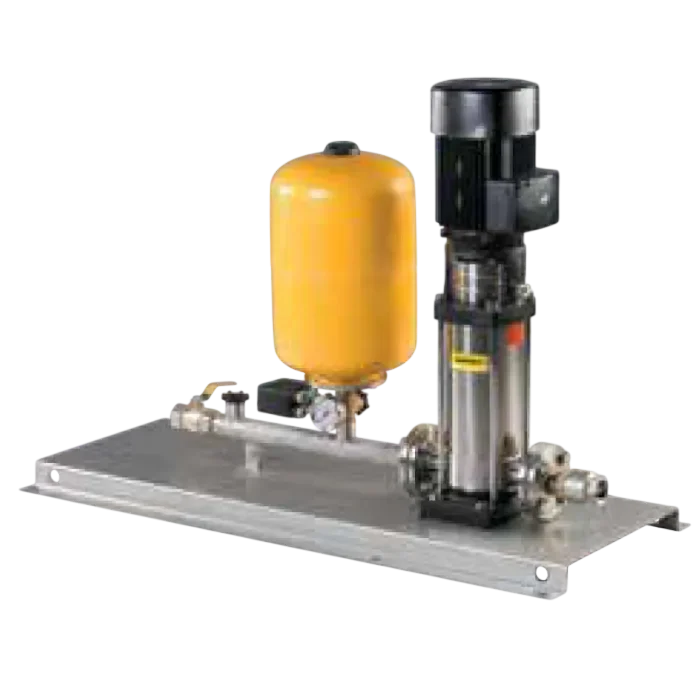

Fixed speed, single phase packaged pressure systems consisting of a Davey stainless steel vertical multistage pump with pressure tank (either 18L or 100L), adjustable pressure switch, liquid-filled pressure gauge, isolation, and non-return valves on a common stainless steel base plate.
- Small-scale irrigation, agriculture and water supply.
- Industrial process and commercial building services.
| Model No. | Description | kW (P2) | Inlet/Outlet | Max. Flow |
|---|---|---|---|---|
| Single Pump single phase (3* or 4* denotes 3kW or 4kW motor is 480V single phase) | ||||
| VM3-8M1-18 | VM3-8 with 18P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-8M1-100 | VM3-8 with 100P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-12M1-18 | VM3-12 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-12M1-100 | VM3-12 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-15M1-18 | VM3-15 with 18P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-15M1-100 | VM3-15 with 100P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-17M1-18 | VM3-17 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-17M1-100 | VM3-17 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-19M1-18 | VM3-19 with 18P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM3-19M1-100 | VM3-19 with 100P tank | 2.2 | 1 1/4″ (F) / 11/4″ (F) | 66 lpm |
| VM5-5M1-18 | VM5-5 with 18P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-5M1-100 | VM5-5 with 100P tank | 0.75 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-7M1-18 | VM5-7 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-7M1-100 | VM5-7 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-8M1-18 | VM5-8 with 18P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-8M1-100 | VM5-8 with 100P tank | 1.1 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-10M1-18 | VM5-10 with 18P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM5-10M1-100 | VM5-10 with 100P tank | 1.5 | 1 1/4″ (F) / 11/4″ (F) | 133 lpm |
| VM10-4M1-18 | VM10-4 with 180P tank | 1.5 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-4M1-100 | VM10-4 with 180P tank | 1.5 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-5M1-18 | VM10-5 with 18P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-5M1-100 | VM10-5 with 100P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-6M1-18 | VM10-6 with 18P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
| VM10-6M1-100 | VM10-6 with 100P tank | 2.2 | 1 1/2″ (F) / 11/2″ (F) | 200 lpm |
Other sizes and customised systems are available on request.
Included In The Box
VM Vertical Multistage Water Pump Skid With Pressure Switch
User Manual
Proof of Purchase
12 Months of Manufacturer Warranty
