Davey's RainBank Pro Pump Skid With Rainwater Harvesting System
Key features:
- Pump skid / pump set type.
- Suitable for rainwater harvesting on metropolitan buildings with large roof areas.
– For schools, apartment buildings, warehouses and factories, motels, police stations, council buildings, fast food outlets. - 12 months warranty for pump & motor.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Product Variant:
Overview of Davey's RainBank Pro Pump Skid With Rainwater Harvesting System
The RainBank Pro system is a centrifugal pump-based rainwater reuse solution designed as part of a complete process system for commercial and industrial water treatment and filtration applications. According to Davey Water Products Pty Ltd, this system is engineered for non-potable rainwater supply such as irrigation, wash-down, and building service use across commercial buildings, schools, industrial sites, and public amenities. It uses an electric motor driven horizontal or submersible pump configuration depending on tank location and installation design, often supplied as a skid mount or modular process skid for fast deployment with integrated electrical wiring, instrumentation, valve, pressure vessel, flow meter, and control system components.
The system supports sustainability concepts such as sustainable development goal, water security, Rainwater Harvesting (RWH), water conservation, and renewable resource use through integration into rainwater tank (rain barrel or water butt) storage, cistern, reservoir, aquifer recharge, and stormwater harvesting infrastructure. It supports domestic and commercial water supply uses including toilet, irrigation, livestock, domestic use, and self-supply of water. This solution supports modern urban, industrial, residential, and commercial architecture design projects including rooftop, flat roof, and underground storage tank layouts using gutter collecting and roof water collection methods.
The system is commonly used in rainwater harvesting system in Malaysia environments and can be integrated into a smart rainwater harvesting system, rainwater harvesting tank system, sustainable drainage system, water catchment system, roof water harvesting, rain catchment system, and roof water collection infrastructure.
The system is supplied as Davey’s RainBank PRO rainwater harvesting system pump skid, designed as a centrifugal pump and skid assembly. The Davey’s RainBank PRO rainwater harvesting system pump skid provides a complete transfer and booster water solution. The Davey’s RainBank PRO rainwater harvesting system pump skid is commonly used in modular commercial installations.
RainBank Pro Pump Skid With Rainwater Harvesting System Variations
The product uses model codes such as RBP3-9M1, RBP3-15M1, or RBP5-5M1 representing flow capacity, pump type, and filtration automation type.
| Rainbank Pro Pump Skid With Rainwater Harvesting System – Fixed Speed Single Phase | |||
| Model No. | Motor kW (P2) | Mains Connection | Rainwater Connection |
| RBP3-9M1 | 0.75 kW | 1 1/2″ BSP(F) | 1 1/4″ BSP(F) |
| RBP3-15M1 | 1.5 kW | ||
| RBP5-5M1 | 0.75 kW | 1 1/2″ BSP(F) | 1 1/4″ BSP(F) |
| RBP5-6M1 | 1.1 kW | ||
| RBP5-7M1 | 1.1 kW | ||
| RBP5-8M1 | 1.1 kW | ||
| RBP10-4M1 | 1.5 kW | 1 1/2″ BSP(F) | 1 1/2″ BSP(F) |
| RBP10-5M1 | 2.2 kW | ||
| RBP10-6M1 | 2.2 kW | ||
| RainBank Pro Pump Skid With Rainwater Harvesting System – Variable Speed Three Phase | |||
| MLRBP10-5M3 | 2.2 kW | 1 1/2″ BSP(F) | 1 1/2″ BSP(F) |
| MLRBP10-6M3 | 2.2 kW | ||
| MLRBP10-7M3 | 3.0 kW | ||
| MLRBP10-8M3 | 3.0 kW | ||
| MLRBP15-4M3 | 4.0 kW | MLRBP15-4M3 | MLRBP15-4M3 |
| MLRBP15-5M3 | 4.0 kW | ||
| MLRBP15-6M3 | 5.5 kW | ||
| MLRBP15-8M3 | 7.5 kW | ||
These pump packages are often supplied on a modular pump skid platform for steel base mounting and quick installation into building piping and process system infrastructure. Another configuration may use a modular pump skid design depending on project layout or industrial plan.

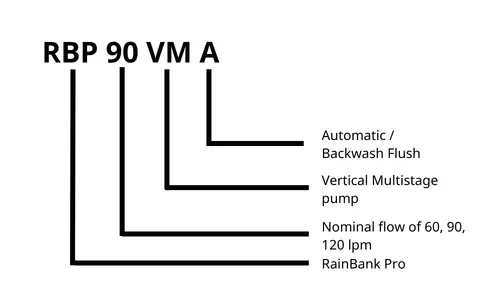

Method of Identification
The Rainwater Harvesting System pump features a serialisation that begins from:
1) An alphabetical order named RBP, which is an abbreviation to define ‘RainBank Pro’ pump skid.
2) This is then followed the nominal flow rate of Litre Per Minute (lpm), and in this example, 90 is the capacity offered by this version of the rainwater harvesting system.
3) What is followed up after the numerical figures of the nominal flow is then met with the Vertical Multistage water pump variant. In this situation, the image example that characterises the method of identification shows that a Vertical Multistage water pump has been fitted in.
4) The last character that represents the pump build-up is an ‘A’, which refers to ‘Automatic‘ or a Backwash Flush.
Identification also supports engineering diagram, flow chart, and process documentation for building design, farm, school, commercial project, or industrial installation planning.

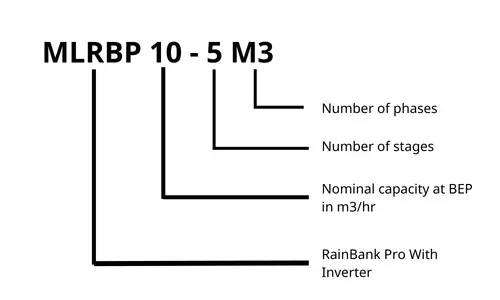

In Davey Malaysia’s Asian catalogue, slight configurable changes can be seen throughout the rainwater harvesting system’s identifier code. The pump skid goes as followed:
1) MLRBP, as before, represents the RainBank Pro pump with an inverter. The inverter, or variable-frequency drive (VFD), is designed to encourage energy-savings potential by enabling the intended number of impellers according to the given status of pipes in-the-use.
2) After the alphabetical order, comes two-digits of numbers that represents the nominal capacity using BEP in metre cube per hour.
3) After the dash, a small digit represents the number of stages found.
4) Lastly, M3, as found from the image as the rear end of the serialisation signifies the number of phases.
Attachment
Pressure Tank
The system includes an 18L pressure tank constructed from powder coated mild steel.
This component stabilizes hydraulic pressure during pump operation, reduces short cycling of the electric motor, and maintains consistent water delivery during demand fluctuations.
It acts as a small pressure vessel within the centrifugal pumping cycle to improve mechanical efficiency and extend system lifespan.
Torrium2 Pressure Controller
The system incorporates an automated control management system housed within a control box enclosure.
The controller manages rainwater prioritization, mains water changeover, low tank level detection, pump fault response, and power loss protection.
Indicator lights allow easy system monitoring, clearly displaying operational status and selected water source.
This integrated control system ensures seamless operation within commercial water treatment and process system installations.
Skid Mount

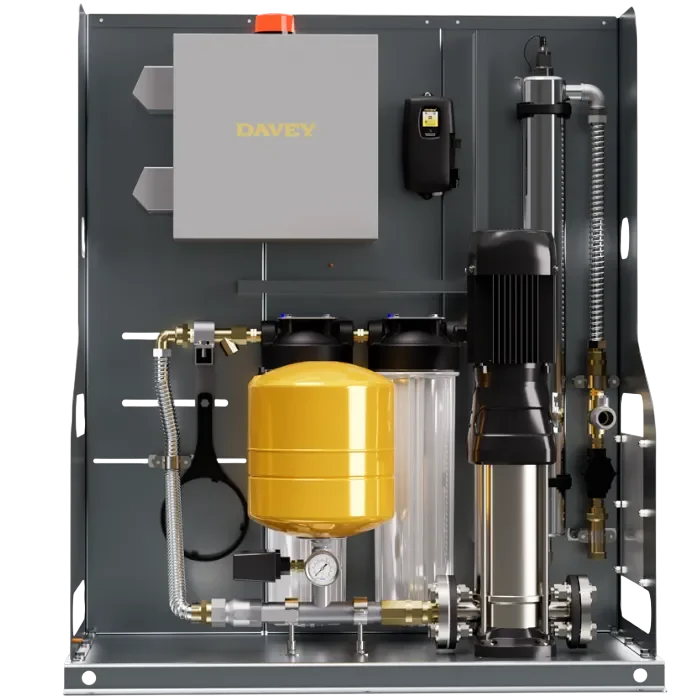

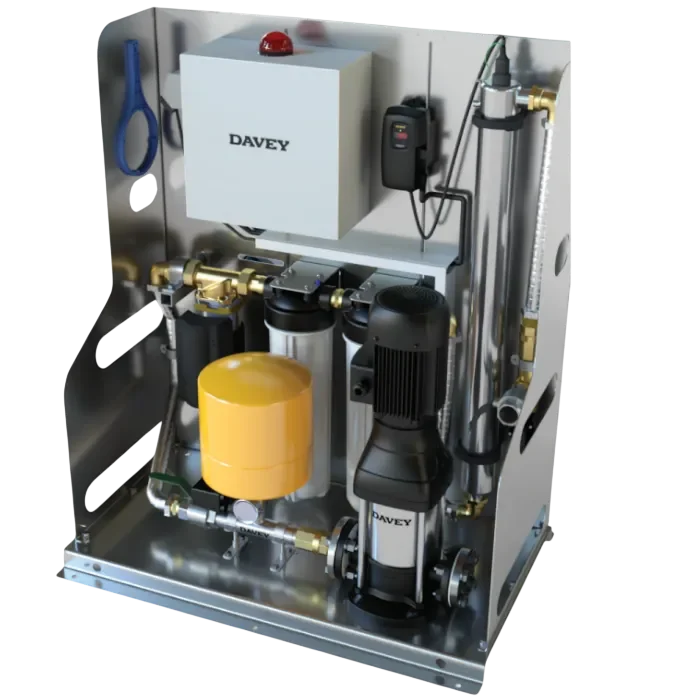

The RainBank PRO is factory assembled, fully tested, and mounted on a galvanized steel base plate, forming a skid-mounted package.
This skid mount configuration supports simplified installation, quick integration into site piping, and efficient connection to rainwater tank, mains supply, and distribution valve systems.
This configuration is supplied as a booster pump skid design, suitable for commercial and industrial buildings. It functions as a complete centrifugal pump and skid assembly and is commonly supplied as a modular pump skid for structed project layouts.
Screen Pre-Filter
The system includes a screen pre-filter as part of the staged filtration process. This component removes larger debris and sediment collected from rooftop runoff, gutters, and rainwater roof water collection systems before entering the pump chamber. It enhances overall filtration performance and protects internal mechanical pump components.
Dual Sediment Cartridge Filtration
The RainBank PRO incorporates dual sediment cartridge filtration using 20 micron and 5-micron cartridges (20PP20J and 5PP20J). This staged filtration process improves water clarity and reduces suspended solids prior to UV treatment. The dual-stage system supports improved water conservation practices and cleaner water delivery for non-potable applications.
UV Disinfection Chamber
The system includes a UV disinfection chamber constructed from 316 stainless steel. The UV unit provides microbial inactivation to ensure consistent water quality. UV lamp life and performance are monitored through the controller display. This stage is critical in supporting safe reuse in commercial rainwater harvesting tank system applications.
Solenoid Valve (Automatic Mains Changeover)
The system incorporates an automated mains water back-up via a solenoid valve with dual check valve. This ensures seamless changeover between filtered rainwater supply and mains water supply when tank levels are low. The solenoid valve plays a key role in maintaining uninterrupted water service in commercial buildings.
Float Level Sensor
The system includes a low-level float switch (FS750-10 with 10cm cable) to detect rainwater tank levels. This component ensures automatic switching to mains water when rainwater storage is insufficient. It supports reliable integration within a rain catchment system, water catchment system, and sustainable drainage system.
Pressure Switch
The system utilizes an independent pressure switch in combination with a float switch.
The pressure switch monitors system discharge pressure and activates or stops the pump accordingly.
This mechanical control device ensures stable hydraulic performance and protects the motor during abnormal operating conditions.
Certification
The ISO 9001-Quality Management: ensures uniformity in the quality of production dependability of products. All Davey products are produced to the same last mile standards thanks to this certificate.
Environmental Management, ISO 14001: Davey believes in its design environmental conscious production processes; this is demonstrated by the fact that the manufacturing processes adhere to the ISO 14001 environmental management
TEFC Motor
Uses single-phase electric motor driven pup systems from 1.1kW to 2.2 kW with insulation class F and IP rated motor protection.
The motor drives the centrifugal hydraulic impeller rotation to transfer water through the filtration and UV process system using electric drive instead of fuel engine, improving efficiency and reliability.
Inlet
Rainwater inlet typically 32mm or 40mm BSP with mains backup inlet around 25mm BSP.
These connections are designed for standard steel or stainless-steel piping design with flange or threaded connection into building distribution network.
Impeller & Diffuser
Uses closed multistage impellers typical for vertical multistage centrifugal pumps.
These impellers support high head pressure generation for booster and transfer water applications in tall building or long piping networks.
O-Ring And Spacer
Internal components that makes up the rainwater harvesting system pump skid would have O-ring fitted inside across all piping sections, and this can include the pump housing, the shaft sleeve, and even the mechanical seal.
For spacers found, these would be within the individual parts where movements are conducting, and it’s placed so that the bits of items do not rub against each other upon motion transferred off mechanical energy by the shaft.
Operating Limits
| Operating Limits | |
| Maximum inlet pressure | 900 kPa |
| Maximum operating pressure (Rainwater) | 690kPa |
| Maximum water temperature | 50 °C |
| Minimum water temperature | 1 °C |
| Maximum Ambient temperature | 45 °C |
| Supply Voltage | 220-240V |
| Max. full load current | 12A |
| Supply frequency | 50Hz |
| Input phase | 1ph |
| Vertical Multistage pump IP rating | IP55 |
| VM Insulation class | F |
| Submersible pump IP rating | IP68 |
| Sub Insulation class | F |
| Controller IP rating | IP56 |
These limits support safe operation in water treatment, filtration, and building water supply cycles including storage tank, well, and borehole supply integration.
Hydraulic Performance

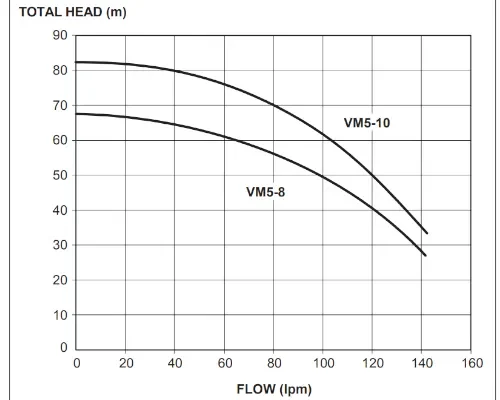

Davey's RainBank Pro Pump Skid With Rainwater Harvesting System - VM5

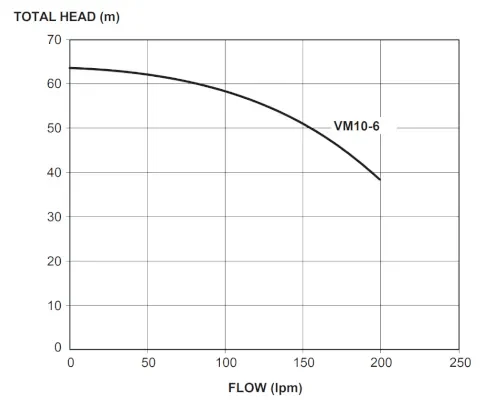

Davey's RainBank Pro Pump Skid With Rainwater Harvesting System - VM10
Materials of Construction
| Materials of Construction | |
| Part | Material |
| Base plate | Galvanised steel |
| Outer cover | Powder coated mild steel |
| Pipe work | 316 Stainless steel |
| Connection fittings | Lead free brass |
| Control box | Powder coated mild steel |
| Manifold | 304 Stainless steel |
| Filter housing | Glass filled nylon |
| Change over solenoid | Plastic |
| UV chamber | 316 Stainless steel |
| Pressure tank | Powder coated mild steel |
These materials support corrosion resistance for rainwater containing sediment and organic contaminants from rainfall, garden, and rooftop collection environments.
Included In The Box
RainBank Pro Pump Skid With Rainwater Harvesting System
User Manual
Proof of Purchase
12 Months of Manufacturer Warranty
