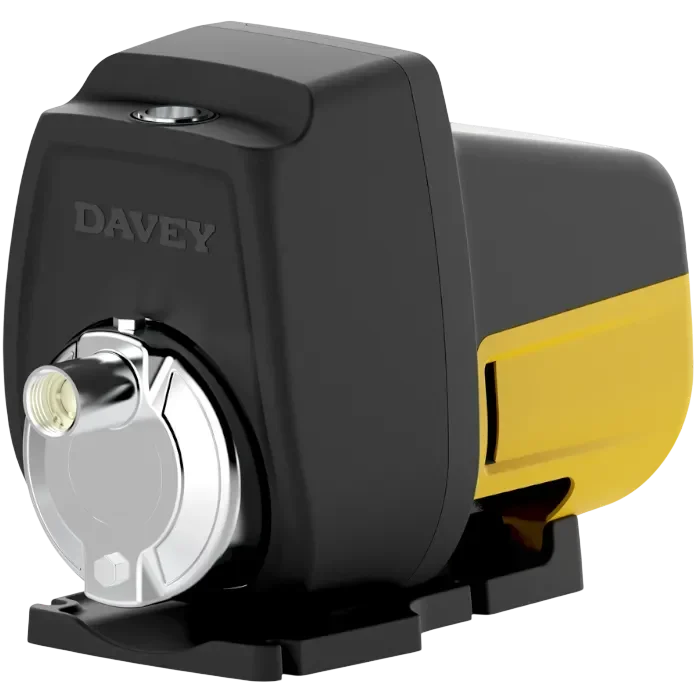

Davey's EvoDrive Inverter Water Pump - ED60-09G
Key features:
- Inverter pump (variable frequency drive) type.
- Suitable for larger households (3-7 shower heads with 5-10 pipes).
- For showering, running taps, & garden use.
- 24 months warranty for pump, motor & controller.
(24 + 6 additional months with e-Warranty scheme) - Adjustable pressure setting based on usage.
- At least 50% energy-saving (water & electricity) water pump.
- Integrates easily with above ground tanks, underground reservoirs, and municipal water connections.
Classified As:
Overview of Davey's EvoDrive Inverter Water Pump - ED60-09G
The EvoDrive ED60-09G Intelligent Constant Pressure Pump by Davey is thoughtfully designed for medium‑sized residential homes, including terrace houses, semi‑detached houses, and other private landed properties. It fits naturally into everyday home environments built with common materials such as timber, brickwork, and reinforced concrete. Whether indoors or outdoors, the pump is well suited to support the water needs of a modern household.
In daily use, the EvoDrive ED60-09G pump ensures a steady and reliable water supply throughout the entire home. It comfortably supports water flow to bathrooms, kitchens, laundry areas, and living spaces, while also meeting outdoor needs such as watering gardens, washing vehicles, or cleaning patios in the front or backyard. With consistent water pressure, household activities like showering, cooking, and cleaning become more comfortable and hassle‑free, without sudden drops or surges in flow.
Beyond convenience, the EvoDrive ED60-09G pump is designed with smart and efficient operation in mind. By adjusting its performance to match actual water demand, it helps avoid unnecessary energy use compared to conventional pumps that run at full power all the time. This not only helps homeowners reduce electricity consumption, but also supports more sustainable living practices. Over the long term, this energy‑efficient approach contributes to lower household running costs and helps reduce overall environmental impact, making the EvoDrive ED60-09 pump a practical and responsible choice for today’s residential homes.
EvoDrive Variable-Speed Drive Pump Variations
Currently, the ED60-09G is the only variation of the EvoDrive water pump available thus far.
The EvoDrive ED60‑09G includes all essential components required for reliable household water pressure management. These components consist of the water pump, electric motor, an integrated variable‑frequency drive (VFD) for intelligent speed control, a pressure tank for system stability, and an electronic pressure control system that continuously monitors and adjusts operation based on water demand. Together, these elements work seamlessly to provide consistent water pressure while improving efficiency and reducing unnecessary energy usage.
Depending on the context in which it is discussed or documented, the product may be referred to by different names. In technical or engineering references, it may be called Davey’s EvoDrive inverter water pump, electric pump, or centrifugal pump. In residential or general household settings, it is often described as a household pump, booster pump, or simply the EvoDrive pump. Regardless of the terminology used, all references point to the same integrated system designed to enhance domestic water supply performance and everyday living comfort.
Method of Identification
The EvoDrive system can be clearly identified through its model designation ED60‑09G, along with the official manufacturer markings, electrical compliance labels, and defined dimensional specifications provided by Davey. These identifiers ensure that homeowners, installers, and service professionals can easily recognize the exact product model and confirm that it meets relevant safety, performance, and installation requirements.
Collectively, the ED60‑09G designation refers to a specific and well‑defined model within the EvoDrive product range. This model is carefully optimized to meet the water pressure and flow demands of medium‑sized residential households, while also being suitable for light commercial applications where reliable and consistent water supply is essential. By combining clear identification with purpose‑driven design, the EvoDrive ED60‑09G offers confidence in both product selection and long‑term performance.
***Important Note: Within the Middle East and Asian region, a ‘G‘ alphabetical order is added onto the back of the product code, making the EvoDrive water pump carry a serial number of ‘ED60-09G‘. The ‘G’ as attached, represents a different plugging system than that of the Australian side, and has no other differences for the overalll output.
Attachment
Built-In Pressure Tank
The EvoDrive pump is supplied with an integrated pressure tank, which plays an important role in ensuring smooth and consistent water pressure throughout the household plumbing system. This built‑in tank helps stabilize pressure whenever water is drawn from taps, showers, appliances, or outdoor outlets, providing a more comfortable and reliable user experience.
The tank is constructed from durable steel, with internal components made from butyl rubber and glass‑filled nylon, materials chosen for their strength, reliability, and long service life. As water demand changes throughout the home—such as when multiple bathrooms are used at the same time or when irrigation systems turn on—the pressure tank absorbs sudden pressure fluctuations. This helps maintain steady water flow across kitchens, bathrooms, and garden taps without noticeable surges or drops.
By reducing rapid pressure changes, the tank significantly minimizes frequent pump start‑stop cycles. This not only improves overall energy efficiency but also reduces mechanical stress on the pump. As a result, both the electric motor and hydraulic components experience less wear, helping to extend the system’s operational lifespan and lower long‑term maintenance costs.
For optimal performance, the pressure tank is fitted with a Schrader valve and comes pre‑charged to 180–200 kPa (1.8–2.0 bar). This factory‑set pressure level ensures a responsive and well‑balanced system that is ideally suited for residential water supply applications, delivering consistent pumping pressure under normal household operating conditions.
Built-In Pressure Tank
A Schrader valve is a common type of air valve used to manage pressure and inflation, and it is fitted to the EvoDrive inverter water pump’s pressure tank. This valve allows the air pressure inside the tank to be checked, adjusted, or recharged when necessary, helping the system maintain proper operating performance.
Most homeowners are already familiar with Schrader valves, as they are the same type of valve found on car tyres, many bicycle tyres, and air‑conditioning systems. It is also the standard valve used at petrol station air pumps, making it easy for service technicians or installers to work with using readily available tools.
By using a widely recognized and standardized valve design, the EvoDrive system ensures convenient maintenance, straightforward pressure adjustment, and long‑term reliability for residential water supply applications.
Electrical Pressure Controller
Unlike traditional household pump systems such as the Torrium2, which rely on a mechanical pressure switch, the EvoDrive system is equipped with a fully electronic pressure controller that is integrated directly into its Variable‑Speed Drive (VSD). This modern control approach represents a significant improvement in how water pressure is managed within the system.
The electronic pressure controller continuously monitors both water pressure and flow conditions in real time. Based on actual household demand, it automatically adjusts the operating speed of the pump to maintain a constant and stable set pressure. Whether a single tap is opened or multiple water outlets are used at once, the system responds smoothly and instantly to changing conditions.
By eliminating mechanical switching components, the EvoDrive system operates more quietly and fluidly, with fewer sudden pressure changes. This results in reduced wear and tear on internal components, improved reliability, and more precise pressure control overall. Homeowners benefit from a smoother water supply, while the pump itself experiences less mechanical stress over time.
Variable-Speed-Drive (VSD/VFD)
One of the most important components of the EvoDrive system is the Variable‑Speed Drive (VSD), also commonly referred to as a Variable‑Frequency Drive (VFD). This inverter‑based control unit regulates the speed of the pump’s permanent‑magnet electric motor according to real‑time water demand within the household.
When water demand is low—such as when only one tap is in use—the VSD reduces the motor speed. This allows the pump to operate efficiently while consuming less electrical energy, lowering power usage measured in kilowatt‑hours and helping to reduce household electricity costs. Lower energy consumption also supports environmentally responsible living by contributing to reduced carbon emissions.
As water demand increases—for example, when multiple bathrooms are being used simultaneously or irrigation systems are operating—the VSD smoothly increases motor speed. This ensures the pump continues to deliver the required hydraulic head and flow rate, maintaining consistent pressure throughout the plumbing system.
This intelligent speed modulation not only improves energy efficiency but also helps minimize water hammer, a common issue in household plumbing caused by sudden pressure changes. By delivering controlled and gradual pressure adjustment, the EvoDrive system enhances overall system efficiency, protects plumbing fixtures, and delivers a more comfortable and reliable water supply for everyday residential use.
Integrated Digital Control Interface
Touch-Panel Control Interface

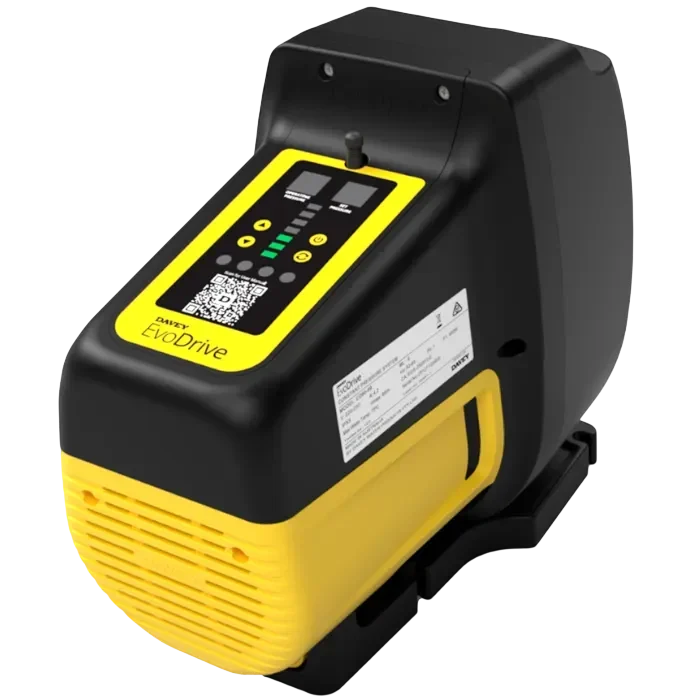

The EvoDrive pump is equipped with an illuminated touch‑panel control interface, allowing both homeowners and technicians to easily monitor and manage the system. Through this intuitive display, users can quickly view the current operating status, adjust pressure settings, and receive clear fault or warning notifications when required.
This user‑friendly interface simplifies both initial commissioning and day‑to‑day operation. Homeowners benefit from straightforward controls and clear visual feedback, while installers and service personnel retain access to detailed system information for setup, diagnostics, and maintenance. The inclusion of digital fault alerts enables early detection of issues such as loss of prime or abnormal operating conditions, helping prevent more serious problems and reducing downtime.
Dry-Run and Loss-of-Prime Protection
As part of its built‑in electronic control system, the EvoDrive pump includes dry‑run protection and loss‑of‑prime protection. These safety features automatically shut down the pump if it detects insufficient water supply or if the pump loses its prime.
By preventing the pump from operating without water, these protections help eliminate potential damage to critical components such as the impeller, mechanical seal, and electric motor. This is particularly important in installations supplied by water storage tanks, where water levels can fluctuate and the risk of running dry is higher. Together, these safety measures enhance system reliability, extend component lifespan, and reduce maintenance costs.
Self-Priming Capability
The EvoDrive pump also features a self‑priming capability of up to 4 metres, offering greater flexibility in installation. This allows the pump to be mounted in a variety of locations, including pump rooms, basements, or ground‑level enclosures, without compromising performance.
This self‑priming function ensures reliable start‑up after servicing or temporary air entry into the suction line. As a result, the pump can automatically restore normal operation with minimal manual intervention. This not only simplifies maintenance procedures but also improves overall ease of use, making the EvoDrive system a practical and dependable solution for residential water supply applications.
EvoDrive ED60-09G Inverter Water Pump's Certification
Quality, Environmental, and Safety Standards Compliance
Davey maintains a strong commitment to quality, safety, and environmental responsibility through compliance with internationally recognised standards. These certifications help ensure that the EvoDrive pump delivers reliable performance, safe operation, and responsible manufacturing practices throughout its service life.
1) ISO 9001 – Quality Management System: Consistent product quality and long‑term dependability are ensured through ISO 9001 Quality Management certification. This internationally recognised standard confirms that Davey applies structured quality control processes across its entire design, manufacturing, and supply chain operations. As a result, EvoDrive pumps are produced to uniform specifications, ensuring reliable performance, consistent build quality, and customer confidence across all markets.
2) ISO 14001 – Environmental Management System: Davey’s commitment to sustainability is demonstrated through compliance with ISO 14001 Environmental Management standards. This certification confirms that environmentally responsible practices are incorporated into manufacturing processes, including efficient resource use, waste reduction, and minimisation of environmental impact. By adhering to ISO 14001, the EvoDrive system aligns with modern expectations for eco‑conscious design and production, supporting more sustainable residential infrastructure.
3) EN 60335-1 – General Electrical Safety Standard: The EvoDrive pump complies with EN 60335‑1, the core European safety standard for household and similar electrical appliances. This standard sets general safety requirements to protect users from hazards such as electric shock, fire, excessive heat, and mechanical injury. It applies to electrical appliances operating up to 250 V (single‑phase) or 480 V (other configurations).
EN 60335‑1 is the European adoption of IEC 60335‑1 and is regularly updated to reflect new technologies, including electronic controls and software‑based safety features. Compliance with this standard ensures that the EvoDrive system meets essential European safety requirements under directives such as the Low Voltage Directive (LVD).
4) EN 60335-2-41 – Safety of Electric Pumps: In addition to general electrical safety, the EvoDrive pump complies with EN 60335‑2‑41, which is specifically dedicated to the safety of electric pumps for household and similar applications. Derived from the international IEC 60335‑2‑41 standard, this regulation covers pumps handling liquids typically up to 90 °C, operating at voltages up to 250 V (single‑phase) or 480 V (other). This standard addresses specific risks associated with pumps, including electrical insulation, mechanical strength, thermal protection, and safe operation under normal and abnormal conditions. It is commonly applied to equipment such as garden, aquarium, submersible, sludge, and domestic water pumps, ensuring that the EvoDrive system meets stringent safety expectations for residential use.

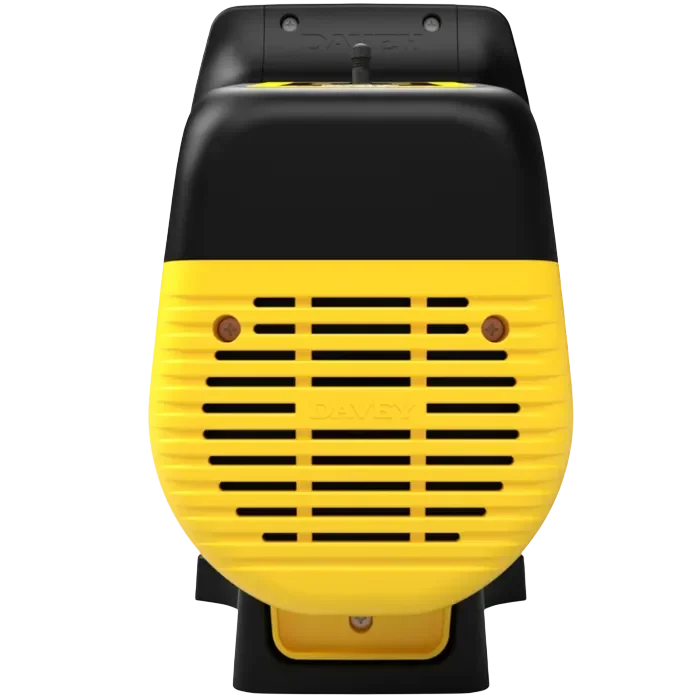

Motor
The EvoDrive pump is powered by a permanent‑magnet electric motor designed specifically for operation with a variable‑speed drive. This advanced motor technology allows the pump to adjust its speed precisely according to water demand, delivering strong performance while using energy efficiently.
An integrated Variable‑Frequency Drive (VFD) controls the motor and manages the smooth conversion of electrical energy into hydraulic output. By continuously matching motor speed to real‑time demand, the system avoids unnecessary power use and ensures efficient operation during both low and high water usage. The motor is capable of reaching speeds of up to 5,200 rpm, providing ample pressure and flow when required, while still minimizing electricity consumption measured in kilowatt‑hours.
To enhance durability and thermal performance, the motor is housed in a powder‑coated aluminium alloy casing. This robust construction improves resistance to corrosion while supporting effective heat dissipation, helping the motor operate reliably over extended periods and contributing to a longer service life.
Quiet and Fully Automatic Operation
By bringing together its intelligent motor, variable‑speed drive, pressure tank, and electronic monitoring systems, the EvoDrive pump operates in a fully automatic and exceptionally quiet manner. This makes it especially well suited for residential environments, where low noise levels and ease of use are important considerations.
The combination of pressure tank buffering, smooth VSD control, and continuous electronic sensing allows the system to respond gradually to changes in water demand. Rather than starting and stopping abruptly, the pump adjusts smoothly, preventing sudden pressure spikes and reducing vibration and audible noise. The result is a calm, stable water supply that operates discreetly in the background, enhancing comfort throughout the home without disruption.
Inlet
The EvoDrive pump features a 1‑inch BSPT female inlet connection, designed to draw clean water either from a storage tank or a direct supply line. This standard connection size allows for easy integration with commonly used household plumbing systems and simplifies installation for both homeowners and installers.
The system is capable of a maximum suction lift of up to 4 metres, providing flexibility in pump placement such as ground‑level installations or pump rooms located slightly above the water source. This suction capability helps maintain adequate Net Positive Suction Head (NPSH) during operation, which is essential for smooth pump performance. By ensuring proper suction conditions, the design minimizes the risk of cavitation, protecting the pump’s internal components and supporting long‑term reliability.
Dual Pump Output Connection
To meet higher water demand or provide added system security, the EvoDrive system is equipped with a dual pump connection output. This feature allows the pump to be configured in a duty or standby‑assist arrangement, supporting connection to a second pump (sold separately).
With this configuration, the system can either share the workload between two pumps or automatically rely on a backup unit in the event of a fault. This setup is particularly valuable for larger residential properties, homes with multiple bathrooms, or properties with irrigation systems that require continuous and stable water pressure. By offering redundancy and load‑sharing capability, the dual pump connection enhances system reliability, ensures uninterrupted water supply, and provides peace of mind for homeowners with demanding water usage needs.
Impellers and Diffusers
The EvoDrive pump utilises a multi‑stage centrifugal hydraulic design that incorporates three precision‑engineered impellers, each paired with a matching diffuser. This multi‑stage configuration allows the pump to build pressure efficiently in stages, resulting in smooth and reliable water delivery for household applications.
The impellers are manufactured from 304 stainless steel, offering excellent resistance to corrosion and wear, even when operating continuously in demanding residential environments. Between each stage, Noryl diffusers are used to guide water smoothly and efficiently, minimizing hydraulic losses while maintaining high performance.
Together, this carefully engineered arrangement delivers stable flow rates and consistent water pressure, ensuring dependable operation for domestic water supply, multi‑bathroom homes, and irrigation systems. The result is a pump system that provides steady performance, long service life, and consistent comfort for everyday residential use.
Backplate & Mechanical Seal
A high‑quality mechanical seal, made from silicon carbide and carbon, is used to separate the hydraulic (liquid) side of the pump from the electric motor. This critical component forms a reliable barrier that prevents water from entering the motor housing during operation.
The use of silicon carbide provides excellent hardness and wear resistance, while the carbon face ensures smooth sealing performance under continuous operation. Together, these materials offer strong protection against leakage, even under varying pressure and temperature conditions commonly experienced in residential water supply systems.
By effectively isolating the motor from the pumped liquid, the mechanical seal helps protect internal components, reduces the risk of premature failure, and supports long‑term reliability and durability. This robust sealing solution ensures the EvoDrive pump can operate safely and consistently over extended periods, delivering dependable performance for daily household use.
O-Ring And Spacers
Nitrile (NBR) O‑rings are used throughout the EvoDrive pump assembly to maintain pressure integrity and prevent water leakage at critical joints and interfaces. These O‑rings are well suited for residential pumping applications due to their excellent resistance to water, wear, and compression over extended periods of operation.
Working in combination with gaskets, washers, and precisely machined internal clearances, the O‑rings ensure proper sealing, accurate component alignment, and stable mechanical support within the pump assembly. This coordinated sealing system allows the pump to operate reliably under varying pressure and flow conditions, helping to maintain consistent performance while minimizing the risk of leaks or loss of efficiency.
By using durable sealing materials and a robust sealing layout, the EvoDrive system achieves dependable long‑term operation and enhanced reliability for everyday household water supply applications.
ED60-09G Operating Limits
| EvoDrive ED60-09G Inverter Pump’s Operating Limits | |
|---|---|
| Flow rate @ 300 kPa | 65 LPM |
| Flow rate @ 400 kPa | 50 LPM |
| Flow rate @ 500 kPa | 35 kPa |
| Maximum casing pressure | 1,000 kPa / 10 bar |
| Default set pressure | 300 kPa / 10 bar |
| Maximum pressure | 700 kPa / 7 bar |
| Maximum flow | 105 LPM |
| Maximum suction lift | 4m |
| Default cut-in pressure | 240 kPa (60 kPa less than operator set pressure) |
| IP rating | X5 |
| Operating ambient / temperature air | 0-50°C / 32-122°F |
| Pressure tank valve connection | Schrader valve |
| Tank pre-charge (default) | 180 to 200 kPa / 1.8 to 2 bar |
| Max humidity | 93% |
| Operating water temperature range | 3-70°C / 37.4-158°F |
| Nature of fluids | Clean, clear, non-corrosive, with neutral pH |
| Solids in fluids | Maximum sand / silica concentration 40g/m3 |
| Safety | EN60335.1 EN60335.2.41 |
| EMC | EN55014 |

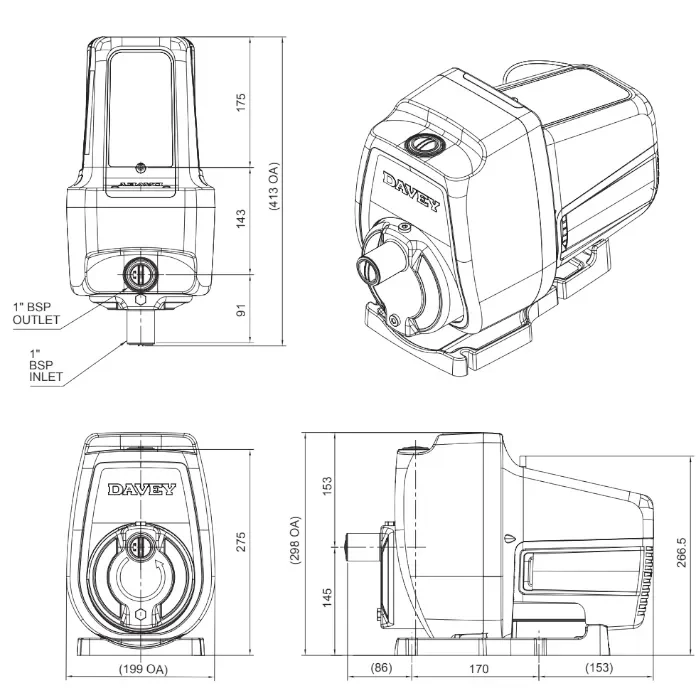

ED60-09G EvoDrive Inverter Water Pump's Dimensions
| Dimensions (mm) | |
|---|---|
| Inlet | 1″ BSPT F |
| Outlet | 1″ BSPT F |
| Number of stages (impellers) | 3 |
ED60-09G Hydraulic Performance
The EvoDrive pump is designed to deliver consistent water pressure even as household water demand changes, ensuring reliable hydraulic performance at all times. As more fixtures are used or system pressure requirements increase, the pump automatically adjusts its output to maintain stable operation without sudden drops in pressure.
At a typical operating pressure of 300 kPa, the pump is capable of supplying approximately 65 litres per minute (ℓ/min), making it well suited for normal household activities such as showering, washing, and kitchen use. As system pressure increases, the flow rate gradually adjusts, delivering around 50 ℓ/min at 400 kPa and 35 ℓ/min at 500 kPa. This controlled reduction in flow ensures efficient operation while maintaining consistent pressure throughout the plumbing system.
The EvoDrive pump also offers a maximum flow capacity of up to 105 ℓ/min, providing sufficient water supply to support multiple fixtures operating simultaneously. This makes the system ideal for homes with several bathrooms, laundry facilities, and outdoor irrigation points or hose taps, ensuring dependable performance even during periods of high water demand.
By combining intelligent pressure regulation with strong flow capability, the EvoDrive pump delivers a balanced and comfortable water supply, supporting everyday household use while maintaining energy‑efficient and reliable operation.
ED60-09G Electrical Data
| EvoDrive ED60-09G Inverter Pump’s Electrical Data | |
|---|---|
| Voltage (V) | 220-240 |
| Max motor speed (rpm) | 5,200 RPM |
| Incoming power frequency (Hz) | 50-60 |
| Input power (P1 kW) | 0.90 |
| Maximum current (A) | 4.2 |
| Insulation class | F |
ED60-09G Materials of Construction
| EvoDrive ED60-09G Inverter Pump’s Materials of Construction | |
|---|---|
| Part | Material |
| Casing | Stainless steel |
| Impellers | Stainless steel |
| Stages (casing) | Stainless steel |
| Pump shaft | Stainless steel |
| Diffusers | Noryl |
| Mechanical seal | SiC/C |
| O-Rings | Nitrile |
| Plugs | HPB59-1 Brass |
| Motor shell and lantern bracket | Aluminium alloy with powder coat finish |
| Outer cover | Polycarbonate |
| VSD housing | Aluminium alloy with powder coat finish |
| Pressure tank | Steel / butyl / glass-filled nylon |
Q-H Curve
Included In The Box
EvoDrive ED60-09G Inverter Water Pump
8 Litre Pressure Tank
User Manual
Proof of Purchase
24 Months of Manufacturer Warranty (Increased by Another 6 Months with e-Warranty Scheme)
