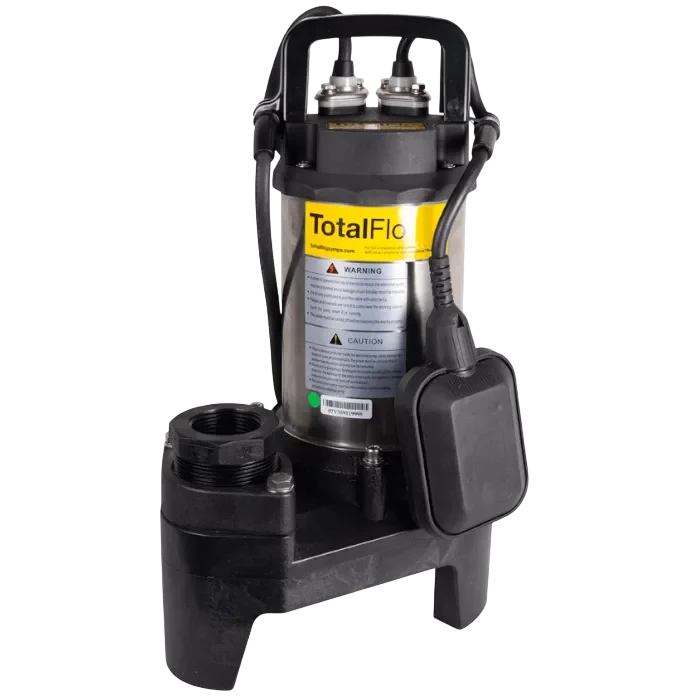

Davey's TotalFlo Sump Pump - TF180S
Key features:
- Submersible pump type.
- High flow capacity of up to 180 lpm.
- For flood management & drain clearing.
- 24 months warranty for pump & motor.
(24 + 6 additional months with e-Warranty scheme) - Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's TotalFlo Sump Pump - TF180S
For below-ground needs, the TotalFlo submersible sump pumps by Davey provide quiet, effective performance for moving water with small soft solids (up to 18mm). Perfect for wastewater sumps, garden features, and general drainage, they’re built to handle everyday residential demands with ease.
Model Numbers: TF180S, TF230S
- Designed for clean and wastewater pumping
- Exceptionally quiet operation – perfect for residential use
- Auto float switch for hands-free operation
- Handles water temperatures up to 40ºC
- Pumps soft solids up to 18mm in suspension
- Submersible up to 5 metres
- Includes 2” BSP(F) outlet with 1¼” reducer
Features & Benefits
- Domestic sump pump.
- Designed to pump clean and wastewater.
- Submersible up to 5 metres.
- 2 year warranty.
Applications
The TotalFlo range of submersible sump pumps are suitable for pumping small soft solids (up to 18mm max.) in fluid suspension.
They are extremely quiet in operation which makes them ideal for applications within residential areas for wastewater sumps, waterfalls and general drainage.
Lift Wells, Car Park Sumps, Basements, Cable Pits, etc.
Electrical Data
| Electrical Data & Operating Limits | ||
|---|---|---|
| TF180S | TF230S | |
| Motor size | 330W | 750W |
| Voltage | 220-240V ~ | |
| Frequency | 50Hz | |
| Phase | Single | |
| Insulation Class | F | |
| IP | X8 | |
| Nominal Speed | 2,850 rpm | |
| Auto float operation | Yes | |
| Particle size | 18mm (soft & in water) | |
| Outlet size | 2” BSP(F) (1¼" reducer included) | |
| Max. head | 5m / 16.40 ft | 8m / 26.25 ft |
| Max. flow | 180 lpm | 230 lpm |
| Max. water temp. | 40ºC / 104ºF | |
Hydraulic Performance
Installing And Operating Instructions
The TotalFlo range of Submersible Sump Pumps are suitable for pumping small soft solids (up to 18mm Max.) in fluid suspension.
They are extremely quiet in operation which makes them ideal for applications within residential areas for sullage pits, waterfalls and general drainage.
Suitable Fluids: This pump is designed to pump waste water, clean water and water containing mild pollutants at ambient temperatures. It is not suitable for pumping flammable or corrosive fluids, nor fluids at elevated temperatures (Max. 40°C). If you are unsure as to the suitability of the fluids, contact your TotalFlo dealer for advice.
Installation Guide
This TotalFlo pump is completely submersible up to 5 metres and should be placed on a solid flat surface (if not available, sit the pump on timber or house bricks) in the vertical position. Pump should always be installed so that it will be clear of settled silt or debris. It is recommended to fit the biggest diameter hose possible, to obtain the best flow from the pump. To remove or lift the pump from deep wells or pits connect a rope to the handle during installation.
Automatic versions should be placed in a sump which has adequate dimensions so as not to restrict the movement of the float switch. Automatic controlled pump units have float switches factory set to provide the correct high (ON) and low (OFF) liquid levels
Motor Cooling
All models rely upon water flow around the motor shell for correct motor cooling.
All models are suitable for partially submerged operation only for short periods up to 10 minutes.
Where the pump is required to operate for longer than 10 minutes partially submerged, or where water flow over the
motor may not be assured, it is advisable to direct a low flow (2-3lpm) cooling jet of water over the motor shell (eg. when installed in large tanks or ponds).
Power Connection
A power connection point should be provided by a qualified electrician, in compliance with the requirements of AS 3000. Single phase models are rated for 220/240 Volts, 50Hz operation, and may be connected to a standard 10 amp power outlet.
All single phase models have automatic reset thermal overload protection built in, ie. should overload on motor cause
thermal to open circuit and switch motor off, it will automatically reset and switch the motor on when the motor has cooled down sufficiently, usually within a few minutes.
NOTE:
If the cord is damaged, the appliance should be repaired by a qualified Davey Water Products Pty Ltd’s Service Centre. The supply cord must only be replaced by a suitably qualified person with a genuine TotalFlo replacement supply cord.
1. Long extension leads should be avoided as they often have insufficient current carrying capacity to run electric motors, hence they can cause substantial voltage drop and operating problems.
2. Minimum voltage at the electric motor must not fall below 216 Volts for single phase, otherwise motor damage may result which is not claimable under guarantee.
3. If the electrical fittings in your country make it necessary to remove the plug (where fitted) from the lead fitted to the motor, care should be taken to ensure that the earth conductor green / yellow in the lead is properly connected to a good earth. This work should be undertaken by a suitably qualified person.
4. Expansion and contraction inside the motor due to heating and cooling is vented via the lead. The lead end must never be sealed off, but must always be open to the atmosphere.
5. ALWAYS disconnect pump from power supply prior to commencing ANY maintenance or adjustment.
Fault Check
Pump will not start:
Manual Type
- Check to ensure power is available and the outlet is switched ON.
- Blown fuse or tripped circuit breaker (replace/reset or call an electrician).
- If an extension lead is fitted, check connection.
- Impeller jammed – disconnect from power supply, and ensure impeller is free to rotate.
Thermal cut-out switch has not reset (wait 5 minutes).
If pump does not start from new then the seal has possibly stuck due to the length of time it has been standing since it was manufactured. In this case, disconnect from power supply, remove bottom strainer and turn the impeller nut clockwise, this will release the initial friction on the seal and once the power is connected will allow the pump to work.
Auto Type (with float switch)
- Check all in (1) above.
- Float switch jammed against sump side wall.
- Insufficient liquid to place the float switch in the ON position, i.e. higher than the horizontal.
Pump runs, but does not pump water or pumps insufficient water:
- Insufficient liquid in sump.
- Strainer, impeller and/or discharge pipework blocked.
- Impeller damaged.
- Air lock in discharge pipework. Ensure pump is filled with water.
- Excessive back pressure or lift.
Pump will not stop:
Manual Type
- Must be switched off at the power supply.
Auto Type (with float switch)
- Float switch is prevented from moving to the fully down position.
- Float switch may be faulty.
Pump runs for short periods only (the overload protection has tripped):
- Some foreign body is clogging the impeller.
- The liquid temperature is too high.
- Pump operating in non submerged position or with no water movement around motor.
- Electrical fault.
Do not run the pump dry as this will damage the seal and reduce the life of the pump.
Where hair, lint or other string-like material may be in the water, the pump should be regularly checked. It might become necessary sometimes to clean the suction strainer, impeller and/or discharge pipework.
With simple cleaning and regular examination this pump should give reliable service. In the event of seal failure, pollution of the pumped liquid could occur due to leakage of the seal lubricant.
TotalFlo Warranty
TotalFlo products will be (under normal use and service) free of defects in material and workmanship from the date of original
purchase for the period specified under the Warranty Period.
Warranty Period: 2 years
As notified, no spare parts or repair facilities (infield or workshop service) are available for TotalFlo products. If your TotalFlo product is defective we will replace the TotalFlo product free of charge.
TotalFlo Sump Pump Warranty Procedure
Problem solve using the Installation & Operating Instructions, especially the troubleshooting sections. If this does not solve the problem, or the product is suspected of being defective, stop using it and contact the original place of purchase for advice.
If the dealer you purchased the TotalFlo product from could not help you resolve the issue, they may require you to return the product to them for review and inspection. Returning the product to the place of purchase is at your cost and is your responsibility. You must provide evidence of the date of original purchase (i.e. dated receipt) as proof of purchase.
The warranty claim will be assessed by us on the basis of our product knowledge and reasonable judgement and will be accepted if:
– a relevant defect is found
– the warranty claim is made during the relevant Warranty Period; and
– none of the excluded conditions listed below apply
You will be notified of the warranty decision, and if it has been accepted your replacement product will be dispatched to the dealer for collection from where you purchased it from. If your warranty claim is found to be invalid you must organise collection of the product at your expense or authorise its disposal.
The TotalFlo warranty does not cover normal wear and tear or apply to a product that has:
- been subject to misuse, neglect, negligence, damage or accident.
- not been used, operated or maintained in accordance with the Installation and Operating Instructions.
- not been installed in accordance with the specified instructions or by suitably qualified personnel.
- been modified or altered from original specification, had repairs attempted or tampered with in any way.
- been subject to conditions such as incorrect voltage supply, lightning or high voltage spikes, or damage or,
- breakdown from exposure to electrolytic action, cavitation, sand, corrosive, saline or abrasive liquids.
To the extent permitted by law, we shall not be liable for any loss of profits or any consequential, indirect or special loss, damage or injury of any kind whatsoever arising directly or indirectly from TotalFlo products. This limitation does not apply to our liability for failure to comply with a statutory consumer guarantee applicable to your TotalFlo product under local laws and does not affect any corresponding rights or remedies that may be available to you under local laws.
In this regard, our goods come with guarantees that cannot be excluded under certain consumer laws (including the Australian Consumer Law). For example, if you purchase our goods in Australia you are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
*The TotalFlo warranty is in addition to any rights provided by consumer protection laws and regulations in the country of purchase. Should your product be defective you can choose to make a claim under applicable consumer laws or the TotalFlo warranty.
Included In The Box
TotalFlo Sump Pump
User Manual
Proof of Purchase
24 Months of Manufacturer Warranty (Increased by Another 6 Months with e-Warranty Scheme)
