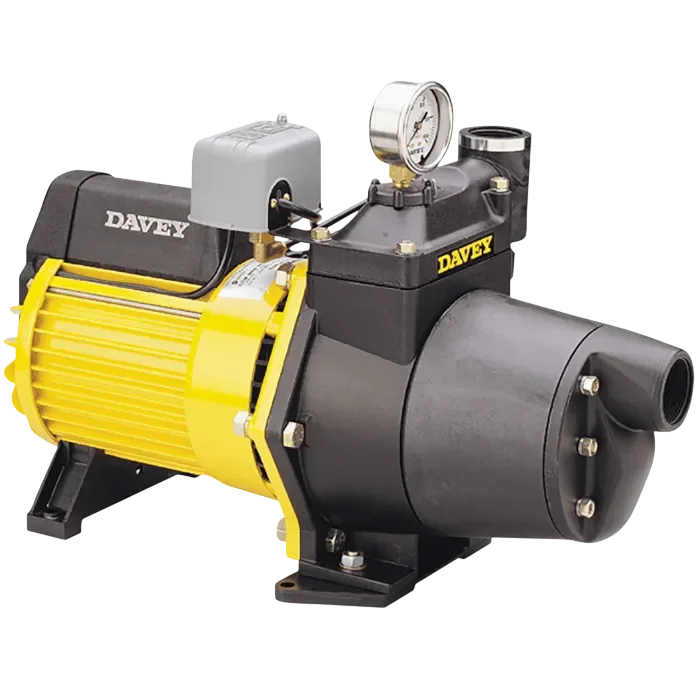

Davey's Shallow Well Water Jet Pump

Key features:

Standard automatic pressure system type.
Suitable suction depths down to 50m.
For garden sprinklers, stock watering and washdown; other popular applications include supplying water from dams, creeks, rivers and bores, or tank filling use.
24 months warranty for pump & motor.
Fixed pressure setting on every usage.
Easy installation, no setting required.

Classified As:

Overview of Davey's Shallow Well Water Jet Pump

The Davey’s Shallow Well Water Jet Pump range (models 095S, 095S1T, 125S, 125S1T, and 165S0, 165S1T) is designed for construction, plumbing, irrigation, and residential water supply systems. These pumps are ideal for drawing liquid water from dams, creeks, rivers, boreholes, aquifers, and storage tanks where the suction lift does not exceed 7.5 meters (24.6 ft).

They are commonly used for tank filling, potable water (drinking water), stock watering, sprinkler systems, car wash, booster washer, and general farm water supply. Built with corrosion-resistant materials, the pump features a marine-grade aluminium casing with internal Rilsan® lining, protecting against soil salination, groundwater exposure, and environmental stresses.

The series comes with a 2-year guarantee and complies with ISO 9001 (Quality) and ISO 14001 (Environmental Management) standards, ensuring water security and safe operation in house, garden, and DIY home systems.

The Davey’s Shallow Well Water Jet Pump is widely recognized for its adaptability in hydrogeology, groundwater treatment, and aquifer management, making it suitable for both residential houses and heavy-duty farm irrigation.

Davey's Shallow Well Water Jet Pump Variations

The Shallow Well Jet Pump series consists of three primary models:

Shallow Well Series
095S
095S1T
125S
125S1T
165S
165S1T

The 165S model is available in both singe-phase and three-phase configurations.

Method of Identification

The numeric value within the product code of the Shallow Well (095, 126, 165) represents the pump’s maximum capacity.

Towards the last section of the identifier, the letter “S” denotes Shallow Well configuration, meaning the pump is designed for suction lifts up to 7.5 m (24.6 ft) and does not require a deep well injector system.

For the Torrium2 digital controller iteration, the end includes a number “1” which indicates single-phase operation.

The final letter “T” symbolises that the system includes the Torrium2 controller.

Attachment

Pressure Tank

Although not supplied as a built-in component, the pump is suitable for operation in conjunction with a Davey Supercell pressure tank.

When connected to a pressure tank, the system becomes an automatic pressure water supply system.

The pressure tank stores pressurised water and reduces frequent pump cycling, thereby improving energy efficiency, maintaining more stable water pressure, and extending pump lifespan by minimising start-stop operation.

Pressure Switch

A pressure switch is fitted as standard on all complete pump models.

This component enables automatic pressure system operation without requiring manual intervention.

It ensures that the pump responds to water demand changes by activating when pressure and deactivating when sufficient pressure is restored.

This feature allows the pump to function efficiently in domestic and irrigation systems where water demand varies.

Pressure Controller (Torrium2 – Model TT70)

The Shallow Well Jet Pump is integrated with the Torrium2 electronic controller (TT70), which replaces the traditional pressure switch and pressure tank system. The Torrium2 continuously monitors water flow and system pressure, automatically starting the pump when a tap is opened and stopping it when water demand ceases. Unlike conventional pressure switches that operate based purely on pressure differential, the Torrium2 operates based on flow detection, allowing the system to deliver more consistent water pressure.

Additionally, the controller provides loss-of-prime protection by detecting abnormal flow conditions and automatically shutting down the pump to prevent dry running. It also incorporates built-in surge protection (varistor) to safeguard internal electronics against voltage spikes, improving system reliability in rural power supply conditions.

Pump Mounting Base

Although the system does not include a full skid frame, it is equipped with durable, corrosion-resistant mounting feet that provide stability during operation. These mounting feet help reduce vibration transmission and allow secure installation on flat concrete or structural bases. Proper mounting ensures alignment stability and reduces mechanical stress on pipe connections.

40mm / 50mm Barrel Union (BSP Fitting)

The inlet size is 1½” BSP Female, and the outlet size 1¼” BSP Female, requiring compatible BSP fittings.

The barrel union pare is one of the most, if not, the most crucial component when it comes to integrating the water pump with an existing hydration system, just as it seamlessly matches two separately found piping sizes to enable a continuous water flow rate from one area of reservoir to the designated source.

A watertight O-ring can also be discovered as part of the attachment needed to seal three-piece fitting from leaking liquids out of the Shallow well centrifugal pump.

Interchangeable Jet And Venturi Kits

One of the key features of the Shallow Well Jet Pump is its interchangeable jet and venturi system.

Different jet kit numbers (e.g., 22690, 22693, etc.) allow the pump’s hydraulic performance to be adjusted to match required duty conditions.

Uses the venturi effect for suction and intake efficiency. Adaptable for car wash, booster washer, irrigation, and potable water treatment systems.

Davey's Shallow Well Water Jet Pump's Certification

ISO 9001 Quality Management: helps to maintain consistent product quality and reliability. This accreditation ensures that all Davey products are produced in accordance with the same standards across the supply chain.

Environmental Management, ISO 14001: Davey exhibits its commitment to ecologically conscious design and production by following ISO 14001 environmental management standards in its manufacturing procedures.

TEFC Motor

The Davey Shallow Well Jet Pump is fitted with a Davey-manufactured electric motor designed for reliable performance in demanding farm and irrigation in demanding farm and irrigation environments. The motor operates at 2-pole, 2900 rpm, 50Hz, delivering consistent fixed-speed operation suitable for high-pressure water supply applications. Single-phase models operate on a 220-250V power supply, while the 165S model is also available in 380-450V three-phase configuration, providing flexibility for higher-capacity installations.

The Davey’s Shallow Well Water Jet Pump motor is engineered for heavy-duty, portable, and modern booster washer systems, ensuring reliable operation in both residential houses and construction sites.

For single-phase models, the motor uses a Permanently Split Capacitor (PSC) design, incorporating P2 metal jacket “fail-safe” capacitors to enhance starting reliability and operational stability. The motor is equipped with double contact seal C3 high-temperature greased bearings, ensuring smooth rotation, reduced friction, and extended service life. Additionally, all single-phase models include inbuilt thermal overload protection with automatic reset, which protects the motor from overheating dua to overload or abnormal operating conditions.

The motor housing is constructed from aluminium with a polyester powder-coated finish, providing corrosion resistance and long-term durability. Overall, the motor is engineered to deliver dependable performance, low maintenance operation, and strong protection against environmental and electrical stresses.

LTEFC Motor with IP56 Protection

The pump is powered by a Davey LTEFC (Long Term Enclosed Fan Cooled) motor with an IP56 protection rating. This provides strong resistance against dust ingress and water spray, making it suitable for harsh farm environments. The motor is also designed to handle high ambient temperatures and voltage fluctuations, improving reliability in remote areas.

Suction Inlet

The Shallow Well Jet Pump features a 1 ½” BSP Female suction inlet and a 1 ¼” BSP Female discharge outlet.

The pump is designed for a maximum suction head of 7.5 meters, making it suitable for shallow water sources such as dams, tanks, rivers, and creeks.

Proper suction pipe sizing and installation of a quality foot valve are essential to prevent air leakage and loss of prime, ensuring stable and efficient pump operation.

Hydrogeology & Water Safety: The Davey’s Shallow Well Water Jet Pump supports groundwater extraction from aquifers, dug wells, sand points, artesian wells, and tube wells. Proper installation prevents contamination from bacteria, viruses, parasites, fungi, and feces, which can casue waterborne diseases.

Darcy’s Law and Groundwater Flow Equation: Darcy’s Law and Groundwater Flow Equations apply to aquifer tests when determining pump efficiency. Ensures water security for residential houses, farms, and gardens. Can be used with submersible pumps or as a Shallow Well Booster Pump for potable water treatment.

Volute

The volute is a snail-shaped chamber built into a centrifugal pump to manage fluid flow after it leaves the impeller. As the impeller rotates, it imparts kinetic energy to the liquid, pushing it outward. The volute captures this high-speed fluid and gradually reduces its velocity by providing an expanding passageway. Through this controlled deceleration, kinetic energy is converted into pressure energy. By directing the fluid smoothly to the outlet, the volute not only enhances pressure generation but also minimizes turbulence and energy losses within the pump system.

Impeller & Diffuser

The pump is a single-stage jet assisted centrifugal design, meaning it uses one impeller to generate pressure while the jet/venturi system enhances suction performance.

The impeller is made from glass-filled polycarbonate, providing high strength, durability, and corrosion resistance.

The diffuser is constructed from glass-filled Noryl, which offers good dimensional stability and resistance to wear.

This combination ensures efficient energy transfer from the motor to the water while maintaining long-term reliability in clean water applications.

Backplate & Mechanical Seal

The backplate is manufactured from glass-filled Noryl, providing structural support and corrosion resistance within the pump assembly.

The mechanical seal consists of a ceramic stationary seal ring and a carbon rotating seal ring, forming a durable sealing interface that prevents water leakage along the motor shaft.

This seal arrangement ensures reliable performance under pressure while protecting the motor from water ingress.

O-Ring & Spacers

The pump uses nitrile rubber O-rings to provide effective sealing between pump components and prevent air or water leakage.

Nitrile material offers good resistance to water exposure and moderate temperature variations.

The priming plug incorporates an O-ring seal to allow secure hand-tighten operation. These sealing components help maintain prime and ensure consistent hydraulic performance.

Operating Limits

Operating Limits
Model	095S	095S1T	125S	125S1T	165S	165S1T
Maximum capacity (@260 kPa, nil suction) lpm	95	95	126	156	165	165
Maximum suction head (m)	7.5
Maximum water temperature	50°C
Minimum water temperature	1°C
Inlet size	1 ½” BSP(F)
Outlet size	1 ¼” BSP(F)

Hydraulic Performance

Hydraulic performance varies depending on the selected jet kit. Different jet/venturi combinations (e.g., 22690, 22691, 22693, etc.) allow the pump to match required duty conditions.

Maximum shut-off pressures range approximately from 480 kPa up to 830 kPa, depending on model and jet kit selection.

Flow rate decreases as suction lift increases, following standard centrifugal pump characteristics.

Modern Applications

Residential house supply (DIY plumbing, potable water).
Garden irrigation with PVC pipes and plastic tubes.
Car wash systems with high-pressure spray nozzles.
Heavy-duty portable booster washer (up to 1000 bar cleaners).
Construction sites for groundwater pumping and soil salination control.
Hydrogeology field tests for aquifer depth and water table monitoring.

The Davey’s Shallow Well Centrifugal Pump is also used in modern irrigation systems and residential potable water supply.

Electrical Data

Electrical Data
Shallow Well Pump – Type	095S	095S1T	125S	125S1T	165S	165S1T
Supply voltage (1 ⌀)	220-250
Supply voltage (3 ⌀)	N/A	N/A	380-450	N/A	N/A	N/A
Output power (kW)	1.1		1.4		1.8
Maximum rated current @ 240V/415V (amps)	7.2		8.5		10/4.2	10
Locked rotor current @240V/415V (amps)	21		25		39/24	39
Insulation class	F
IP rating	IP56
Maximum ambient temperature	50°C			N/A	N/A	N/A
Starting (1 ⌀)	P.S.C.
Torrium2
Model voltage	N/A	N/A	N/A	TT70
Voltage	N/A	N/A	N/A	110-240V±10%
Phase	N/A	N/A	N/A	Single
Hz	N/A	N/A	N/A	50 / 60 Hz
IP Rating	N/A	N/A	N/A	IP56
Maximum load current	N/A	N/A	N/A	10A
Maximum motor size @ 240V input	N/A	N/A	N/A	1.8 kW
Surge protection	N/A	N/A	N/A	Varistor

Materials of Construction

Materials of Construction
Part	Material
Suction cover	Aluminium-Rilsan° lined
Pump body	Aluminium-Rilsan° lined
Discharge port	Aluminium-Rilsan° lined
Diffuser	Glass filled Noryl
Backplate	Glass filled Noryl
Jet/Venturi housing	Glass filled Noryl
Impeller	Glass filled polycarbonate
Jet	Acetyl
Venturi	Acetyl
Seal ring (stationary)	Ceramic
Seal ring (rotating)	Carbon
O-rings	Nitrile rubber
Priming plug	Nylon
Shaft sleeve	316 stainless steel
Motor shell	Aluminium
Motor shell finish	Polyester powder coat
Capacitor cover	Polypropylene
Terminal box cover	Polypropylene
Mounting feet	Xenoy®

Shallow Well With Torrium2

Shallow Well Pump With Torrium2
Pump Model	Jet Kit No.	Total Suction Head		Delivery Head in Metres / Feet																		Maximum Shut-Off Pressure		Pressure Switch Setting
				26	85	28	92	34	112	38	125	41	135	48	157	55	180	62	203	66	217
				Delivery Head in kPa / Psi
				260	38	280	41	340	49	380	55	410	59	480	70	550	80	620	90	660	96
		m	ft	Output per minute in litres / gallons																		kPa	Psi	kPa	Psi
95ST 1 ph 1.6 input kW (P1) 1.1 output kW (P2) 7.2A	22690 kilowatt input (P1) (Jet-Black Venturi-Green)	0	0	95	20.8	91	20	60	13.1	42	9.2	29	6.3	N/A								480	70	260 to 380	38 to 55
		1.5	5	86	18.9	83	18.2	55	12	40	8.7	27	59	N/A								476	69
		4	13	70	15.3	69	15.1	45	9.8	30	6.5	17	3.7	N/A								450	65
		6	20	55	12	55	12	37	8.1	22	4.8	10	2.1	N/A								430	412
		7.5	25	42	9.2	42	9.2	34	7.4	15	3.2	N/A										412	60
	22691 (Jet Brown Venturi-White)	0	0	N/A				65	14.2	53	11.6	46	10.1	31	6.8	19	4.1	N/A				680	98	340 to 510	49 to 74
		1.5	5	N/A				60	13.1	50	10.9	43	9.4	29	6.3	17	3.7	N/A				670	97
		4	13	N/A				48	10.5	41	9.0	35	7.6	24	5.2	14	3.0	N/A				645	93
		6	20	N/A				38	8.3	37	8.1	32	7	21	4.6	11	2.4	N/A				630	91
		7.5	25	N/A				31	6.8	31	6.8	28	6.1	20	4.3	10	2.1	N/A				620	90
125ST 1 ph 2.1 Input kW (P1) 1.4 Output kW (P2) 8.5A
	22693 kilowatt input (P1) (Jet-Black Venturi Black)	0	0	126	27.7	126	27.7	100	21.9	72	15.8	51	11.2									482	70	260 to 380	38 to 55
		1.5	5	113	24.8	113	24.8	84	18.4	64	14	45	9.8	N/A								470	68
		4.0	13	93	20.4	93	20.4	70	15.3	50	10.9	28	6.1	N/A								445	64
		6	20	70	15.3	70	15.3	59	12.9	36	7.9	11	2.4	N/A								425	62
		7.5	25	57	12.5	57	12.5	43	9.4	18	3.9	N/A										400	58
	22694 (Jet-Green Venturi-Brown)
		0	0	N/A				90	19.7	78	17.1	67	14.7	47	10.3	28	6.1	N/A				660	96	340 to 510	49 to 74
		1.5	5	N/A				82	18	73	16	63	13.8	43	9.4	24	5.2	N/A				650	94
		4	13	N/A				67	14.7	66	14.5	56	12.3	37	8.1	19	4.1	N/A				630	91
		6	20	N/A				53	11.6	53	11.6	52	11.4	34	7.4	16	3.5	N/A				615	89
		7.5	25	N/A				44	9.6	44	9.6	44	9.6	33	7.2	15	3.2	N/A				605	88
	22695 kilowatt input (P1) (Jet-Yellow Venturi-White)
		0	0	N/A								60	13.1	45	9.8	31	6.8	20	4.3	N/A		780	113	410 to 590	59 to 86
		1.5	5	N/A								54	11.8	39/td>	8.5	28	6.1	17	3.7	N/A		750	109
		4	13	N/A								48	10.5	36	7.9	25	5.4	15	3.2	N/A		730	106
		6	20	N/A								38	8.3	33	7.2	23	5	13	2.8	N/A		710	103
		7.5	25	N/A								31	6.8	28	6.1	19	4.1	10	2.1	N/A		690	100
165ST 1 ph 2.4 Input kW (P1) 1.8 Output kW (P2) 10A
	22697 kilowatt input (P1) (Jet-White Venturi-Yellow)
		0	9	165	36.2	165	36.2	105	23	77	16.9	62	13.6	N/A								490	71	260 to 380	38 to 55
		1.5	5	144	31.6	144	31.6	90	19.7	67	14.5	53	11.6	N/A								480	70
		4	13	120	26.3	120	26.3	82	18	58	12.7	38	8.3	N/A								454	66
		6	20	90	19.7	90	19.7	76	16.7	52	11.4	26	5.7	N/A								440	64
		7.5	25	70	15.3	70	15.3	60	13.1	32	7	N/A										415	60
	22698 (Jet-Red Venturi-Red)	0	0	N/A				112	24.6	88	19.3	76	16.7	51	11.2	26	5.7	N/A				630	91	340 to 510	49 to 74
		1.5	5	N/A				100	21.9	82	18	71	15.6	47	10.3	22	4.8	N/A				622	90
		4	13	N/A				88	19.3	75	16.4	64	14	41	9	16	3.5	N/A				598	87
		6	20	N/A				70	15.3	64	14	57	12.5	32	7	8	1.7	N/A				572	83
		7.5	25	N/A				54	11.8	54	11.8	50	10.9	26	5.7	N/A						552	80

Important Information

Plumbing Connections: Inlet – 1½” (38 mm) BSPP Female. Outlet – 1¼” (32mm) BSPP Female – all models.
To convert litres/minute to gallons/hour multiply by 13.2. All imperial data is an approximation of metric figures.
Specifications subject to change without notice.
All models are supplied with plug and lead for 220/250 volt 50Hz operation.

Included In The Box

Shallow Well Water Jet Pump

User Manual

Proof of Purchase

24 Months of Manufacturer Warranty
