Davey's Hurricane Swim-Jet Swimming Pool Pump - M7402

Key features:

Standard automatic pressure system type.
Suitable for swim jet installations in fibreglass pools for sport and rehabilitation purposes.
36 months warranty.
Fixed pressure setting on every usage.
Easy installation. no setting required.

Classified As:

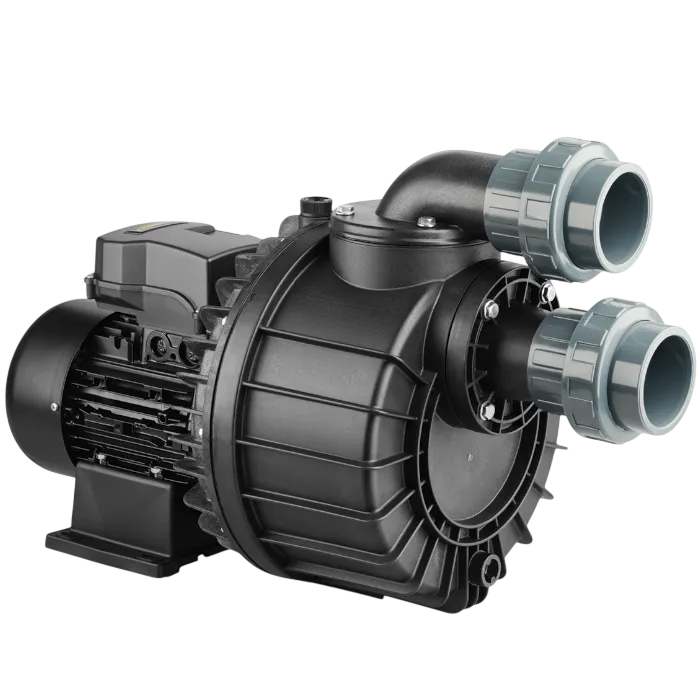

Overview of Davey's Hurricane Swimming Pool Pump - M7402

The Hurricane Swim-Jet swimming pool pump system by Davey is designed to withstand a broad spectrum of aquatic activity, such as swimming pools, swimming baths, wading pools, paddling pools, and large facilities, such as Olympic pools, health clubs, leisure centers, natatorium.

The pump is intended to be used in fiberglass and concrete pools to provide efficient operation in swimming, physical therapy, water sports, underwater sports, water polo, and recreation in general. Its centrifugal pump system is such that efficient liquid water movement is maintained, which is good in sustaining sterilized pool conditions, salt water chlorination technology, and proper algae and larvae control in combination with sand filtration systems.

Davey’s Hurricane Swim-Jet's Product Code

Davey’s Hurricane pump range is also defined in performance-based as well as internal product reference.

However, it may simply be known as booster pump, circulation pump, filtration pump, centrifugal pump, and even the electropump, and the ordering, replacement and equipment tracking are done using internal codes. The structured identification enables the pump to be properly configured to suit installations spanning small residential pools to bigger and more leisure and commercial installations.

Method of Identification

Each Hurricane pump is identified by its model designation, electrical approval markings, and manufacturer reference. These identifiers ensure the correct selection of pump horsepower, volumetric flow rate, pressure capability, and suction performance for the intended swimming pool application.

Clear identification also assists installers, lifeguards, and maintenance personnel in managing setup, replacement, and long-term operation within pump rooms or underground equipment areas.

Attachment

40mm / 50mm Barrel Union (BSP Fitting)

Hurricane Swim-Jet pump has specifically designed barrel union connections to enable the pump to be joined with the pool plumbing within a short duration and in a secure way.

The unions used are only supportive of 65mm unions. Nevertheless, PVC adaptors can also be easily connected to DN80 connection of pipes (Accessory code: M3689). This connection of barrel unions is applicable to BSP (British Standard Pipe)-style fittings, providing the stable and safe installations and water supply.

Air Switch Activation System

The Hurricane swimming pool pump system has had various built-in features that add to the usability, safety, and long-term reliability without the use of a highly complicated electronic control system.

Among the main integrated functions is the air switch activation system giving swimmers the opportunity to turn on or off the pump directly into the pool.

This saves the user the hassle of walking out of the water to reach a control panel and it is much safer to the electrical appliances especially in places like swimming baths, health clubs, and recreational centers.

Adjustable Turbo Swim-Jet Outlet

The other notable aspect is adjustable turbo swim-jet outlet that offers an array of flow options to match the users and activities. The system can be used to facilitate mild rehabilitation exercises, physical therapy or more intense resistance swimming and training by changing the jet intensity.

The adjustable jet stream nozzle provides the direction and concentration of the flow of water to be fine-tuned in order to provide an effective and comfortable swimming experience in various pool sizes and layouts.

Adjustable Turbo Swim-Jet Outlet

Air Mixture Dial

An air mixture control dial is also incorporated in the pump, and it allows the entrainment of air in the water stream to be controlled.

This aspect injects air bubbles to the jet flow, making it more turbulent and more natural in swimming to the user and also provides greater comfort. This air water mix enhances a message-like experience on the user in spa, hot tub, and relaxation settings, and enhances the general user satisfaction.

Self-Priming: Self-priming of the pump, in several meters, increases the ease of installation and daily use, also. This enables the system to come back to its original state in a short time even after service, level modifications, or transient air breakage in suction line, and the result is the system has steady operation without the necessity of manual priming. This is of great use in underground pump rooms or installations where the pump is installed above the water level.

Double Insulated to Water Circuit

Regarding safety and durability, the pump is equipped with the double insulation of water circuit and equipotential bonding point, which is in line with the electrical standards in the pool, as well as limited the impact of electrical faults. These safety-orientation options render the pump applicable in the public and commercial installations where compliance about regulations and safety of the user is paramount.

Swimming Pool Pump's Certifications

The ISO 9001-Quality Management guarantees consistency in production quality and dependability of products. Davey products are all manufactured to the same standards across the supply chain courtesy of this certificate.

Environmental Management, ISO 14001: Davey is committed to its design and production processes being environmentally conscious; this is evidenced by the fact that manufacturing processes comply with the ISO 14001 environmental management standards.

AS/NZS 3000:2018: The Australian/New Zealand Wiring Rules is the most important standard, which stipulates the minimum safety requirements and best practices to be followed during the installation of electrical installations in Australia and New Zealand. It regulates the way electrical systems should be designed, built and certified to be safe and conforming.

Motor

The Hurricane pump is driven by an electric motor designed to deliver consistent mechanical energy for continuous pool operation. Motor output, commonly expressed in horsepower, is matched to the hydraulic demands of pool circulation, filtration, and swim-jet performance.

The motor operates efficiently within defined electrical limits, converting electrical energy into rotational force that drives the impeller. This design ensures dependable performance whether the pump is used as a circulation pump, booster pump, or centrifugal pump in a complete pool system.

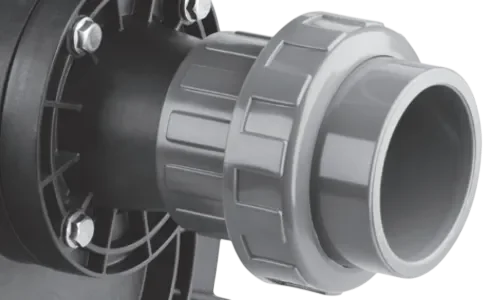

Inlet

The inlet configuration supports strong suction performance while maintaining adequate Net Positive Suction Head (NPSH) to reduce the risk of cavitation.

This allows smooth water intake from swimming pools, spas, or hot tubs, even in underground installations. Balancing of suction increases the efficiency of the entire system and shields the internal parts when the system runs long.

Integrated Suction and Return-Jet: In terms of installation, the Hurricane pump is designed with an inbuilt suction and return system and therefore both the intake of water and the discharge of these waters could be handled within one swim-jet assembly. In this design, the complexity of installation is greatly lowered because it only penetrates the wall of a single pool. It is also better in enhancing hydraulic balance; it minimizes the pipe runs, minimizes pressure losses and minimizes air leakage or suction inefficiencies.

Impellers And Diffusers

The Hurricane pump has a precision engineered impeller which creates the flow and pressure by accelerating water using the diffuser at the heart of the pump. This centrifugal force supplies the volumetric rate of flow necessary to sustain efficient pool circulation and filtration as well as swim-jet work. The design is designed to perform optimally in the high-flow aquatic applications and stable hydraulic performance.

Backplate And Mechanical Seal

The motor and the wet end are segregated using the backplate and mechanical seal assembly to ensure that the wet end does not get wet, and there is no resistance to the rotation of the shaft.

This sealing system is necessary to integrate integrity of pressure and protect the motor against the exposure to the pool water. It is important in long term reliability especially in salt water chlorination environment.

O-Ring And Spacers

The pump assembly has O-rings and spacers that guarantee proper alignment and leakages. These elements sustain the pressure level and ensure that no water is lost in the event of constant use.

The O-Ring also plays an important role in protection of internal components like impeller, motor shaft, and mechanical seal.

Operating Limits

Operating Limits
Maximum Temperature	35°C / 95 °F
Maximum Ambient Temperature	50°C / 122°F

Hydraulic Performance

Hydraulic performance is designed in swimming pools or spa applications that need the powerful consistent water flow. The pump provides a ratio of the pressure and flow that can be used in filtration, swim jets, and booster.

This performance guarantees a positive sand filter performance, successful sterilization, and uniform water flow by.

Electrical Data

Operating Limits
Model	M7402
Voltage	220-250 V
Phase	Single
Supply Frequency	50 Hz
Run Current	12.5 A
Motor Input Power	3,000 W
Motor Output Power	2,300 W
RPM	2,900 RPM
Enclosure Class (IP)	55
Insulation Class	F
Approval Number	W2442

Materials of Construction

Materials of Construction
Pump Body, Foot, & Diffuser	Glass-filled polypropylene
Shaft	Stainless steel
Mechanical Seal	Carbon / ceramic
Supply Frequency	UV-Stabilised / Corrosion-resistant
