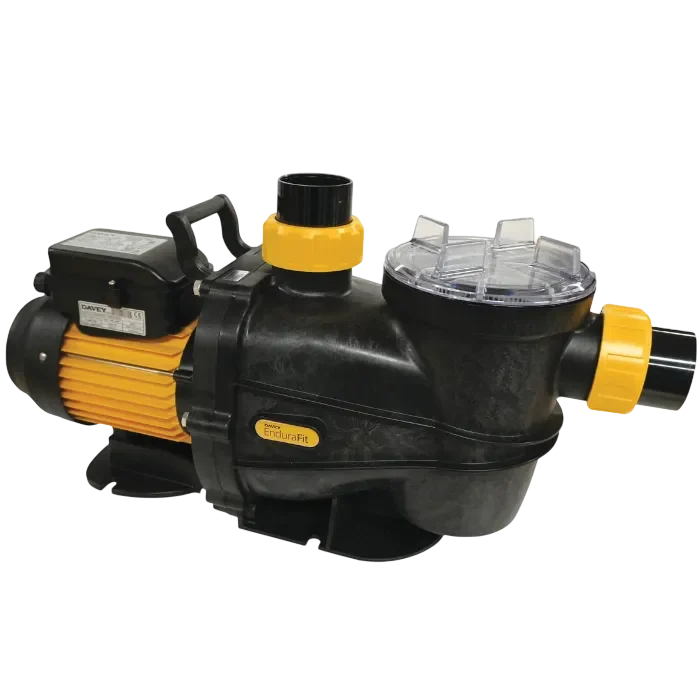

Davey EnduraFit Swimming Pool Pump
Key features:
- Standard automatic pressure system type.
- Suitable for filtration, spa jets, heating and in-floor cleaning systems.
- For plunge pools, swim spas and pools up to 130,000 litres.
- 5-star energy savings rating (tested by a joint government & industry program).
- 36 months warranty for pump & motor.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey EnduraFit Swimming Pool Pump
Built to Endure, Engineered to Perform
EnduraFit Pumps by Davey are designed to deliver dependable performance with smart engineering and premium features to make pool care easy. From improved water flow to quieter operation, every feature is designed to maximise your pool enjoyment while minimising maintenance time.
Ideal for filtration, spa jets, heating and in-floor cleaning systems. Models to suit plunge pools, swim spas and pools up to 130,000 litres.
Why EnduraFit? You Can Depend on Davey
For over 90 years, Davey has helped Australians enjoy crystal-clear, easy-to-maintain pools. The new Davey EnduraFit Pool Pump is the next step in premium pool pump performance – perfectly suited for a wide range of pools, whether it’s an in-ground oasis, a backyard plunge pool or a swim spa.
These pumps are ideal for customers who:
- Want whisper-quiet operation.
- Reduced energy costs and usage.
- Requires strong, steady circulation.
- Value low-maintenance, long-lasting equipment.
- Upgrading from older, noisy or inefficient pumps.
EnduraFit's Features & Benefits
Features:
- High performance: Designed with a custom-shaped impeller and diffuser that work together to move water efficiently and reduce pressure loss. Greater water flow, less head loss, and energy-smart operation.
- Engineered for durability: Made from high-grade engineering plastics for superior operational life. Features a strong single-piece strainer pot and volute for maximum strength. A 316 stainless steel mechanical seal offers excellent resistance to corrosion.
- Universal fit: Developed to specifications that retrofit a wide variety of existing installations.
Safe and Stable: Engineered with Thermal Overload and Smart Motor Protection, designed to prevent water ingress from the wet-end, ensuring complete motor protection. Large and solid mounting helps to reduce vibrations and noise. - Quieter, Smoother Operation: The heavy-duty pump body and design reduces water turbulence and operating noise, while the robust support base and added insulation help absorb vibration.
- Save time and money: Move more water, using less energy. The energy-efficient design lowers electricity bills without sacrificing performance.
- Better water quality: Smooth, consistent flow improves chemical distribution and debris removal.
Benefits:
- Large 2.05L Leaf Basket, with easy to remove transparent lid.
- 50mm Barrel unions supplied for simple installation.
- High performance motor, 303 grade stainless steel shaft and thermal overload protection.
- Efficient impeller and diffuser, designed for improved head and water flow performance.
- Unique Smart Motor Protection, designed to prevent motor damage.
- High grade 316 stainless steel mechanical seal protection, for long service life and reduced maintenance.
- Drain plugs, enables quick draining of the casing for easy removal and maintenance.
EnduraFit Eco's Features & Benefits
Features:
- Variable speeds for different applications: allows you to switch and program speeds between ECO Flow (lowest speed for best energy efficiency^) for pool filtration, Mid Flow for pool cleaning and High Flow for all other pool applications.
- Programmable intelligence: allows for fully programmable speed options between Eco, Mid and High Flow speeds, maximising your pool efficiency, use and performance.
- Universal fit: developed to specifications that retrofit a wide variety of existing installations.
- Safe and Stable: engineered with Thermal Overload and Smart Motor Protection, designed to prevent water ingress from the wet-end, ensuring complete motor protection.
- Quieter, Smoother Operation: the heavy-duty pump body and design reduces water turbulence and operating noise, while the robust support base and added insulation help absorb vibration.
- Save time and money: move more water, using less energy. The energy efficient design lowers electricity bills without sacrificing performance.
- Better water quality: smooth, consistent flow improves chemical distribution and debris removal.
^ Running your pump at lower speeds uses less energy to turn over the same amount of water over longer time periods.
Benefits:
- 3 speed variable control with fully programmable speed options for maximum performance and efficiency.
- Easy to remove, see through lid – with large leaf basket.
- 50mm ABS quick coupling barrel unions for easy connection and installation.
- Efficient impeller and diffuser, designed for improved head and water flow performance.
- Unique Smart Motor Protection design and Auto reset thermal pretection to prevent motor damage.
- High grade 316 stainless steel mechanical seal protection, for long service life and reduced maintenance.
- Drain plugs, enables quick draining of the casing for easy removal and maintenance.

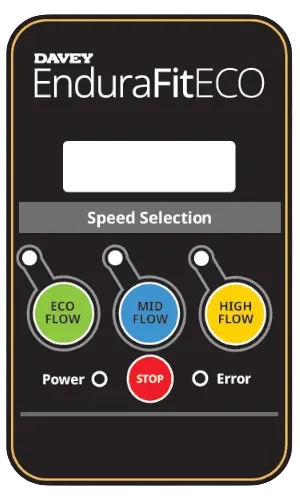

EnduraFit Eco's Low Energy Operation
Low Energy Operation:
Your EnduraFit ECO Series pump has 3 speed settings which are also programmable:
1. Eco Flow – Lowest Speed
2. Mid Flow – Medium Speed
3. High Flow – Highest Speed
*Eco Flow mode provides the lowest speed and therefore the greatest energy savings.
*For programmable speed options and settings, please contact Davey, your Davey dealer or Davey pool pump installation professional.
| Operation | Recommended Speed Setting |
|---|---|
| Pool filtration | Eco Flow |
| Automatic pool cleaner operation | Mid Flow |
| Backwashing your media filter | High Flow |
| Manually cleaning your pool | |
| Water feature operation | |
| Spa jet operation | |
| Solar pool heating |
Models In The Range
EnduraFit Models In The Range (Up To 125-130,000 Litres):
DEF290 – 1hp single speed
DEF430 – 1.5hp single speed
DEF520 – 2hp single speed
EnduraFit Eco Models In The Range (Up To 93,000 Litres):
DEFE245 – 1hp variable speed
DEFE385 – 1.5hp variable speed
Operating Limits
| Parameter | Value |
|---|---|
| Max. Water Temperature | 45°C |
| Max. Ambient Temperature | 50°C |
| Max. Casing Pressure | 350 kPa |
EnduraFit Electrical Data
| Specification | DEF290 | DEF430 | DEF520 |
|---|---|---|---|
| Voltage (VAC) | 220-240 | ||
| Frequency (Hz) | 50 | ||
| Run current (A) | 4.7 | 6.9 | 9 |
| Motor input power P1 (kW/hp) | 1.06 / 1.4 | 1.61 / 2.2 | 2.05 / 2.7 |
| Motor output power P2 (kW/hp) | 0.8 / 1.0 | 1.1 / 1.5 | 1.5 / 2.0 |
| Nominal speed (rpm) | 2810 | 2850 | 2880 |
| Enclosure class (IP) | X5 | ||
| Insulation class | F | ||
| Sound pressure level (dBa @ 1m) | 63 | 66 | 69 |
| Max water temperature (°C) | 45°C / 113°F | ||
| Max ambient temperature (°C) | 50°C / 122°F | ||
| Max casing pressure (kPa) | 350 kPa | ||
EnduraFit Eco Electrical Data
| Specification | DEFE245 | DEFE385 |
|---|---|---|
| RPM |
Eco Flow – 1900 rpm Mid Flow – 2400 rpm High Flow – 2850 rpm |
Eco Flow – 1900 rpm Mid Flow – 2400 rpm High Flow – 2850 rpm |
| Enclosure Class (IP) | IPX5 | |
| Insulation Class | F | |
| Voltage (VAC) | 220–240 | |
| Supply Frequency (Hz) | 50 | |
| Run Current (A) | 6.1 | 9.0 |
| Input Power P1 (kW / hp) |
Eco: 0.30 / 0.40 Mid: 0.55 / 0.74 High: 0.91 / 1.24 |
Eco: 0.45 / 0.60 Mid: 0.85 / 1.15 High: 1.42 / 1.93 |
| Output Power P2 (kW / hp) |
Eco: 0.24 / 0.32 Mid: 0.44 / 0.60 High: 0.73 / 1.00 |
Eco: 0.36 / 0.48 Mid: 0.68 / 0.92 High: 1.15 / 1.50 |
EnduraFit Dimensions
| Model | DIM A | Mounting Holes Diameter | Inlet/Outlet PVC | Net Weight (kg) |
|---|---|---|---|---|
| DEF290 | 626 | Ø9mm | 132 front / 120 rear Barrel unions, 40 and 50mm tails | 17 |
| DEF430 | 645 | 20 | ||
| DEF520 | 685 | 23 |

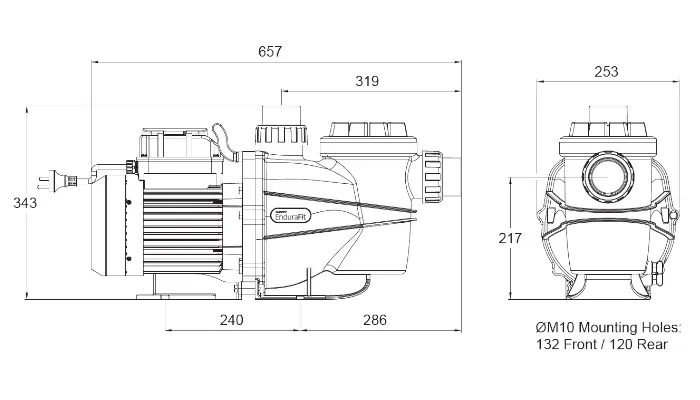

EnduraFit Eco Dimensions
| Model | Mounting Holes Diameter | Inlet/Outlet PVC | Net Weight (kg) |
|---|---|---|---|
| DEFE245 | Ø9mm | 132 front / 120 rear 50 | 14.0 |
| DEFE385 | 15.5 |
EnduraFit Swimming Pool Pump's Hydraulic Performance
EnduraFit Eco DEFE245 Swimming Pool Pump's Hydraulic Performance

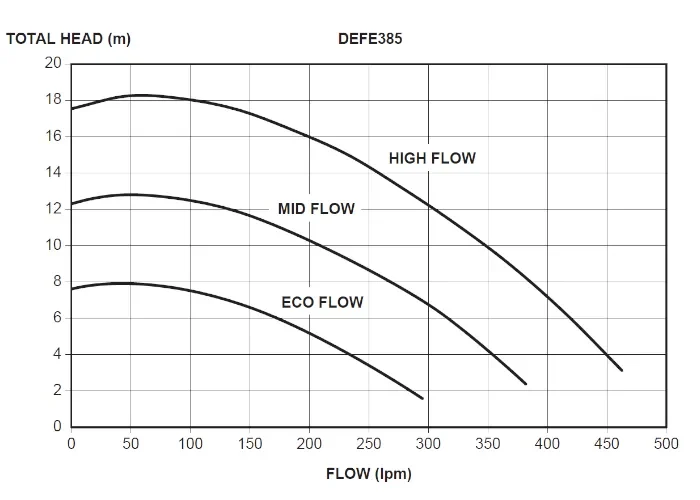

EnduraFit Eco DEFE385 Swimming Pool Pump's Hydraulic Performance
Included In The Box
EnduraFit Swimming Pool Pump
User Manual
Proof of Purchase
36 Months of Manufacturer Warranty
