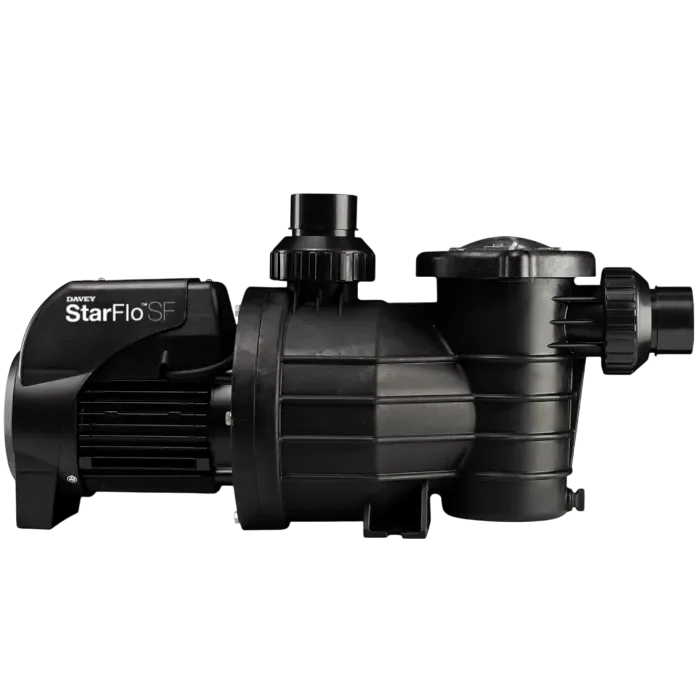

Davey's StarFlo SF Swimming Pool Pump
- Standard automatic pressure system type.
- Suitable for retrofit applications with multi-fit barrel unions.
- For in-ground and above ground pools, large swim spas and plunge pools.
- 36 months warranty.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's StarFlo Swimming Pool Pump
The StarFlo SF swimming pool pump by Davey is a reliable, high-efficiency single-speed machine designed to keep your pool water clean and well-circulated every day. Whether you own an in-ground or above-ground pool, or a swim spa, plunge pool, or a solar-heated pool system, StarFlo SF is ideal for you. This pool pump provides high hydraulic performance, great durability, and easy installation.
Davey's StarFlo SF Variations
Davey produces only several number of product variations for the StarFlo SF swimming pool pump. There are four model numbers of the pump which are DSF750, DSF900, DSF1100, DSF1350. Each of the pump differ mainly by motor power and hydraulic output:
| Product Code | |
| DSF750 | DSF1100 |
| DSF900 | DSF1350 |
Every product code fits to a different motor input/output power rating and performance curve while maintaining the same core pump platform.

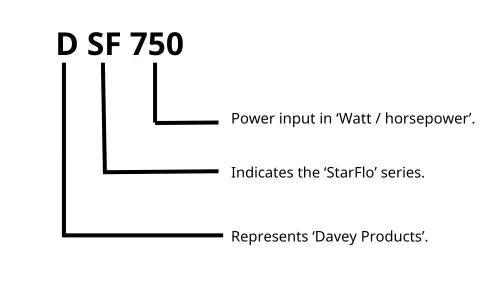

Method of Identification
In the StarFlo SF pool pump model DSF750, the number “750” is the identifier which the manufacturer assigns to represent the value of motor input power (W/hp).
This applies to all Davey StarFloSF product range.
Attachment
40mm / 50mm Barrel Union (BSP Fitting)
One of the biggest advantages of the StarFloSF is its true multi-fir capability. The pump is supplied with self-aligning barrel unions that accept both 40 mm and 50 mm PVC plumbing, making it ideal for replacements where pipework already exists. These union always use British Standard Pipe (BSP) threads and also come in variants for different type of pipes.

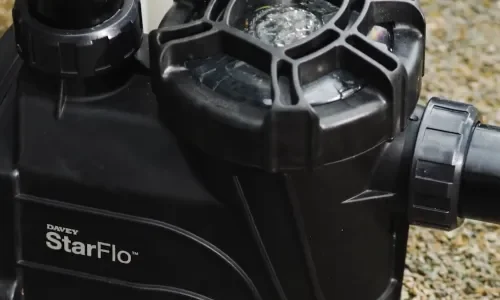

See-through Strainer Lid
One of the biggest advantages of the StarFloSF is its true multi-fir capability. The pump is supplied with self-aligning barrel unions that accept both 40 mm and 50 mm PVC plumbing, making it ideal for replacements where pipework already exists. These union always use British Standard Pipe (BSP) threads and also come in variants for different type of pipes.
StarFlo SF Swimming Pool Pump's Certifications
Consistent production quality and product dependability are guaranteed by ISO 9001-Quality Management. All Davey products are manufactured using consistent standards throughout the supply chain thanks to this certificate.
Environmental Management, ISO 14001: Davey’s dedication to environmentally conscious design and production methods is demonstrated by the fact that manufacturing procedures adhere to ISO 14001 environmental management standards.
TUV020457EA: The mandatory safety approval and certification number issued by TÜV Rheinland Australia for the Davey StarFlo (SF) and SureFlo (DSF) series of swimming pool pumps.

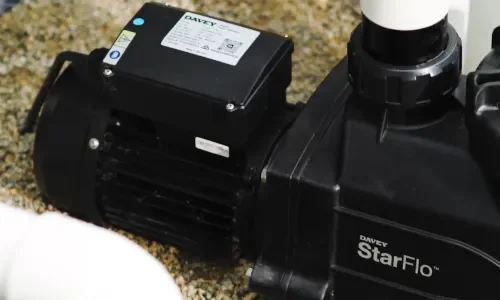

Motor
The multi-speed pump principle—an electric motor with a single speed—is incorporated into the StarFloSF’s primary design. Since this principle can sustainably operate to give the pool the required circulation, it does not manufacture the pump versions. The motor moves the centrifugal impeller through a closed shaft system, which enables the motor to draw in a large volume of water and pump it out through the plumbing system. With this configuration, the pump can be utilized continuously in a designated pump chamber, either by hand or with the help of an external timer.
| Type | Heavy-duty, totally enclosed motor |
| Speed | 2900 RPM |
| Phase | Single-phase |
| Voltage | 220-240V |
| Frequency | 50 Hz |
| Insulation Class | F |
| Enclosure Rating | IP55 |
| Thermal Protection | Built-in, self-resetting overload |
| Motor Shaft | 316 stainless steels (corrosion resistant) |
Swimming Pool Pump Selection Guide
316 Stainless Steel Shaft
Superior corrosion resistance is offered by a 316 stainless steel motor shaft, particularly in chemical, food processing, and marine settings. This is different from ordinary 304 SS, where 316 SS performs better due to the additional molybdenum. For rigorous industrial automation and washdown applications, it also provides exceptional strength, durability, and hygiene.
Built-In Thermal Protection
Power to an electrical circuit, such as a motor, is automatically restored by a self-resetting thermal overload protection mechanism. following a trip brought on by overheating from too much current. After cooling down, the circuit automatically shuts its contacts again.

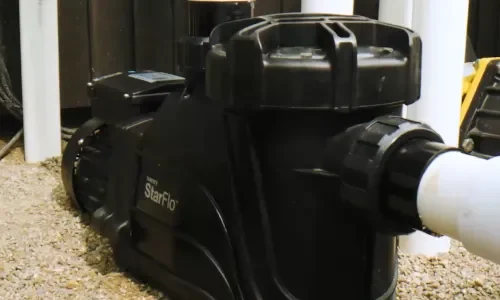

Pump's Inlet
This is where the fluid enters the pump.
The inlet has a suction force that draws water, where lower pressure is found at the inlet, causing liquids to be pulled in before being funneled into its impellers for rotational (centrifugal) force.
PPE Plastic Pump Housing
High-performance engineering thermoplastic PPE Plastic, sometimes referred to as Polyphenylene Ether (or Oxide), is renowned for its exceptional heat resistance, dimensional stability, electrical insulation, and minimal water absorption.
This plastic is frequently combined with polystyrene (PS) to enhance the processability of appliance, electrical, and automotive parts.
Closed-Design, Noryl Impellers
Trouble-free and long-life hydraulic performance is further ensured by the use of the Noryl corrosion-resistant impeller in the Davey StarFlo SF pump, which is resistant to acids, alkalies, and treated water and hence suitable for use in the chemical processing industry, water treatment plants, and ships.
This impeller is very beneficial as it is lighter, cheaper, and more efficient than the metal impeller.
This pump further integrates a closed impeller, and is implied by pool-pump design and smooth-water application.
Diffuser
Integrated diffuser design for efficient pressure recovery and stable flow.
Mechanical Seal & Backplate
A better solution for sealing is a high-performance mechanical seal featuring Viton (FKM) elastomers with Silicon Carbide (SiC) faces. It is designed for harsh environments that involve corrosion and high temperatures.
It is usually adopted to counter this problem when dealing with abrasives, corrosive materials, or hot liquid substances.
Backplate: This serves as a critical stationary structural component of the swimming pool pump that covers the impeller, seals the casing, and provides a mounting surface for the stuffing box or mechanical seal.
Silicon Carbide Mechanical Seal
A better solution for sealing is a high-performance mechanical seal featuring Viton (FKM) elastomers with Silicon Carbide (SiC) faces.
It is designed for harsh environments that involve corrosion and high temperatures.
It is usually adopted to counter this problem when dealing with abrasives, corrosive materials, or hot liquid substances.
O-Ring & Spacers
The internal components of Davey’s StarFloSF pump are tightly sealed with O-rings to prevent any water leaks. Crafted from EPDM rubber, these O-rings are located in the volute casing and one fits within the adaptor of the variable-frequency drive.
Spacers are included to create essential gaps between the internal parts, ensuring they do not grind against each other unnecessarily, which could lead to wear and tear. Additionally, spacers help align various sections correctly, including the rotating shaft and the impellers within the pump.
The washer, whether flat or a small round rubber piece, is the final component placed inside the water pump. Its role is to ensure a complete seal, reduce friction, and distribute pressure evenly throughout the pump assembly. Made from polymer, it also absorbs operational noise into its hydrocarbon material, further minimizing sound. This makes it an ideal choice for household use.
Included In The box
StarFlo SF Swimming Pool Pump
User Manual
Proof of Purchase
24 Months of Manufacturer Warranty (Increased by Another 6 Months with e-Warranty Scheme)
