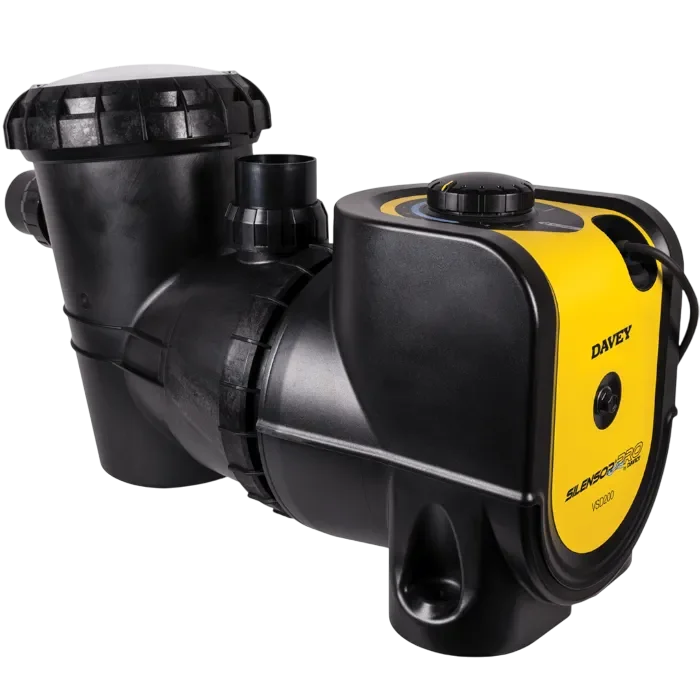

Davey's Silencer Pro Inverter Swimming Pool Pump - SP200BT

Key features:

Inverter pump (variable frequency drive) type.
Suitable for pool filtration, water features, and pool &
spa heating systems.
Bluetooth system featured (connectible with iOS and/or Android smartphone).
36 months warranty.
Adjustable pressure setting based on usage.
Highly energy-efficient (up to 11.24 WEF [Weighted Energy Factor] ).

Overview of Davey's Silensor Pro Inverter Swimming Pool Pump

The Silensor Pro VSD200 BT swimming pool pump by Davey is an energy-efficient variable speed pool pump designed for pool filtration, water features, and pool & spa heating systems. It integrates Bluetooth smartphone control, a quiet water-cooled motor, and advanced backwash cycling technology. With a Weighted Energy Factor (WEF) of 11.24, it is one of the most efficient pumps in its class.

Product Code Identification Method

SilensorPro is the name of Davey and the prefix SP refers to its range of variable speed, water-cooled pool pumps. This title is used to distinguish it among other families of Davey pumps.

The 200 is used to denote the performance rating and power size capacity in Silensor Pro lineup. In the nomenclature used by Davey, the nominal class or rather flow capacity of motor power is usually denoted by the number.

BT suffix is an abbreviation of Bluetooth. This means that the pump has wireless capabilities so that one can use the Davey Pool Pump app on either IOS or Android devices in order to control it. It will enable you to control the speed remotely, schedule filtration, control the backwash sequences and monitor the pump performance without the need to touch the unit physically.

Attachment

Bluetooth

A significant advantage of the Silencer Pro VSD200 BT is that it has a control system with Bluetooth capabilities.

This will make your pool control system easier to control and will have complete control at your fingertips.

Davey Smartphone Pool Pump App

Part of following the trend of the world, Davey has begun implementing smartphone controls integration for remote pump monitoring and regulation.

With the Davey Pool Pump app accessible in your iOS or Android smartphone now, filtration cycles, speed settings, and backwash operations can be set and adjusted without the need to touch their pump.

Variable-Speed Drive

The Silensor Pro VSD200 BT is designed on the basis of a variable frequency drive (VFD), as a result of which you are free to set the pump speed between 1500 rpm and 3600 rpm. This is because this does not tie you down to one fixed speed as is the case with traditional pumps. Rather, you can adjust the motor output precisely to what your pool needs at any particular moment to be a slow circulatory flow to accomplish filtration, or a stronger flow to complete backwashing and cleaning.

This flexibility is converted to save of energy. When a pump is run at a slower speed, it consumes much less power, and still it continues to have proper turnover of the water. E.g., when doing routine filtration cycles, it is possible to run the pump at lower speed reducing the consumption of electricity and still maintaining the water crystal clear. In cases where a greater amount of power is required such as spa jets or backwash cycle you can temporarily increase the speed up and then decrease it back to its original state at the end of the task.

The outcome is a smarter, and not harder working system. The SilensorPro saves you energy by not operating at full speed when you are not really in need of it; the utility bills are decreased, and the motor is not worn out due to unnecessary use.

40mm / 50mm Barrel Union (BSP Fitting)

Barrel unions that are 40mm (1.57 inch) and 50mm (1.97 inch) supplied with the SP200BT are produced using ABS (Acrylonitrile Butadiene Styrene) which is a tough and versatile polymer commonly used in piping systems, valves and control equipment. ABS has been described to have the capacity to resist a large range of temperatures 50°C (122 Fehrenheit) and 60°C (140 Fehrenheit), thus being capable of enduring surface damage and mechanical strain.

This is a material that will not only make the connections of the pump strong and reliable, but also energy efficient. The typically used applications of ABS piping to the industrial use include in refrigeration and cooling systems hence it offers the durability required in the harsh environments around the pools without compromising flow of water or loss of energy.

Extra Large 4.5 Litre Lint Pot

The pump has an extra-large 4.5 Litre (1.2 Gallons) leaf basket with a clear top that minimizes the number of times it requires cleaning hence checkable when it requires cleaning. Drain plug is also constructed, so that the casing can be drained in a very short time, enabling to remove it easily to carry out some servicing. These intelligent features ensure that being a pool owner is easy and that your pool system does not experience any trouble.

Certifications

ISO 9001 – Quality Management: ensure consistent manufacturing quality. This confirms that all Davey products are produced with uniform standards across the supply chain.

ISO 14001 – Environmental Management: This shows that Davey’s commitment to environmental responsibility covering waste management, recycling, eco-friendly factory practices, efficient delivery planning, reduction of environmental impact and emissions.

UL Approved – Safety & Compliance: The pump is UL approved under CAN/CSN-C22.2 No. 108-14 and ANSI/UL 1081 7^th Edition standards. There certifications are specific to swimming pool pumps, filters, and chlorinators. They confirm that the SilensorPro meets rigorous safety standards for electrical equipment used in wet environments, giving confirmation that the pump is safe to operate.

CE Marking – European Compliance: The CE mark indicates that the pump complies with European Union safety, health, and environment protection requirements. Even though this model is marked globally, CE compliance ensures it meets international standards, making it suitable for use in diverse markets.

Water-Cooled Motor

The Davey Silensor Pro SP200BT uses a special water-cooled motor that makes it stand out of the ordinary pool pumps. The SP200BT has circulating water to take up and transfer thermal energy away rather than dissipating heat by the fans like a standard motor. The design is also efficient and noiseless to the fans as well making it operate with a whispering noise.

Energy Consumption: The SP200BT is remarkably efficient across the range of its operating range. At Dial 1 the pump draws only 100W (0.13 hp) at Dial 5 350W (0.47 hp) and at Dial 10 800W (1.07 hp). The motor speed may be turned up and down between 1,400 rpm and 3,200 rpm, thus, providing you with the exact control over performance. Under backwash processes, the pump is used at variable speeds to maximize cleaning of the filters and minimize the wastage of water. The pump uses minimal power even when it is not working which minimizes the waste of energy.

Fourier’s Law: The cooling system of the SP200BT can be explained through Fourier’s Law of heat conduction. Heat generated by the motor is first conducted through the motor housing and then transferred to the surrounding water. This water circulation acts as a convection medium, absorbing the thermal energy and carrying it away from the motor. By using water as the cooling agent, the pump achieves superior thermal management compared to air-cooled designs, which rely on fans and airflow.

Noise Reduction: Water can be used to replace a damper in order to reduce vibrations and sound waves. It has higher density than air making it efficient to reduce noise and vibrations. As the cooling water circulates around the motor housing, it absorbs both heat and noise, preventing sound from escaping into the environment. This results a quiet operation, with noise levels measured at around 50 dBa at low speeds. For pool owners, this means the pump can run almost unnoticed, even during extended filtration cycles.

Environmental Benefits: The water-cooled design reduces electricity consumption and minimizes noise pollution. By integrating water-cooling system, the SP200BT uses fewer mechanical components, which improves reliability and reduces maintenance. This reflects efficient natural resource utilization, ensuring energy savings and environmentally friendly operation.

Weighted Energy Factor (WEF)

This efficiency is reflected in its amazing Weighted Energy Factor (WEF) of 11.24, which indicates that it sprays a larger number of gallons of water in a comparatively low amount of kilowatt-hours than most of its class.

In the real world this translates to a pump that is sustainable and performance-wise. It is mighty when you require it and it is also cost effective when you do not require it and helps in maintaining your pool in the year round without wasting energy.

Swimming Pool Pump Selection Guide

Easy Installation & System Compatibility

The Davey SilensorPro SP200BT has been manufactured to be easily installed, whether you are installing a new pool system in your property or you are renovating an older one. It also carries professional hard pipe connections and normal plumbing fittings and can fit in most pool designs. The pump has 40mm and 50mm barrel unions that enable it to fit perfectly both in residential and commercial pools.

The SP200BT is extremely small, thus can be installed in pump rooms or any other equipment area with ease. It can also interface well with timers and automated controllers and this allows it to be operated on a daily basis without being manually operated. Regardless of what your pool system is, filters, chlorinators, pressure controls, drains, vacuum systems or other accessories, the SP200BT has been designed to co-exist with other equipment. This flexibility also allows it to be used by small back yard pools and also by larger commercial projects where reliability and efficiency is also important.

Loss of Prime Protection

The SilensorPro uses a backwash speed cycling technology that enhances cleaning of filter media in addition to minimizing the waste of water in the process of backwashing. It also enjoys loss of prime protection which is an element that limits the amount of damage in the event that the pump runs dry. These features combined will prolong the life of the pump and save your money.

Construction, Safety & Electrical Protection

The Silensor®Pro SP200BT is engineered for strength, safety, and long-term reliability. It carries an IP45 enclosure rating, which means the pump is protected against dust and water ingress, making it suitable for continuous outdoor use in pool environments.

The motor is built with Class F insulation, providing enhanced thermal resistance and ensuring the pump can operate safely even under demanding conditions. This insulation class helps prevent overheating and extends the motor’s service life.

For installation convenience, the SP200BT comes with a power lead measuring 9.84 feet (approximately 3 metres), giving flexibility when positioning the pump in a pool equipment area.

Finally, the pump meets strict international safety standards with UL approvals under CAN/CSA-C22.2 No. 108-14 and ANSI/UL 1081 7th Edition, specifically covering swimming pool pumps, filters, and chlorinators. These certifications confirm that the SP200BT complies with recognized electrical protection requirements, giving pool owners confidence in both performance and safety.

Operating Limits

Operating Limits
Maximum Water Temperature	40°C / 104°F
Maximum Ambient Temperature	50°C / 122°F

Electrical Data

Electrical Data
Voltage (V)	220 – 240V
Supply Frequency (Hz)	50 / 60 Hz
Maximum Input Power (W/hp)	100W / 1.3 hp @ Dial 1 350W / 0.47 hp @ Dial 5 800W / 1.07 hp @ Dial 10 Backwash: Varies
Motor (RPM)	1,400 – 3,200 RPM
Backwash (RPM)	Variable speed
Enclosure Class (IP)	45
Insulation Class	F
Power Lead Length	9,84 ft
Weighted Energy Factor	11.24 kgal/kWh
Rated Hydraulic Horsepower	0.434 hhp
DPPP Nominal Motor Horsepower	1.48 hp
DPPP Total Motor Horsepower	1.48 hp
Service Factor	1.0
UL Approval	CAN/CSA-C22.2 No. 108-14 – Liquid Pumps ANSI/UL 1081 7^th Edition – Swimming Pool Pumps, Filters And Chlorinators
