Davey's ProMaster Inverter Swimming Pool Pump
Key features:

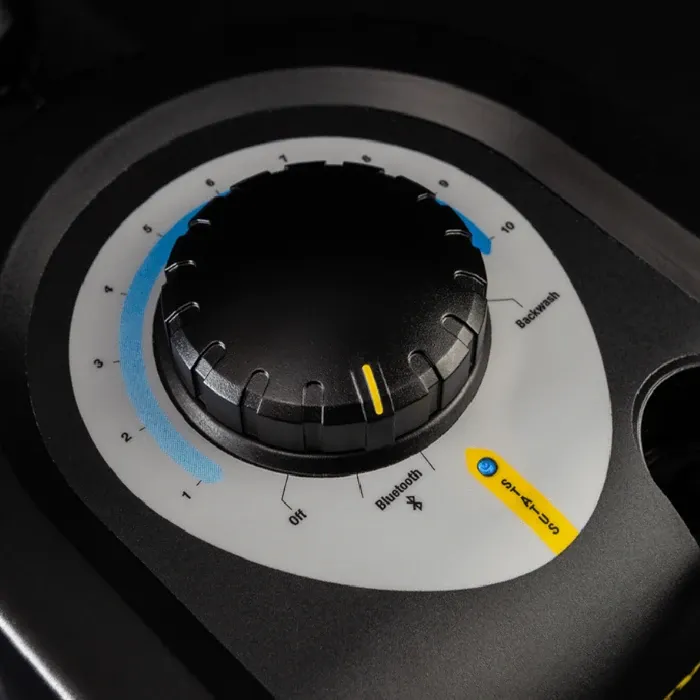

- Variable speed control with user selectable speed dial type.
- Suitable for Suitable for pools up to 70,000-110,000 Litres.
- For pool filtration, in-floor pool cleaning systems, connection to external pool controllers, heat pumps and gas heaters.
- Bluetooth system featured (connectible with iOS and/or Android smartphone).
- 36 months warranty.
- Adjustable pressure setting based on usage.
- 6-star energy rating for PM400BT and 5-star rating for PM200BT.
Classified As:

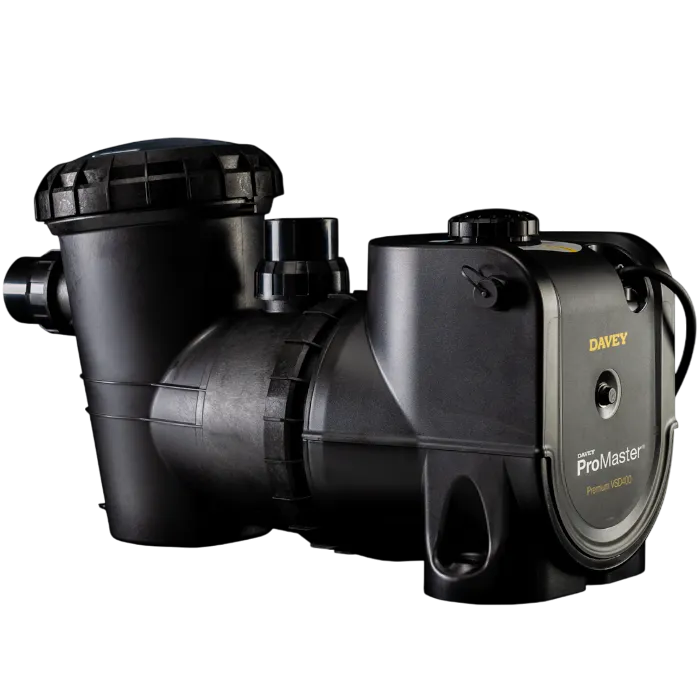

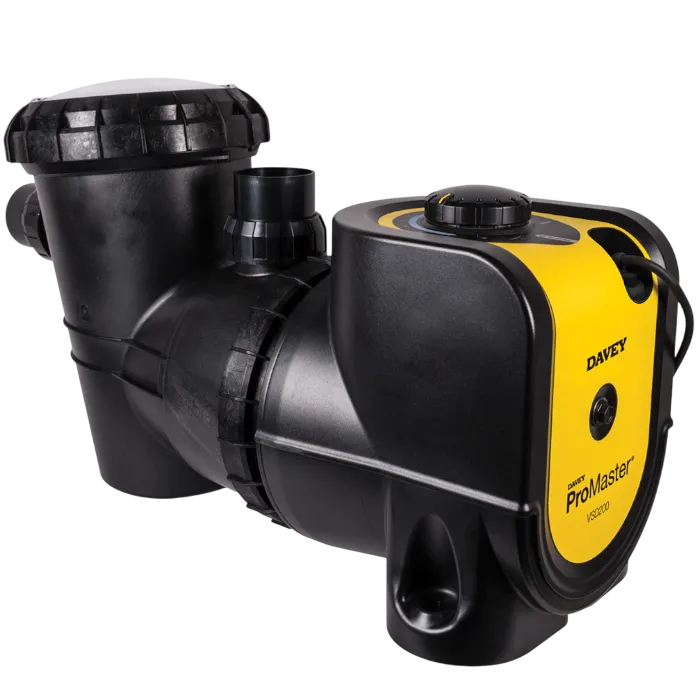

Overview of Davey's ProMaster Inverter Swimming Pool Pump
Davey’s ProMaster swimming pool pump is a high-performance swimming pool pump that is intended to be used in the filtration of pools, pool cleaning systems installed in floors and pools, and in combination with external pool controllers, heat pumps, and gas heaters.
It can be used in residential swimming pools of a capacity of up to 70,000 litres (PM200BT) and 110,000 litres (PM400BT). The pump has the complete variable speed control, Bluetooth capable and water-cooled motor design to perform quiet, efficient, and highly tuneable pool circulation.
Swimming Pool Pump Types
ProMaster has two variants of models:
- PM200BT
- PM400BT
These codes recognize the performance capacity of the pump, the size of motor and communication ability. PM400BT has more communication features that are not in PM200BT.

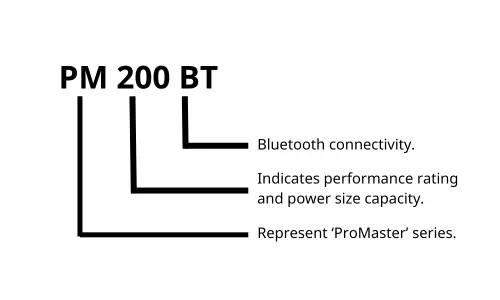

Method of Identification
The ProMaster pump is identified by its model number (PM200BT or PM400BT), name of its manufacturer, its Bluetooth marks in the smartphone application and its electrical approval number.
Physical identifiers comprise inlet and outlet dimensions, position of speed dial and LED indicator lights to control the operating conditions and fault warnings.
ProMaster is the name of Davey and the prefix PM refers to its range of variable speed, water-cooled pool pumps. This title is used to distinguish it among other families of Davey pumps.
The 200 found on the product code indicates the performance rating and power size capacity in ProMaster lineup.
The prefix of ‘BT’ signifies Bluetooth connectivity, controlled via Davey Pool Pump application on IOS or Android.

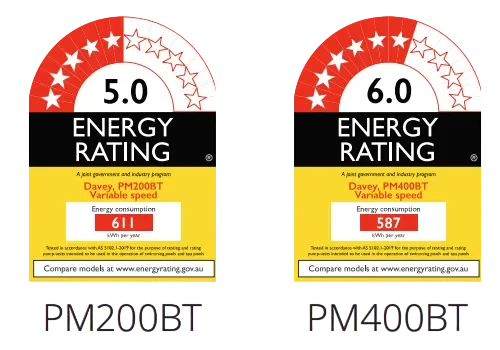

Swimming Pool Pump Energy Rating
The ProMaster pump is identified by its model number (PM200BT or PM400BT), name of its manufacturer, its Bluetooth marks in the smartphone application and its electrical approval number.
Physical identifiers comprise inlet and outlet dimensions, position of speed dial and LED indicator lights to control the operating conditions and fault warnings.
ProMaster is the name of Davey and the prefix PM refers to its range of variable speed, water-cooled pool pumps. This title is used to distinguish it among other families of Davey pumps.
The 200 found on the product code indicates the performance rating and power size capacity in ProMaster lineup.
The prefix of ‘BT’ signifies Bluetooth connectivity, controlled via Davey Pool Pump application on IOS or Android.
Attachment
Bluetooth
ProMaster is also going to enable its variable speed pump with embedded Bluetooth capabilities, which makes the pump wirelessly connected to an IOS or an Android smartphone.
In this connection, the pump settings, including speed choice, time scheduling, and, working mode, can be changed without any physical contact with the pump.
This makes it easier to install and operate on a daily basis particularly where the pump is positioned in a small or inaccessible equipment space.

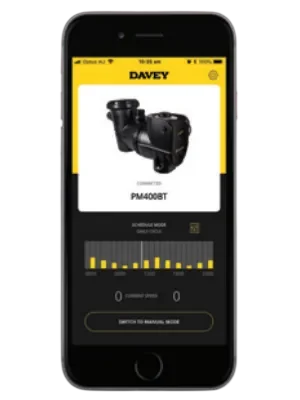

Davey Smartphone Pool Pump App
ProMaster is also going to enable its variable speed pump with embedded Bluetooth capabilities, which makes the pump wirelessly connected to an IOS or an Android smartphone.
In this connection, the pump settings, including speed choice, time scheduling, and, working mode, can be changed without any physical contact with the pump.
This makes it easier to install and operate on a daily basis particularly where the pump is positioned in a small or inaccessible equipment space.
Variable-Speed Drive
The system has been made to be dependable and comfortable to live with in the real world circumstances. It automatically restarts itself once a dry-run scenario is detected and it will also restart automatically when power is lost eliminating the necessity to manually restart it. It provides a volt-free tank level sensor to be directly part of the programming to allow more flexibility in installation to provide smarter and safer operation depending on the actual conditions of the tank.
It is easy to interact with the user because of a clear LCD control and information panel that indicates at a glance operating status, operating settings and alarms. An inbuilt pressure transducer helps in proper monitoring of pressure and the user is informed by visual alarms against under-current conditions. To provide extra security, the system will automatically shut off under the over-current conditions and provide an obvious indication of the fault, which will prevent harm to the motor or the drive.
The high degree of operational reliability is also improved with the help of detailed data logging. Operating events, alarm, run time are recorded by the controller and it becomes easier to review performance as well as diagnosing problems. The heat exchanger with the aluminum material enhances thermal efficiency and the cooling of the VSD by using the fan of the pump itself, and there is no need of extra cooling fan, decreases the total cooling expenditure.
The unit is properly resistant to unstable power conditions that are likely to occur onsite. The motor and the VSD are protected in case of a brown-out by an automatic shutdown and a visual alarm is provided. When the right voltage has been restored the system will automatically attempt to boot up. There is also protection against locked rotor whereby the controller would switch down the system to prevent severe motor damage.
In case of bigger systems, the system can be modified to support more pumps in parallel like in a simple daisy-chain arrangement supporting as many as two pumps. Integrated fault-diagnostic software helps users in the process of troubleshooting, reducing down-time and call-ins. The touchpad allows setting pressure setpoints in small, 10 kPa (1.5 psi) steps, and has a three-minute manual override feature to ease priming at startup or when performing maintenance.
40mm / 50mm Barrel Union (BSP Fitting)
The pump has 50 mm PVC inlet and outlet connections that are designed to fit standard plumbing systems in pools.
The connection size sustains high flow rates needed to filtrate, in-floor cleaners and so on.

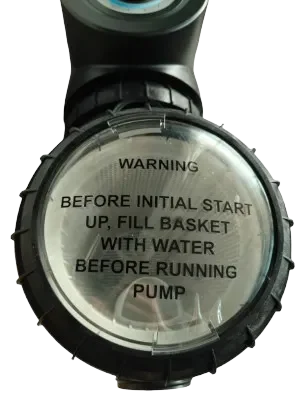

See-Through Strainer Lid
The ProMaster has a massive 4.5-litre leaf basket (lint pot) installed which is equipped with a transparent lid.
The visual inspection of the rubbish is possible with this transparent design. Without opening the pump, prolongation of cleaning periods and simplifying maintenance.

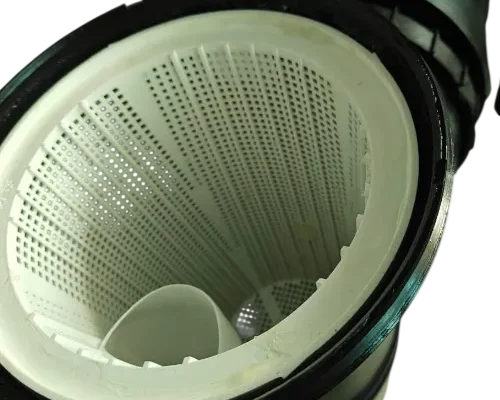

Leaf Basket
Its large basket capacity allows the continuous operation and at the same time ensuring efficient shielding of interior hydraulic parts.
Loss of Prime Protection
Wearing of pumps can lead to operation inefficiency and high costs of maintenance. The core of ensuring the loss of prime does not occur is always to maintain a consistent fluid supply, monitor air leakages, clear blockage as well as ensuring that priming is done.
The main issues can be avoided by routine checks and understanding how the pump operates to assure that there is a constant supply of fluid.
Weatherproof RJ45 Communication Port
The weatherproof RJ45 communication port functions as pool control system or pool heaters. This port provides better energy efficiency due to the system’s automatic adjustments heater output, pump speed, and filtration timing based on real-time demand. This avoids unnecessary heating or pumping, helping to lower electricity and energy costs.
Approaching the wide-range of technologies in this modern world, RJ45 is globally accepted standard, making it useful and easier pool systems to expand in the future. Additional heaters, pumps or sensors also can be added without changing the design of the entire control network, ensuring long-term compatibility with newer smart pool technologies.
RJ45 connectors are widely used in various applications due to their ability to support high-speed data transmission and reliable performance. They are essential in Ethernet networks, enabling fast, stable communication between devices.
The RJ45 also comes in Cat5e and Cat6a Ethernet, has a IP67 waterproof rating, threaded design, wide temperature range, ensures durability performance as its best, and effortless pin termination.
Certification
ISO 9001 – Quality Management: ensure consistent manufacturing quality. This confirms that all Davey products are produced with uniform standards across the supply chain.
ISO 14001 – Environmental Management: This shows that Davey’s commitment to environmental responsibility covering waste management, recycling, eco-friendly factory practices, efficient delivery planning, reduction of environmental impact and emissions.
SGS-150025-EA: Refers to a certification approval issued by SGS for Davey Water Products Pty’s PM200SV pool/spa equipment. This approval confirms compliance with ERAC (Electrical Regulatory Authorities Council) standards, ensuring the product meets electrical safety and performance requirements.
Water-Cooled Motor
The ProMaster variable speed pump is an electric high-performance-powered pump motor which is a special motor designed to be quiet and operate on a continuous basis in the pool. One of its characteristic features are the motor design of water-cooling, with water around it.
This absorbs noise and vibration in working. This greatly minimizes the operational costs, sound levels, and noise rating of 50 dBA, and thus the pump fit home settings that have an emphasis on noise control. It has a wide speed range in which the motor can be used in a dynamic response to varied pool specifications like filtration and cleaning as well as backwashing. Speed integrated variable speed drive offers control which effectively allows the drive to operate efficiently consumption of energy and minimized mechanical loads of internal parts. The motor is guaranteed by Class F insulation and contained in an IP45-rated casing resistance to moisture, dust, and outdoor environmental conditions.

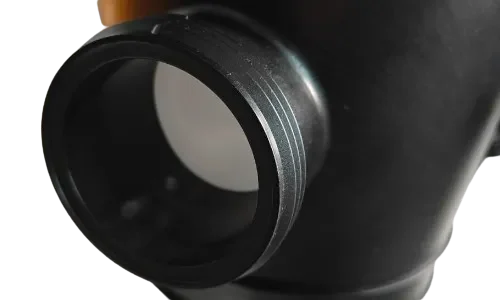

ProMaster Swimming Pool Pump's Inlet
The ProMaster pump is fitted with a 50 mm PVC inlet, designed to support high-volume water intake required for pool circulation systems.
This inlet size is compatible with standard pool plumbing installations and helps reduce suction losses during operation.
A properly sized inlet allows smoother water entry into the pump, lowering the risk of cavitation and improving hydraulic efficiency, particularly during higher-speed operating modes such as boost or backwash cycles.
Impeller And Diffuser
At the heart of the ProMaster pump’s hydraulic system is a centrifugal impeller and diffuser arrangement designed to perform efficiently across a wide speed range. As the motor drives the impeller, water is accelerated outward and guided by the diffuser into the volute, converting velocity into pressure.
This design allows the pump to deliver stable flow at both low and high speeds, supporting energy-efficient circulation as well as high-demand applications like in-floor cleaning systems.
The diffuser plays a critical role in smoothing water flow and minimising turbulence, which helps reduce energy loss and operating noise. Although the exact impeller classification (open, semi-open, or closed) is not specified in the datasheet, the overall design is optimised for variable-speed operation and consistent hydraulic performance.
Backplate And Mechanical Seal
The ProMaster pump uses a mechanical sealing system to separate the wet end of the pump from the electric motor. This mechanical seal prevents water from entering the motor housing while allowing the shaft to rotate freely during operation. Reliable sealing is especially important in variable-speed pumps, where frequent speed changes can place additional stress on sealing surfaces.
The backplate supports proper alignment between the motor and hydraulic components, ensuring smooth power transmission and reduced vibration. Together, these components contribute to long service life and consistent performance during continuous pool operation.
O-Ring & Spacer
O-rings are used throughout the ProMaster pump assembly to maintain watertight seals between joined components such as the casing, strainer housing, and hydraulic sections. These sealing elements help prevent leakage under varying pressure conditions and repeated thermal cycling. While spacer specifications are not detailed in the datasheet, internal spacing components ensure correct alignment of rotating and stationary parts, which is essential for maintaining efficiency and reducing wear over time.
Operating Limits
The ProMaster pump is designed to operate safely within clearly defined environmental limits. It supports a maximum water temperature of 40°C and a maximum ambient temperature of 50°C, making it suitable for most residential pool installations, including outdoor equipment areas exposed to warm climates.
| Operating Limits | |
|---|---|
| Maximum Water Temperature | 40°C / 104°F |
| Maximum Ambient Temperature | 50°C / 122°F |
Operating within these limits helps protect the motor, seals, and electronic components from thermal stress and premature failure.
Hydraulic Performance
Hydraulic performance is one of the key strengths of the ProMaster pump. The fully variable speed system allows users to select from multiple dial positions, each corresponding to a different speed and flow output. At lower speeds, the pump delivers sufficient flow for daily filtration with significantly reduced energy consumption. At higher speeds, it provides the increased flow and pressure needed for pool cleaning, heating systems, or backwashing.
Performance curves supplied in the datasheet illustrate how total head varies with flow rate across different speed settings. This allows installers and pool professionals to match pump performance precisely to system requirements, ensuring efficient and reliable operation under all conditions.
Electrical Data
The ProMaster pump operates on a 220–240 V power supply and supports both 50 Hz and 60 Hz electrical systems. Power consumption varies according to selected speed, ranging from low-wattage operation at minimum dial settings to higher input power during full-speed boost operation. This flexibility allows significant energy savings during normal circulation while still providing high performance when required.
| Electrical Data | ||
|---|---|---|
| Model | PM200BT | PM400BT |
| Voltage (VAC) | 50 / 60 | |
Max Input Power (W/hp) [Watt / Horsepower] | 128 W / 0.17 hp @ Dial 1 524 W / 0.7 hp @ Dial 5 1,111 W / 1.48 hp @ Dial 10 | 126 W / 0.17 hp @ Dial 1 728 W / 0.97 hp @ Dial 5 1,639 W / 2.19 hp @ Dial 10 |
| Motor Speed (RPM) | 1,500 to 3,600 | 1,050 to 3,100 |
| Backwash (RPM) | Variable Speed | |
| Enclosure Class (IP) | 45 | |
| Insulation Class | F | |
| Power Lead Length | 3m | |
| Approval Number | SGS-150025-EA | |
The motor speed range differs slightly between models, with the PM200BT and PM400BT each optimised for their respective pool size capacities. Electrical protection is supported by approved insulation and enclosure ratings, ensuring safe operation in wet environments.

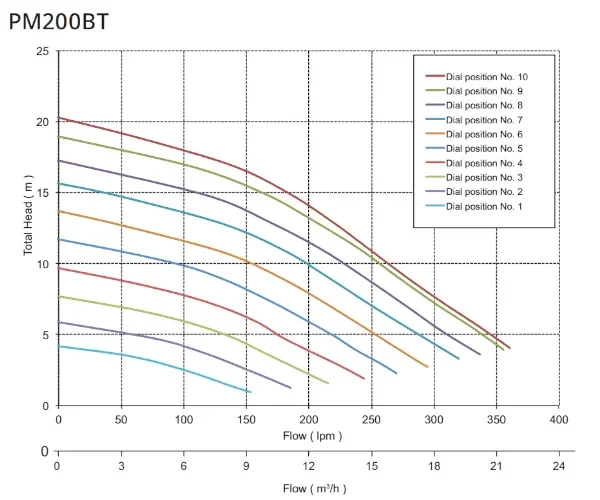

PM200BT - Q-H Curve

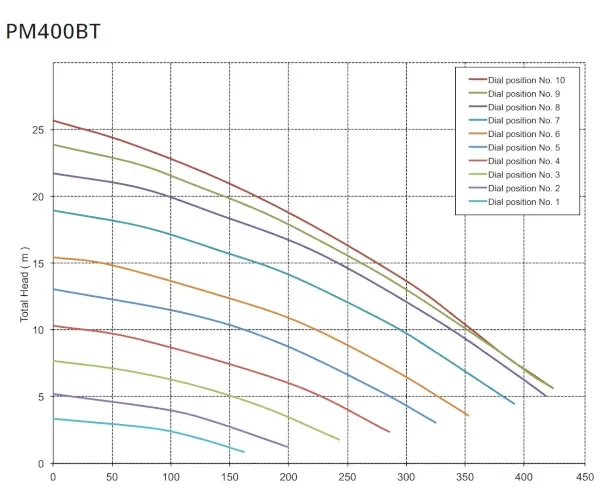

PM400BT - Q-H Curve
Included In The Box
ProMaster Swimming Pool Pump
User Manual
Proof of Purchase
36 Months of Manufacturer Warranty
