Davey's ProMatic Lifeguard Salt Chlorinator And Chemical Dosing System Set
- Wi-Fi enabled with integrated app.
- Multilingual user-friendly LCD interface.
- pH sensor and acid dosing, ORP control, temperature and salt measurement.
- ORP control.
- Reverse polarity cell with integrated safety flow switch.
- Boost Mode for additional chlorination during periods of heavy bather loads.
- Operating Salt Level: 3,000 – 6,000ppm
- Low salt options offer: 1,500 – 6,000ppm
Classified As:
Overview of Davey's ProMatic Lifeguard Salt Chlorinator And Chemical Dosing System Set

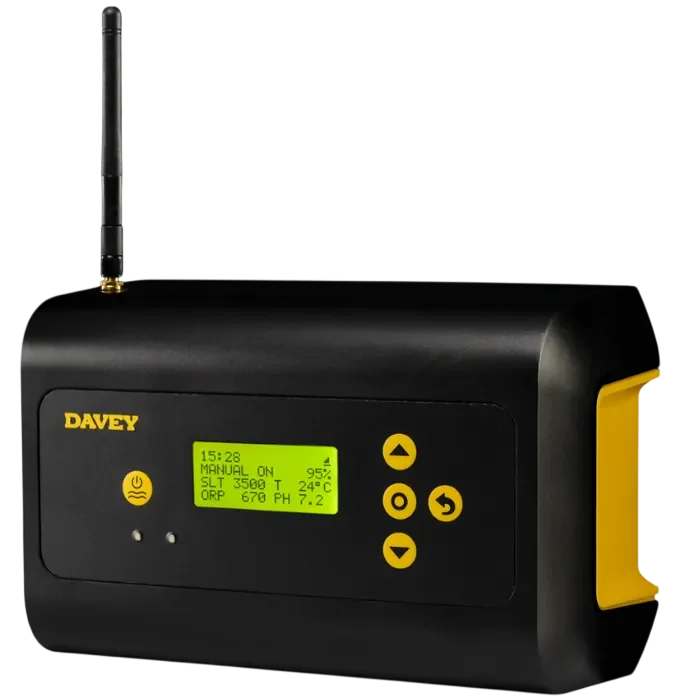

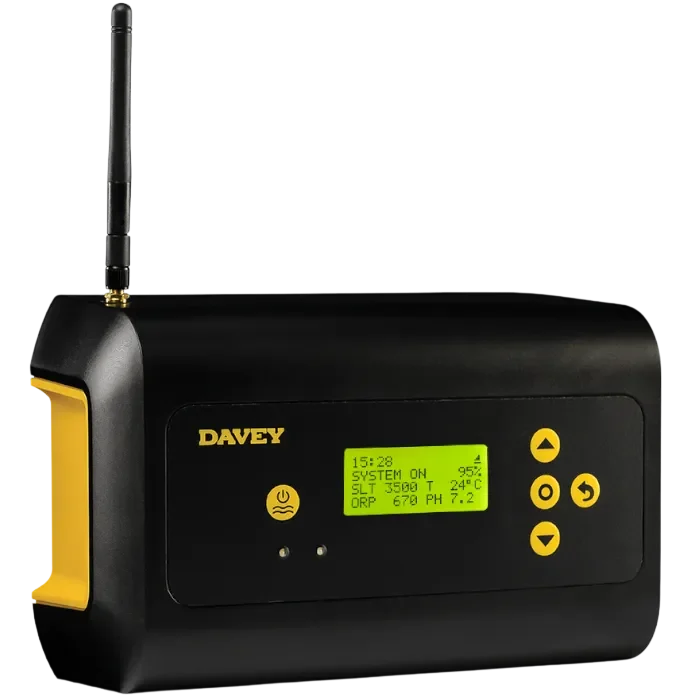

Davey’s new ChloroMatic Lifeguard is a complete pool and chemistry controller that offers simple, automated pool chemistry control and monitoring, is completely plug and play and is easy to install and program.

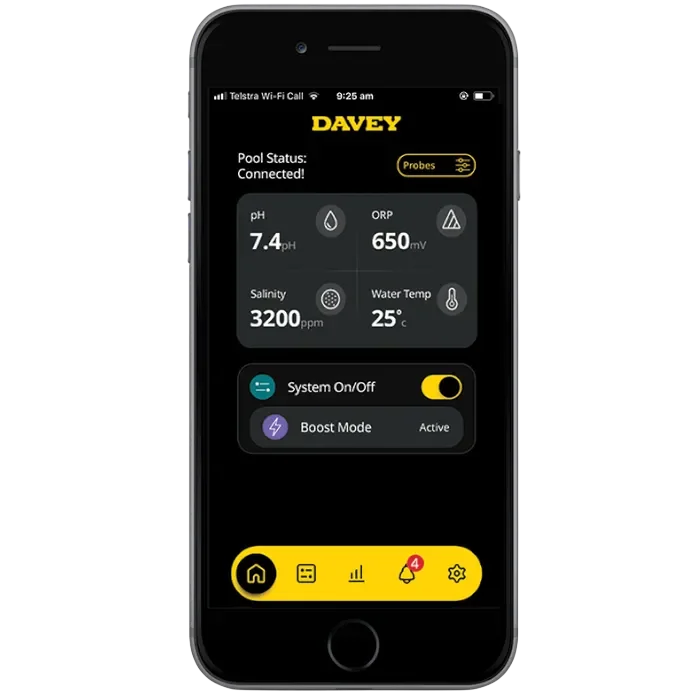

The custom, user-friendly app gives you full control over your pool system, to view and modify filtration schedules and modes, as well as allowing you to adjust set points as required. It can also be controlled locally if you are unable to connect to Wi-Fi networks.
With ChloroMatic Lifeguard, acid dosing, chlorinating, and even pool temperature can all be automated, and the app will let you know if you are running low on salt or minerals, all you need to check is the acid drum. No more surprises when you go to use your pool!
The ChloroMatic Lifeguard controller also integrates with Davey’s compact saltwater chlorinator – ChloroMatic Nipper. The products are available as a set or the controller is available as a standalone product for pool owners who already have a Nipper and want to upgrade.

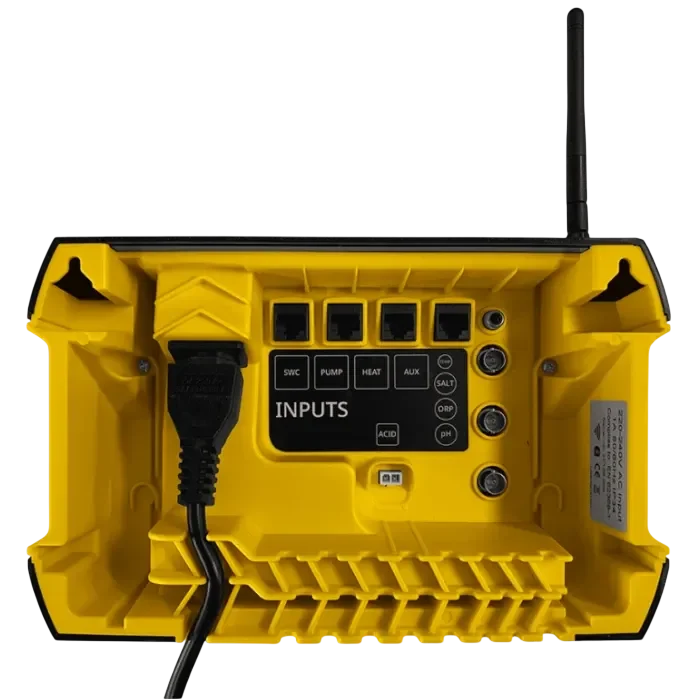

The main ChloroMatic Lifeguard controller communicates with other Davey pool equipment, which connects easily through plugs on the back of the unit or through a Wi-Fi connection. If there is a Davey Heat Pump or Davey by Nirvana Heat Pump connected to the system, the ChloroMatic Lifeguard unit can also maintain the pool temperature to a set point during the filtration cycle.
ChloroMatic Lifeguard is suitable for pools up to 175,000 litres and can be used for salt or mineral pools.
Features & Benefits:
- Wi-Fi enabled with fully integrated app (remote control can be deactivated).
- pH sensor and acid dosing, ORP control, temperature and salt measurement for effortless pool balancing.
- ORP control to prevent over chlorination when pool cover is used.
- Next generation high performance reverse polarity cell with integrated safety flow switch.
- Low salt cut off to protect the cell.
- Boost Mode for additional chlorination during periods of heavy bather loads.

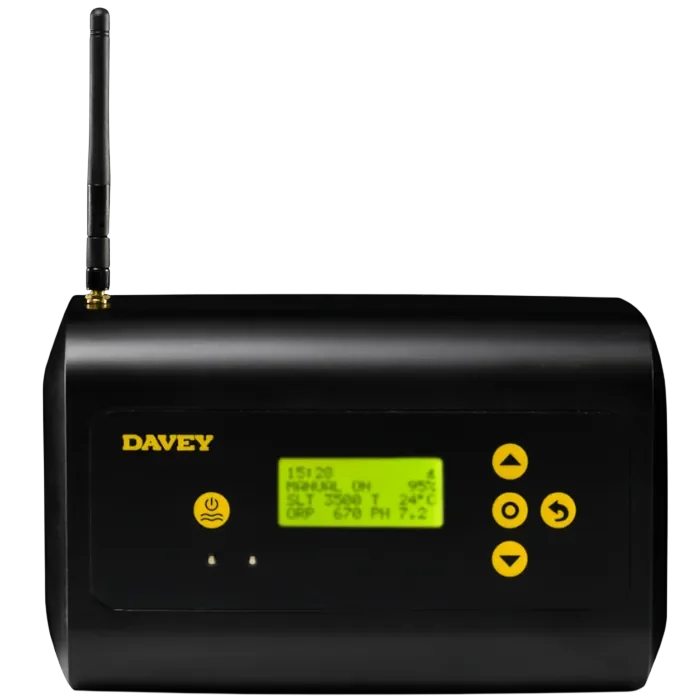

- Comprehensive multilingual user-friendly LCD interface.
- Operating Salt Level: 3,000 – 6,000ppm.
- Low salt options offer: 1,500 – 6,000ppm.
Model Number: DCLG-15C, DCLG-25C, DCLG-35C, DCLG-15CLS, DCLG-25CLS
Applications: Ideal for in-ground and above ground residential swimming pools. Models suitable for pools up to 140,000L. Designed for normal and low salt levels in mineral and normal salt water pools.
| Chlorine Output | ||||||
| Model | Chlorine Gas Production (g/hr 100%) | Calcium Hypochlorite (g/hr 65% equivalent) | Salt Levels | Maximum Pool Size (Litres) Cool Climates <25ºC | Maximum Pool Size (Litres) Temperate Climates 25ºC to 30ºC | Maximum Pool Size (Litres) Hot & Tropical Climates >30ºC |
|---|---|---|---|---|---|---|
| DCLG-15C | 15 | 23 | 3000-6000 ppm | 60,000 | 48,000 | 36,000 |
| DCLG-25C | 25 | 38 | 3000-6000 ppm | 100,000 | 80,000 | 60,000 |
| DCLG-35C | 35 | 53 | 3000-6000 ppm | 140,000 | 112,000 | 84,000 |
| DCLG-15CLS | 15 | 23 | 1500-6000 ppm | 60,000 | 48,000 | 36,000 |
| DCLG-25CLS | 25 | 38 | 1500-6000 ppm | 100,000 | 80,000 | 60,000 |
| Dimensions All Models (mm) | ||||||||||||
| ChloroMatic Nipper | Lifeguard Cell Housing | Cell Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height (mm) | Width (mm) | Depth (mm) | Mounting Holes (mm) | Height (mm) | Width (mm) | Depth (mm) | Mounting Holes (mm) | Height (mm) | Width (mm) | Diameter (mm) | Inlet / Outlet | |
| 320 | 238 | 113 | 164 | 153 | 240 | 97 | 205 | 239 | 390 | 119 | 40 & 50 options included | |
| Electrical Data – All Models | |
|---|---|
| Voltage (V) | 220-240 |
| Phase | 1 |
| Supply Frequency (Hz) | 50/60 |
| Enclosure Class (IP) | 34 |
| Maximum Power (kW) | 15g/hr: 0.12 25g/hr: 0.24 35g/hr: 0.24 |
IMPORTANT NOTES:
1. In ‘hard water’ applications (above 275ppm), reverse polarity systems will require regular (monthly) inspection and manual cleaning.
2. The appropriate sanitiser size for your pool is dependant on the local climate and the bather load of the pool. Please note that cell life can be increased with shorter running times during winter. Davey recommends that a sanitiser is run for between 6 – 8 hours a day during summer, and between 2 – 4 hours during winter.
How-To Set Up Videos of Davey's ProMatic Lifeguard Salt Chlorinator
Included In The Box
ProMatic Lifeguard Salt Chlorinator And Chemical Dosing System Set
User Manual
Proof of Purchase
Manufacturer Warranty With:
- 3 Years For Control Box And Cell
- 1 Year For Accessories
- 6 Months For Probes
