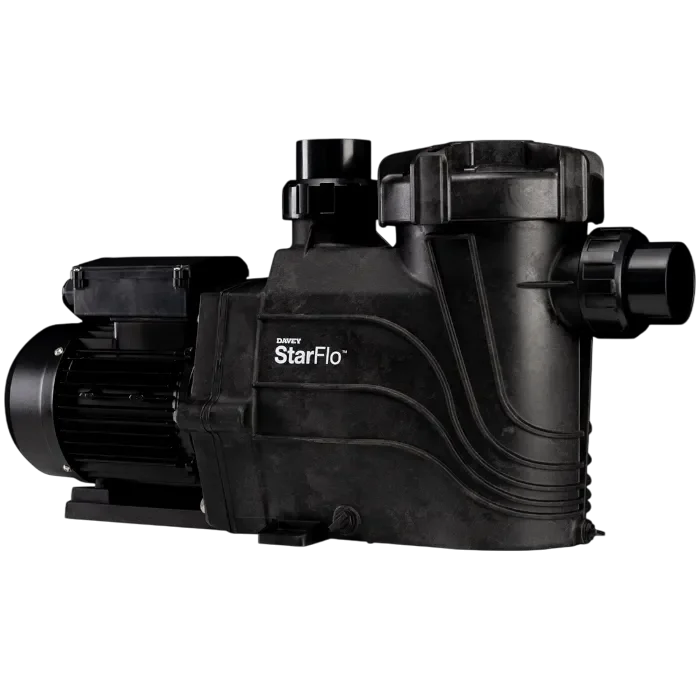

Davey's StarFlo Swimming Pool Pump
- Standard automatic pressure system type.
- Suitable for in-ground and above ground pools, large swim spas and plunge pools.
- 36 months warranty.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's StarFlo Swimming Pool Pump
The StarFlo swimming pool pump by Davey is an electric water pump that is designed on purpose as a pool pump and booster pump (residential swimming pool systems). Davey StarFlo can be installed either in an above ground pool or as an in-ground pool and a sand filter is usually added to keep the system of water circulation safe and clean. The pump is designed for backyard, outdoor, resort, and private leisure environments. It also supports swimming activities such as diving, exercise, sport, and recreational splash use, while also contributing to the overall aesthetic design of the pool area. Developed with a motor rating equivalent to 1.5 HP, the StarFlo is widely used as essential equipment in domestic pool setups.
Variations of StarFlo
| Pump Phase | Product Code |
| Single Phase Pumps | DSF150CE |
| DSF200CE | |
| DSF250CE | |
| DSF300CE | |
| DSF420CE | |
| Three Phase Pumps | DSF3003FCE |
| DSF4203FCE |
Davey produces several lines of product variations, which are DSF150CE, DSF200CE, DSF250CE, DSF300CE, DSF420CE, DSF3003FCE, and DSF4203FCE.
While there are five versions that are single phased, the last remaining two (DSF3003FCE and DSF4203FCE) are triple in phases.

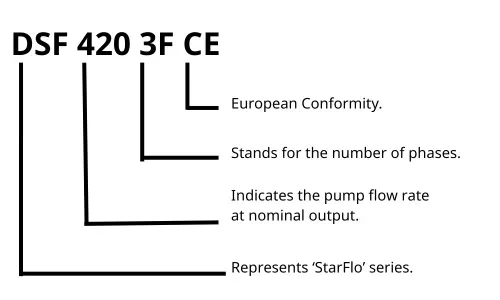

Product Code Method of Identification
Like any other water booster pumps found, Davey’s StarFlo features a unique identifier that allows one to identify the exact product model available.
The identification series begins with:
DSF: This represents the StarFlo series of Davey.
420: The numerical figure that indicates the swimming pool pump’s flow rate at nominal output.
3F: The second half of the encoding that shows the number of phases available of that particular pump version.
CE: Represents European Conformity in its abbreviation, ‘CE‘.
Attachment
40mm / 50mm Barrel Union (BSP Fitting)
A 40mm or 50mm barrel union refers to a PVC fitting. This union is commonly used in pools or irrigation systems, designed to connect pipes of those sizes. In common situation, it features a dual-size tail (40/50mm) to fit either pipe diameter for flexibility. This allows easy maintenance by disconnecting the pump or filter.
These unions often use British Standard Pipe (BSP) threads and come in variants for different type of pipes.

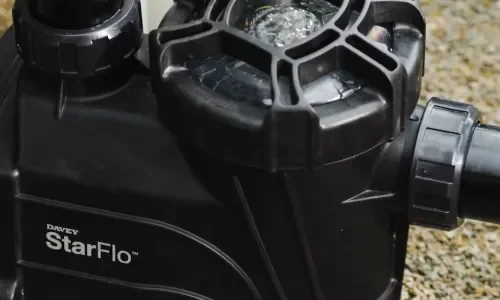

See-Through Strainer Lid
The strainer lid sits on top of the pump’s strainer basket, where the basket catches debris like leaves, hair, and dirt. The lid is transparent or “see-through,” usually made from durable polycarbonate plastic.
Since the lid is see-through, this makes seeing how full the basket is much easier without opening the pump. This prevents debris from blocking water flow or damaging the pump. Precise maintenance can be made by checking the basket whether its full or not.
Designed to withstand UV, pool chemicals (chlorine, salt, etc.), and pressure inside the pump. Some lids twist off, some snap or use clamps, the DSF150CE uses a twist-and-lock design, making it convenient and secure.
Maintenance And Servicing: Strainer basked and drain pot are components from the pump. These accessible components simplify routine maintenance. Regular inspection and cleaning help maintain consistent suction and pressure, leading to wear reduction on the motor and plumbing system. The durable plastic construction and corrosion-resistant internal components ensure dependable operation even under frequent use and chemical exposure.
Certifications
ISO 9001 – Quality Management: ensures consistent production quality and product reliability. From this certificate, all Davey products are produced with uniform standards across the supply chain.
ISO 14001 – Environmental Management: Manufacturing processes comply with ISO 14001 environmental management standards, demonstrating Davey’s commitment to environmentally responsible design and production practices.

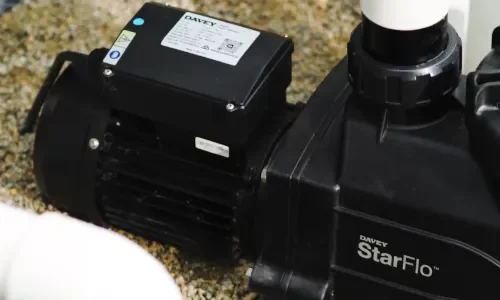

High-Performance Motor
The StarFlo incorporates the multi-speed pump principle as its main design, which is an electric motor with one speed, and it doesn’t produce the pump variants because this principle is capable of lasting operation to provide the pool with the necessary circulation.
The centrifugal impeller is moved by the motor via a closed shaft system allowing a high amount of water to be sucked in by the motor and then pumped out back through the plumbing system. Such an arrangement allows the pump to be used continuously in a dedicated pump room whether manually operated or by an external timer.
Self-resetting Thermal Overload Protection: A self-resetting thermal overload protection device automatically restores power to an electrical circuit, like a motor. After a trip occurs due to overheating from excessive current. The circuit then cools down and recloses its contacts without manual intervention.

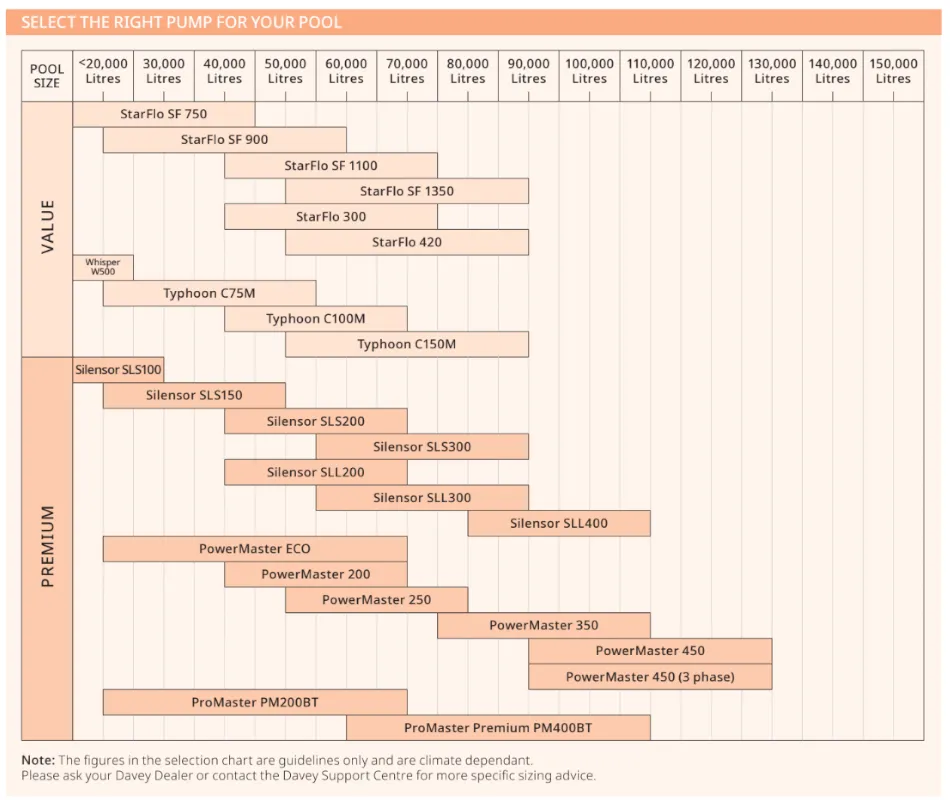

Swimming Pool Pump Selection Guide
Noryl Impeller
The Davey StarFlo pump incorporates a corrosion resistant Noryl impeller, which contributes to long-lasting, trouble-free hydraulic performance. It is a high chemical resistance to acids, alkali and treated water and this makes it suitable in chemical processing, water treatment, as well as marine applications. There are numerous advantages to this impeller among them is the fact that it is light, highly efficient and economical as compared to the metal impellers.
PPE Plastic: PPE Plastic or also known as Polyphenylene Ether (or Oxide), a high-performance engineering thermoplastic is also known for its excellent heat resistance, dimensional stability, electrical insulation, and low water absorption. This plastic often blended with polystyrene (PS) in order to improve processability for automotive, electrical and appliance parts.
Silicon Carbide Viton Mechanical Seal
A high-performance mechanical seal utilizing Silicon Carbide (SiC) faces and Viton (FKM) elastomers is a premium sealing solution. It is designed for demanding, corrosive, and high-temperature environments. To handle aggressive chemicals, abrasives and high-temperature liquids, this combination is frequently used to overcome this hindrance. Therefore, it has high durability over standard alternatives.
316 Stainless Steel Shaft
A 316 stainless steel shaft provides superior corrosion resistance, especially in marine, chemical, and food processing environments. By reason of added molybdenum, this differs from standard 304 SS where the 316 SS outperforms. It also offers excellent strength, durability, and hygiene for demanding industrial automation and washdown applications.
Hydraulic Performance
The StarFlo pump facilitates the functionality of various pools. The functions include some of the standard circulation, vacuum cleaning as well as the auxiliary booster to the pool cleaners or water features. The hydraulic design of the StarFlo is such that water moves through the filter system smoothly standing between the pool drains, through the filter system, and back to the pool returns maintaining a constant pressure. The pump can also manage the usual residential head losses but retain the effective turnover so that the water is kept clear and comfortable to the swimmers.
Installation And Setup
The StarFlo pump is easy to install and flexible to a number of plumbing arrangements. It is usually fitted with a complete pool system where it is linked to suction and return lines which are run with rigid pipework. The pump has a drain point so that it can be emptied easily when servicing is required or during seasonal shutdowns. Whether installed as a new without major system modifications. Although compact enough to be considered semi-portable, it is typically fixed in place for long-term use.
Applications And Use Environment
The StarFLo pump is widely used in residential pools designed for relaxation, fitness, and leisure. It supports environments ranging from private backyard pools to small resort-style outdoor installations. By maintaining clean, well-circulated water, the pump enables safe swimming conditions for recreation, exercise, and sports-related activities. It also supports pool accessories such as cleaners and filtration systems, enhancing overall system reliability and user experience.
Included In The Box
StarFlo Swimming Pool Pump
User Manual
Proof of Purchase
36 Months of Manufacturer Warranty
