Davey's Typhoon Swimming Pool Pump
Key features:
- Standard automatic pressure system type.
- Suitable for pool, spa, and solar heating applications.
- For filtration, auto pool cleaning, backwashing, water features, spa jet operation, and solar pool heating use.
- 36 months warranty.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's Typhoon Swimming Pool Pump
The Typhoon swimming pool pump by Davey is designed as a high speed, single speed pump solution that can provide reliable water circulation in a broad area swimming environment. Constructed of built-in performance, reliability, and daily use. This pump is as well applicable in residential homes, hotels, resorts, colleges, schools, and natatorium plants where filtration and clean water must be maintained on a regular basis. Whether supporting an inground pool, an above ground setup, or a modern indoor natatorium. The Typhoon series is designed to keep water moving smoothly for freestyle training, butterfly stroke sessions, diving practice, kids’ swimming classes, and general summer recreation.
The Typhoon swimming pool pump made by Davey is normally installed in the pump room in which it must have reliability, silent motor running, and high service life. Its strong hydraulic output is appropriate to sand filter systems, vacuum cleaning, chlorine integration, general pools circulation, and general pools equipment. Typhoon swimming pool by Davey pump is another product that is very much compatible with the modern concepts in pool designs practicality and aestheticism of functional performance of residential houses and resorts.
Typhoon swimming pool pump by Davey remains a reliable pool pump which professionals desire a balance between performance, safety, sand ease of installation. Typhoon swimming pool pump by Davey is supported by effective engineering and is well known to be in the ability to sponsor clean, beautiful, and safe water indoor environment as well as indoor applications.
Typhoon Pool Pump Variations
The Typhoon pump range is offered in multiple motor capacities to suit varying pool sizes and hydraulic demands. The available product codes include C75M, C100M, and C150M, each representing a different motor output and performance level. These variants allow installers and designers to select a pump that aligns precisely with pool depth, water volume, filter sizing, and circulation requirements.
Davey Typhoon Pool Pump | C75M |
| C100M | |
| C150M |
The C75M model is commonly selected for smaller residential pools or compact above ground installations, while the C100M offers a balanced solution for medium-sized inground pools. The C150M variant delivers higher output for larger residential pools, school facilities, or light commercial environments where higher flow rate is required. This flexibility ensures the Typhoon pool pump integrates well into both new installations and replacement projects.

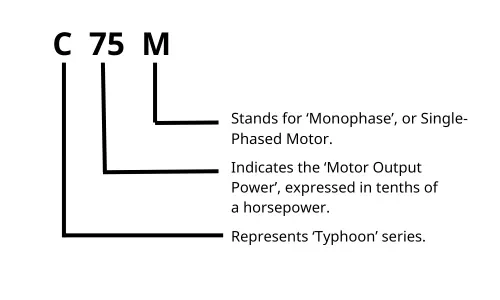

Method of Identification
Each Typhoon pump is identified through its model code. In here, is an example of the identifier “C75M”.
Despite the swimming pool pump featuring alphabets and numbers, this provide clear information on voltage, frequency, phase, power input, power output, and approval references.
Visual identification is further supported by distinctive Typhoon pump body, reinforced base, and large transparent strainer lid, making it easily recognizable during installation, servicing, or replacement.
Attachment

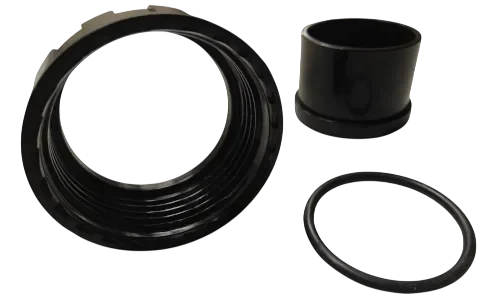

40mm / 50mm Barrel Union (BSP Fitting)
The Typhoon pump is designed with installer convenience in mind. It comes fitted with barrel union connections that allow the pump to be connected quickly and securely to standard pool plumbing.
The unions support 40mm and 50mm PVC pipe sizes, making the pump easy to integrate into both new installations and existing systems. The BSP-style threaded design ensures a tight, leak-resistant seal, while also allowing the pump to be disconnected easily whenever servicing or replacement is required.
The self-aligning nature of the unions helps reduce stress on pipework, improving long-term reliability.

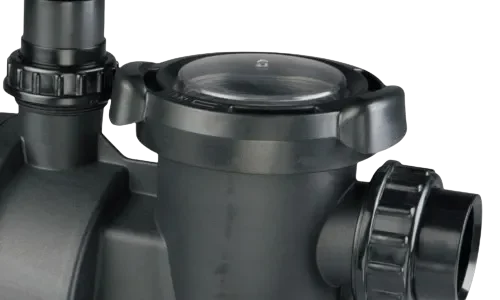

See-Through Strainer Lid
A large, clear strainer lid allows the leaf basket to be checked at a glance, without needing to open the pump.
This small but practical feature makes routine maintenance quicker and more convenient, helping pool owners keep the system running smoothly with minimal effort.
The lid is easy to remove when cleaning is required, reducing downtime during regular servicing.

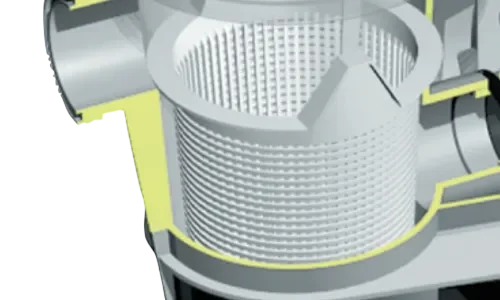

Large Leaf Basket
The Typhoon is equipped with a generously sized leaf basket that comfortably handles leaves, dirt, and other common pool debris.
By capturing debris before it reaches the impeller, the basket helps maintain consistent water flow and reduces the frequency of cleaning, particularly in outdoor pool environments with higher debris loads.
Reinforced Pump Base
The pump is mounted on a reinforced base that provides stable support and keeps the motor elevated above ground level.
This design helps protect the motor from standing water and moisture, reducing the risk of corrosion and extending the overall service life of the pump.
Swimming Pool Pump's Certification
Consistent production quality and product dependability are guaranteed by ISO 9001-Quality Management. All Davey products are manufactured using consistent standards throughout the supply chain thanks to this certificate.
Environmental Management, ISO 14001
Davey’s dedication to environmentally conscious design and production methods is demonstrated by the fact that manufacturing procedures adhere to ISO 14001 environmental management standards.
Approval No. W2442 refers to an Australian electrical safety approval (often cited as a Certificate of Approval or Certificate of Conformity) associated with Davey Water Products for various pool pump models.

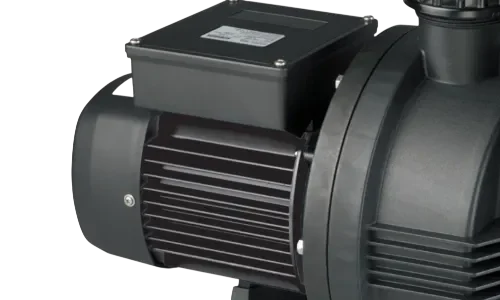

TEFC Motor
At the heart of the Typhoon pump is a single-phase electric motor operating at 2900 RPM.
The motor is double insulated from the water circuit and includes an equipotential bonding point to meet wiring standards. Built-in thermal overload protection safeguards the motor against low voltage conditions or mechanical blockages.
The stainless-steel motor shaft provides excellent corrosion resistance, making it suitable for saltwater pools, indoor natatoriums, and humid pump room environments.
Typhoon natatorium pump installations benefit from the motor’s stable performance in enclosed interior spaces where temperature and moisture control are critical. Typhoon natatorium pump systems are commonly selected for indoor pools systems are commonly selected for indoor pools where consistent water movement supports training, exercise, and class schedules.
Built-In Motor Protection: To safeguard long-term performance, the Typhoon includes integrated thermal overload protection. This system automatically protects the motor if abnormal conditions such as overheating or electrical stress occur, helping to prevent damage and ensuring dependable operation over time.

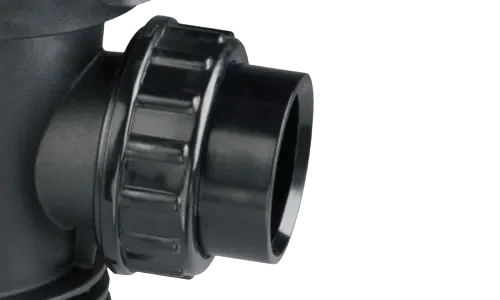

Inlet
The inlet design accommodates high flow rates while minimising turbulence and air entrainment.
Self-priming capability allows the pump to handle air effectively during startup, reducing installations complexity and improving reliability.
The large inlet path supports efficient water intake from skimmers and main drains, contributing to stable circulation across deep and shallow pool zones.
Impellers And Diffusers
The Typhoon pump utilizes a glass-filled Noryl impeller, chosen for its high abrasion resistance and durability. This material performs well in environments where sand, debris and fine particles are present.
The diffuser and pump body are constructed from glass-filled polypropylene, providing corrosion resistance and structural stability over long service life.
Closed Impeller Design: While the Typhoon pump uses a closed impeller design for efficiency and pressure stability, it is useful to understand common impeller types. Open impellers are typically used for debris-heavy applications, semi-open impellers balance efficiency and clog resistance, and closed impellers – such as those used in Typhoon – offer higher efficiency and smoother hydraulic performance for clean water system like swimming pools.
Backplate And Mechanical Seal
The pump features a carbon and ceramic mechanical seal designed to withstand continuous operation and chemical exposure. This seal prevents water ingress into the motor, ensuring long-term reliability. The backplate integrates securely with the pump body, maintaining alignment and reducing vibration during operation.
O-Ring And Spacers
High-quality sealing components, including O-rings and spacers, are used throughout the pump assembly to maintain pressure integrity and prevent leaks. These components are designed for easy replacement during routine maintenance, supporting long service intervals and reduced downtime.
Operating Limits
| Operating Limits | |
| Maximum Water Temperature | 35°C (95°F) |
| Maximum Ambient Temperature | 50°C (122°F) |
Electrical Data
| Electrical Data | ||||
| Model | C75M | C100M | C150M | |
| Voltage (V) | 240 V | |||
| Supply Frequency (Hz) | 50 | |||
| Phase | 1 | |||
| Run Current (A) | 5.0 A | 5.8 A | 6.6 A | |
| Motor Input Power (W)/hp | 1100 / 1.6 | 1200 / 1.9 | 1600 / 2 | |
| Motor Onput Power (W)/hp | 550 / 0.7 | 750 / 1 | 1100 / 1.5 | |
| RPM | 2900 | |||
| Enclosure Class (IP) | 55 | |||
| Insulation Class | F | |||
| Enclosure Class (IP) | 55 | |||
| Approval Number | W2442 | |||
Materials of Construction
The Typhoon pump is constructed using UV-stabilised, corrosion-resistant plastics designed to withstand prolonged sun exposure and chemical contact. The reinforced base keeps the motor elevated, improving airflow. These materials contribute to a robust, modern, and portable pump design suitable for replacement or new installations.

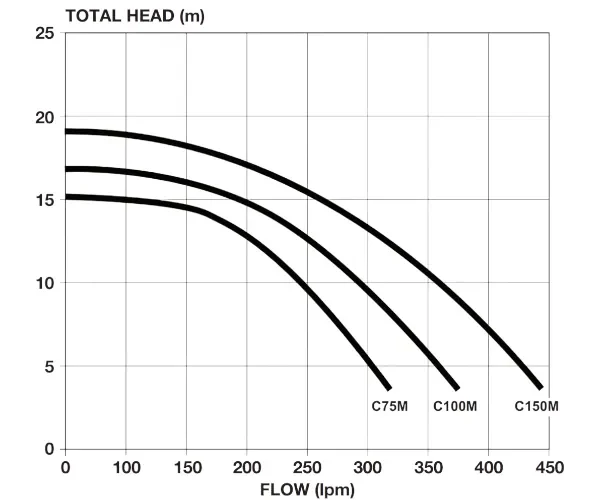

Typhoon Swimming Pool Pump's Hydraulic Performance (Q-H Curve)
Included In The Box
Typhoon Swimming Pool Pump
User Manual
Proof of Purchase
36 Months of Manufacturer Warranty
