Davey's KZN Slurry Pump
Key features:
- Heavy-duty water pump type.
- Suitable for pumping sluge and slurries.
- 12 months warranty for pump & motor.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's KZN Slurry Pump
Heavy duty dewatering
KZN model sump pumps are a commercial, heavy duty, top discharge, dewatering sump pump, designed for pumping very dirty water and farm waste.
Featuring heavy duty inlet agitators, the KZN range is suitable for pumping sludge and slurries. Models in the range:
- DT37KZN – 3.7kW with 3″ outlet
- DT55KZN – 5.5kW with 4″ outlet
- DT55KZN-H – 5.5kW with 3″ outlet
- DT75KZN – 7.5kW with 4″ outlet
- DT75KZN-H – 7.5kW with 4″ outlet
- DT110KZN – 11.0kW with 4″ outlet
- DT110KZN-H* – 11.0kW with 4″ outlet
- DT150KZN – 15.0kW with 6″ outlet
- DT150KZN-L* – 15.0kW with 6″ outlet
- DT220KZN – 22.0kW with 6″ outlet
Applications
Ideal for ground and nuisance water removal, drainage from dams, sewer systems, tunnels, river improvement projects and construction sites. A proven performer pumping muddy liquids and slurries at quarries, mines and industrial projects.
Features And Benefits
Corrosion resistant 410 stainless steel shaft and stainless steel shaft sleeve
- Long service life
- Impact resistant and long lasting
- Easily replaceable shaft sleeves save on shaft wear
Multivane, semi-open, wear resistant, high chrome impeller
- Ability to handle abrasive solid concentrations up to 70% by weight
Pumps have a heavy duty high chrome agitator
- Keeps the flow chamber and impeller clear by causing the solids to move in suspension, preventing the pump from clogging
Double silicon carbide mechanical seals
- Abrasion resistant
- Located in separate oil chamber to protect the motor
- Added protection of a heavy duty lip seal
Top discharge with a motor water jacket
- Slimline design reduces the chance of damage to the outlet in transit
- Allows for pumping within inches of the bottom, without risk of overheating
Hardened ductile iron volute
- Cast with extra thick walls (300 Brinnell hardness) is twice as abrasive resistant as standard ductile cast iron, which ensures greater durability.
Replaceable wear plate
- Hardened surface on suction side inhibits the occurrence of erosion that could cause a reduction in pump performance
Large open strainer
- Protects from larger solids entering the pump
Lifting rings
- For easy lifting and transportation of the pump
Operating Limits
| Operating Limits | |
|---|---|
| Capacities to | 6250 lpm (375m3 /hr) |
| Maximum total head | 36m / 118.11 ft |
| Maximum submergence | 15m / 49.21 ft |
| Maximum pumped water temperature | 40°C / 104°F |
Materials of Construction
| Materials of Construction | |
|---|---|
| Part | Material |
| Motor top and shell | FC200 |
| Pump body | FCD450 hardened ductile iron |
| Suction cover | High (23%) chrome iron |
| Agitator | High (23%) chrome iron |
| Discharge outlet | FC200 cast iron |
| Strainer | Steel (TBA) |
| Impeller | High (23%) chrome iron |
| Lip seal | Nitrile |
| Pump shaft | 410 stainless steel |
| Mechanical seals | Dual silicone carbide |
| Seal and bottom bearing housing | FC200 cast iron |
| Fasteners and plugs | 304SS |
| Power supply leads | High (23%) chrome iron |
Electrical Data
| Electrical Data | ||||||
|---|---|---|---|---|---|---|
| Model | DT37KZN | DT55KZN-H/DT55KZN | DT75KZN-H/DT55KZN | DT110KZN-H/DT110KZN | DT150KZN-L/DT150KZN | DT220KZN-L/DT220KZN |
| Supply voltage | 380-415V / 50Hz / 3 phase | |||||
| Cable length | 20m / 65.62 ft | |||||
| Speed (rpm) | 1450 rpm | |||||
| Insulation class | Class H | |||||
| IP rating | IP 68 | |||||
| Starting | DOL | |||||
| Input power (P1) (kW/HP) | 4.4/5.9 | 6.9/9.25 | 9.75/13.1 | 14/18.8 | 17.6/23.6 | 26.4/35.4 |
| Output power (P2) | 3.7/5 | 5.5/7.5 | 7.5/10.0 | 11.0/15.0 | 15.0/20.0 | 22.0/30.00 |
| Start amps | 50 | 63 | 73 | 103 | 134 | 182 |
| Run amps | 8 | 11.5 | 15.7 | 29.9 | 36.5 | 45.5 |
Suitable Fluids
Water containing soft solids and/or hard solids in suspension, up to 70% by weight. Some wear should be expected with hard solid pumping. Not suitable for explosive or flammable materials or fluids.

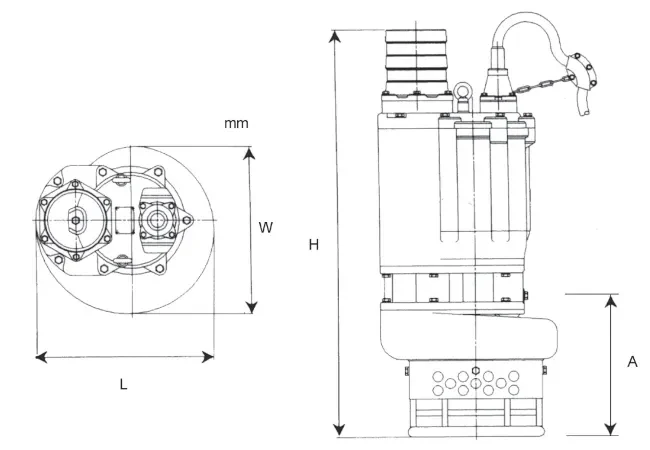

Dimensions (mm)
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Model | “A” minimum submergence | Discharge port | Maximum solids (mm) | Weight (kg) | L (mm) | W (mm) | H (mm) |
| DT37KZN | 285 | 3″ | 20 | 130 | 420 | 410 | 820 |
| DT55KZN-H | 293 | 3″ | 25 | 150 | 420 | 410 | 820 |
| DT55KZN | 4″ | 25 | 150 | 420 | 410 | 820 | |
| DT75KZN-H | 4″ | 25 | 180 | 420 | 410 | 840 | |
| DT75KZN | 4″ | 25 | 180 | 420 | 410 | 840 | |
| DT110KZN-H | 390 | 4″ | 35 | 245 | 565 | 485 | 1100 |
| DT110KZN | 6″ | 35 | 245 | 565 | 485 | 1100 | |
| DT150KZN | 370 | 6″ | 35 | 265 | 565 | 485 | 1100 |
| DT150KZN-L | 6″ | 35 | 265 | 565 | 485 | 1100 | |
| DT220KZN | 414 | 6″ | 35 | 410 | 578 | 543 | 1325 |
| DT220KZN-L | 6″ | 35 | 410 | 578 | 543 | 1325 | |

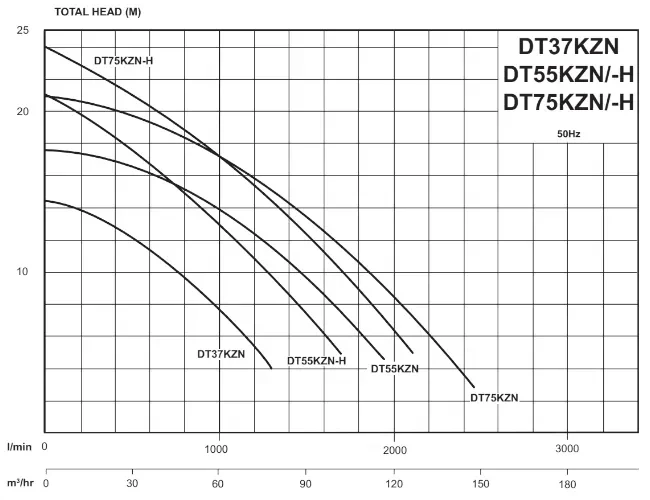

DT37KZN, DT55KZN/-H, & DT75KZN/-H KZN Slurry Pump's Hydraulic Performance

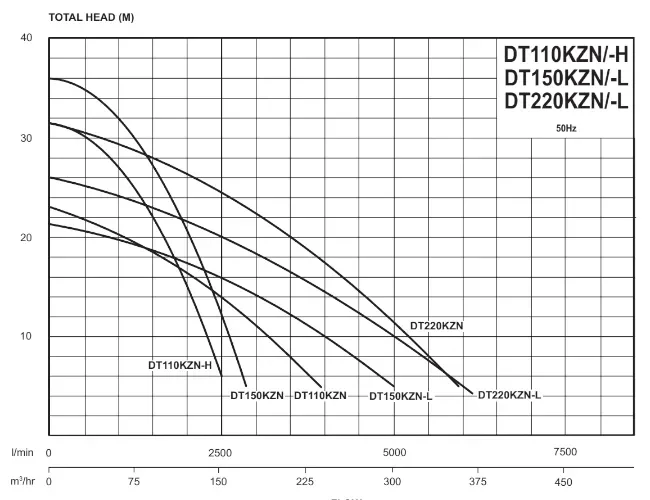

DT110KZN/-H, DT1150KZN/-L, & DT220KZN/-L KZN Slurry Pump's Hydraulic Performance
Included In The Box
KZN Slurry Pump
User Manual
Proof of Purchase
12 Months of Manufacturer Warranty
