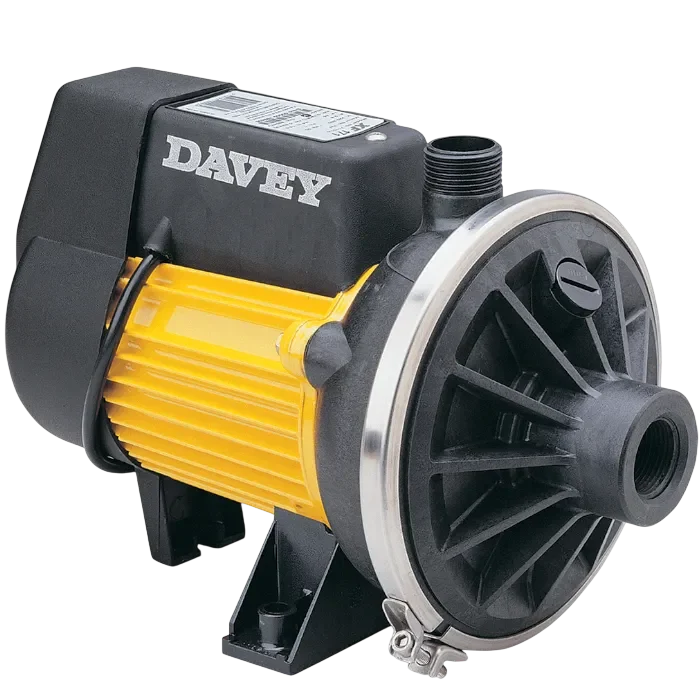

Davey's XF Electric Transfer Pump
Key features:
- Standard automatic pressure system type.
- Suitable for pumping slightly aggressive, non-volatile liquids without fibres or solids.
- For irrigation, aquaculture, hydroponics, water transfer and washdown.
- 24 months warranty for pump & motor.
- Fixed pressure setting on every usage.
- Easy installation, no setting required.
Classified As:
Overview of Davey's XF Electric Transfer Pump
The Davey XF series of Water Transfer Pumps are designed for clean liquid handling across domestic water movement, irrigation, hydrographic, and inter basin transfer project applications. These pumps support portable electric, submersible, and tank transfer systems, which are ideal for house, agriculture, and industrial machine operations.
Models such as the Davey XF171 transfer pump and Davey XF192 centrifugal pump deliver high pressure flow rate, and heavy-duty performance for water play, fluid, and pressure pump applications. With Davey XF’s research and development input, these pumps are optimized for efficiency across single phase, 12V, 240V, and 110V electric systems, making them suitable for small to commercial transfer activities.
In addition, the Davey’s XF Water Transfer Pump is engineered for compatibility with British Standard Pipe, portable hand transfer, and fixed industrial systems.
Transfer Pump Variations
The XF Series consists of four main pump models:
| XF Series |
| XF 92 |
| XF171 |
| XF221 |
| XF192 |
These models support transfer pumps, centrifugal pump, and pressure pump systems for irrigation, water transfer, and hydraulic operations.

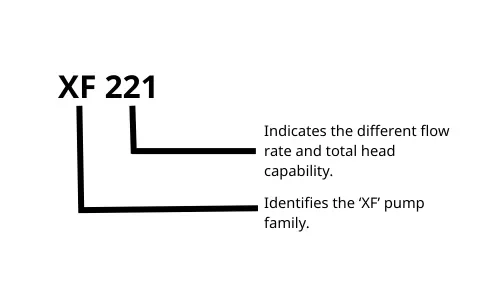

Method of Identification
The first alphabetical prefix of “XF” refers to Davey’s centrifugal surface pump range designed for clean-water transfer applications.
This is the sole representation of the water pump family on its own.
92 / 171 / 221 / 192 indicates the hydraulic performance class of the pump. Different numbers represent different flow rate and total head capabilities, and also distinguish between single-stage and twin-stage models.
Part Number
71401 – XF92 = Single-stage electropump, suitable for small 12V and 240V systems.
71101 – XF171 = Single-stage pump for domestic water transfer and portable electric setups.
71201 – XF221 = Single-stage centrifugal pump for tank transfer and industrial machine systems.
71301 – XF192 = Twin-stage high pressure pump for heavy duty, commercial applications.
These part numbers assist with spare parts ordering, inventory, and service performance.

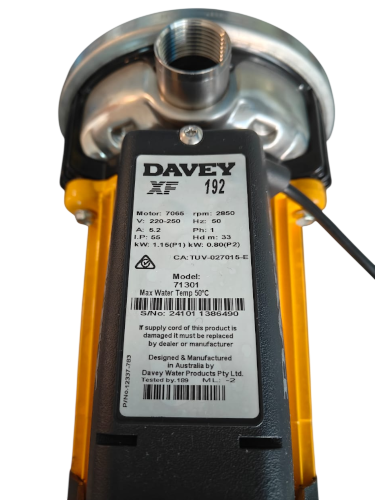

XF Water Transfer Pump's Certification
Consistent production quality is ensured by ISO 9001: Quality Management.
This attests to the fact that all of Davey’s electropumps are manufactured using consistent standards across the supply chain.
Environmental Management (ISO 14001): This demonstrates Davey’s dedication to environmental responsibility, which includes waste management, recycling, environmentally friendly manufacturing methods, effective delivery scheduling, and lowering emissions and environmental impact.
TÜV certification: An internationally recognized, independent, German-based, third-party certification (Technischer Überwachungsverein) that confirms products, services, and management systems meet high safety, quality, and sustainability standards.
With our reliable horizontal centrifugal pumps recognised for TUV SUV, enhances brand reputation, facilitates global market access, and ensures compliance with regulations like CE marking as Davey supplies across the different parts of the world.

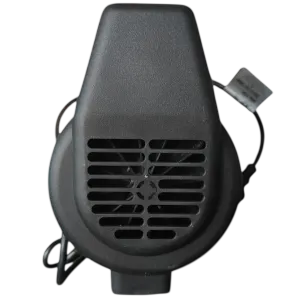

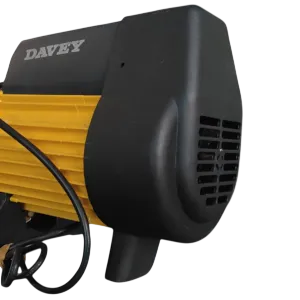

TEFC Motor
The XF Series pump are driven by a Davey-manufactured TEFC electric motor with IP55 enclosure protection.
The motor is corrosion resistant and designed to withstand dust, dirt, and low-pressure water jets.
It features a permanently split capacitor (PSC) design, sealed C3-HTG bearings for quiet operation, and an automatic-reset thermal overload embedded in the motor to protect against overloading caused by voltage variation, high ambient temperature, blockage, or pumping heavier liquids.
Class F insulation is an advanced electrical insulation solution intended for motors, generators, and transformers that can endure a maximum operating temperature of 155°C (311°F).
It provides enhanced thermal stability, being 25°C above that of Class B, and is frequently employed in demanding applications, high-power machinery, and settings with elevated ambient temperatures to avoid overheating and early deterioration.
Priming Plug: The pump is fitted with a priming plug located on the pump casing above the suction inlet.
This feature allows the pump casing and suction line to be manually filled with liquid before start-up.
As the XF Series is a surface mounted centrifugal pump, proper priming is essential to remove trapped air, ensure effective suction, and prevent dry running that could damage the mechanical seal.

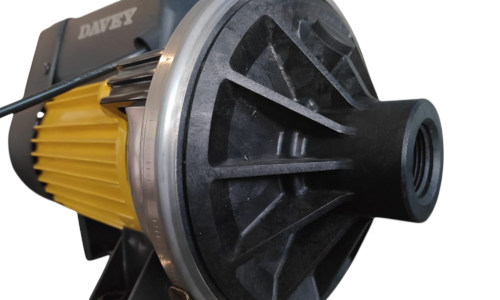

Suction Inlet
All XF Series models use a 1” BSP female inlet.
The pump is capable of operating with maximum suction head of 7.0 to 7.5 meters, depending on model, provided correct installation and priming procedures are followed.
Volute

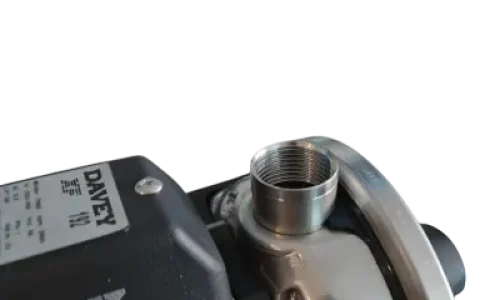

(Volute of XF series in top view where a discharge outlet can be seen)
A volute is the spiral-shaped casing that surrounds the impeller in a Centrifugal pump.
Its main function is to collect the fluid discharged by the rotating impeller and convert the fluid’s velocity into pressure.
As the liquid leaves the impeller, it moves at high speed due to Centrifugal force.

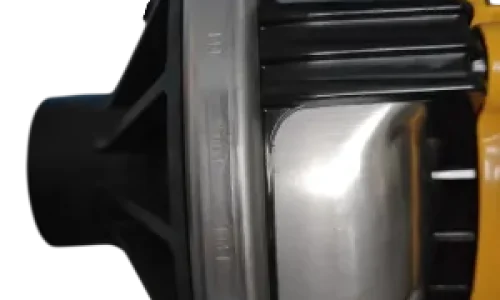

(Volute of XF series from side view. The black enclosure that makes up the water pump’s head has ‘thermotection‘ or thermal protection property where slightly hot liquids may flow into)
The volute’s gradually expanding cross-sectional area slows the fluid down, and this reduction in velocity increases the pressure before the fluid exits through the discharge outlet.
This design helps improve energy conversion efficiency and ensures smoother flow within the pump.
Impellers & Diffusers
Type of Impeller: The XF Series utilizes closed vane impellers manufactured form glass-filled polycarbonate, providing corrosion resistance and efficient hydraulic performance.
The XF92and XF192 models incorporate two impellers (twin-stage design) to achieve higher head, while XF171 and XF221 use a single impeller.
Diffusers are manufactured from glass-filled nori to guide flow and reduce hydraulic losses.
Backplate & Mechanical Seal
The pumps are fitted with a high-quality mechanical shaft seal consisting of a ceramic stationary face and a carbon rotating face, supported by a stainless-steel spring.
This sealing arrangement ensures reliable leak prevention and long service life during continuous operation.
O-Ring & Spacers
Sealing is achieved using nitrile rubber O-rings, which provide good resistance to water and moderate temperatures.
Spacers and blanking rings are manufactured from glass-filled nylon or noryl, ensuring dimensional stability and durability within the pump assembly.
Operating Limits
| Operating Limits | |||||||
| Model | XF92 | XF171 | XF221 | XF192 | |||
| Capacities to | 98 lpm | 175 lpm | 225 lpm | 190 lpm | |||
| Maximum total head | 28m | 17m | 20m | 33m | |||
| Maximum suction head | 7.0m | 7.5m | 7.5m | 7.5m | |||
| Maximum water temperature | 50°C | ||||||
| Minimum water temperature | 1°C | ||||||
| Maximum ambient temperature | 50°C | ||||||
| Inlet size | 1” BSP(F) | ||||||
| Outlet size | 1” BSP(F) | 1” BSP(M) | 1” BSP(M) | 1” BSP(F) | |||

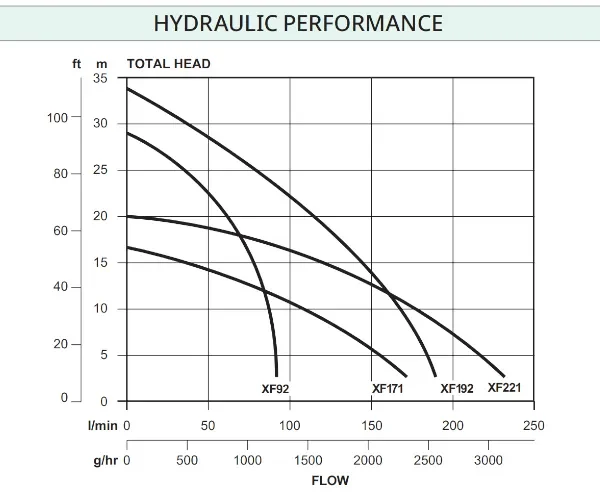

XF Hydraulic Performance & Q-H Curve

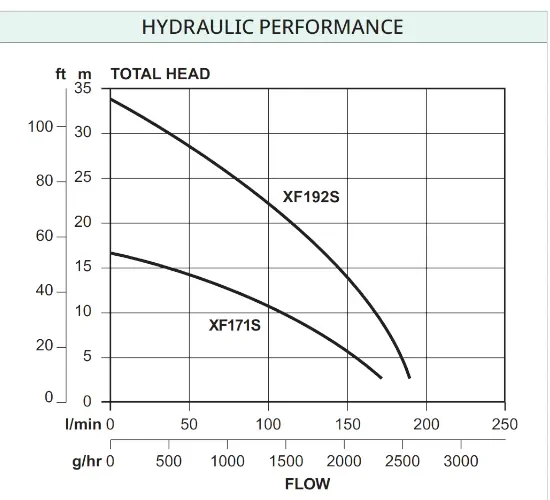

XF171S And XF192S Hydraulic Performance & Q-H Curve
Electrical Data
| Electrical Data | ||||
| Model | XF92 | XF171 | XF221 | XF192 |
| Phase | Single | |||
| Supply voltage | 220-240 ±6% | |||
| Supply frequency | 50Hz | |||
| Speed | 2,850 rpm | |||
| Full load current | 3.7A | 2.8A | 4.5A | 5.2A |
| Locked rotor current | 12.0A | 12.0A | 18.0A | 18.0A |
| Input power (P1) | 0.84kW | 0.78kW | 1.05kW | 1.15kW |
| Output power (P2) | 0.58kW | 0.53kW | 0.70kW | 0.80kW |
| Enclosure | IP55 | |||
| Insulation | Class F | |||
| Starting | P.S.C. | |||
Materials of Construction
| Materials of Construction | |
| Part | Material |
| Impellers (XF92 & XF192have 2) | Glass filled polycarbonate |
| Lock nut | 304 stainless steels |
| Pump casting– XF171 & XF221– XF92 & XF192 | Glass filled noryl304 stainless steels |
| Suction cover | Glass filled noryl |
| Clamp band | 304 stainless steels |
| Pump shaft | 304 stainless steels |
| Seal ring (stationary) | Ceramic |
| Seal ring (rotating) | Carbon |
| Seal spring | 304 stainless steels |
| O-rings | Nitrile rubber |
| Diffusers | Glass filled noryl |
| Blanking ring – XF92 & XF192 | Glass filled noryl |
| Spacer | Glass filled nylon |
| Priming plug | Glass filled noryl |
| Motor shell | Marine grade aluminum |
| Shell finish | Baked polyester |
Included In The Box
XF Electric Transfer Pump
User Manual
Proof of Purchase
24 Months of Manufacturer Warranty
